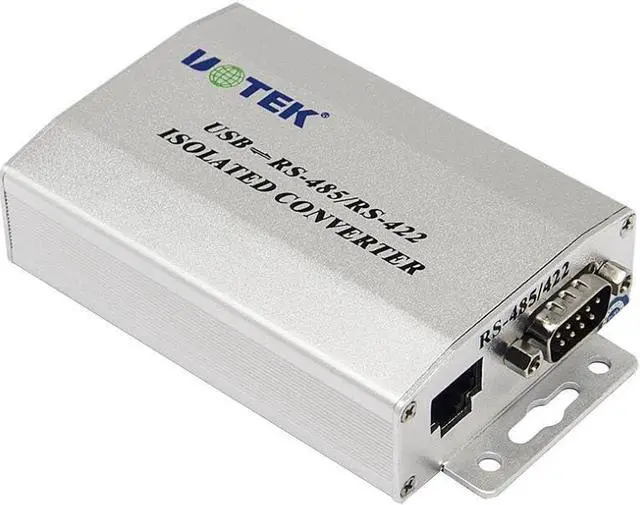

UTEK UT-820E USB to 422/485 Vonverter(1-Port USB to RS-485/422 Serial Converter with ESD Protection)
- Standards: EIA RS-485/422, USB V1.1, compatible with V2.0 USB signal VCCDATA+DATA-GNDFG

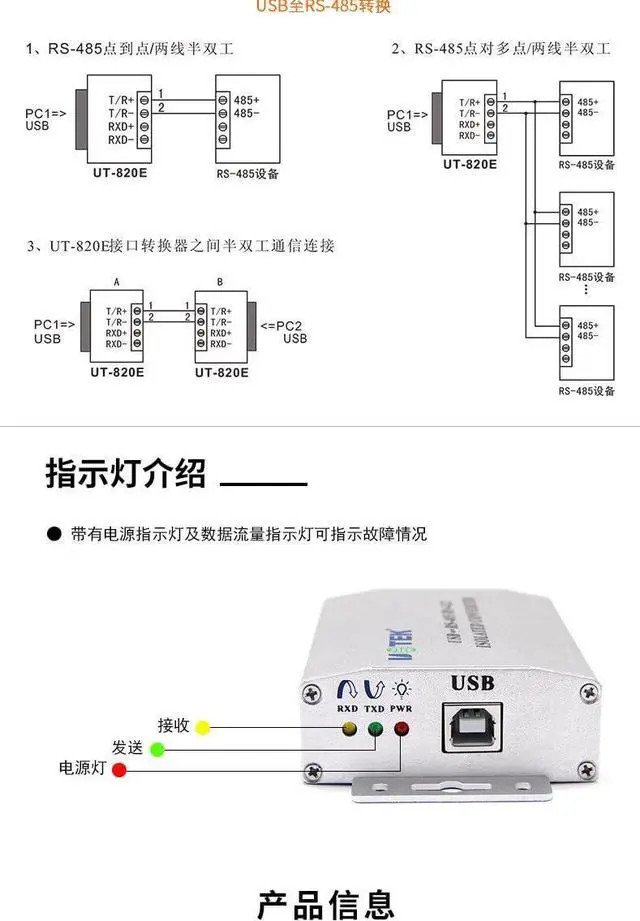

- RS-485 signalT+T-GND RS-422 signalT+T-R+R-GND Working mode: asynchronous, point to point or point to multipoint, 2 wires half duplex, 4 wires full duplex
- Direction control: Adopts data flow direction auto control technology, auto- identification and auto data transmission direction control Baudrate 300-128000bpsauto detection
- Overload capacity: Supports point to multipoint, max. allows to connect with 128 RS-422/485 devices Transmission distance: RS-485/422: 5000m(9600bps)USB: no more than 5m Port protection: 1500W lightning, surge protection, ±15KV ESD protection

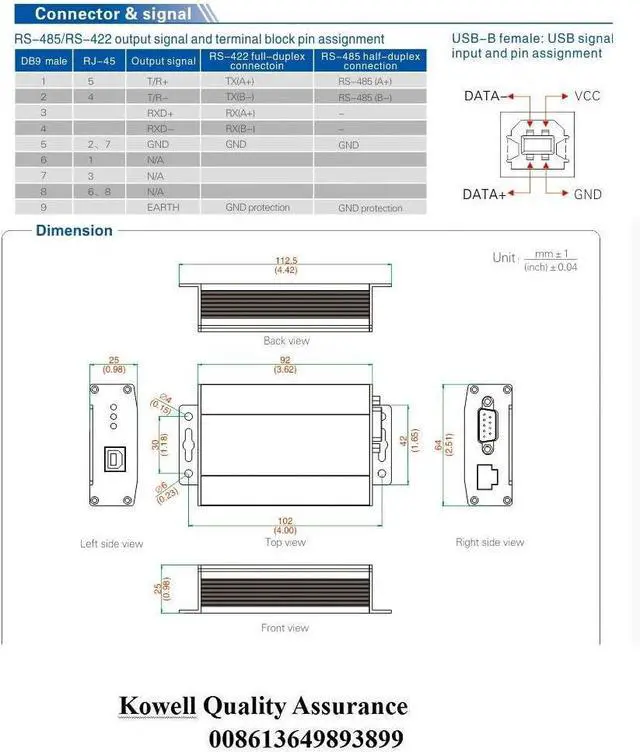

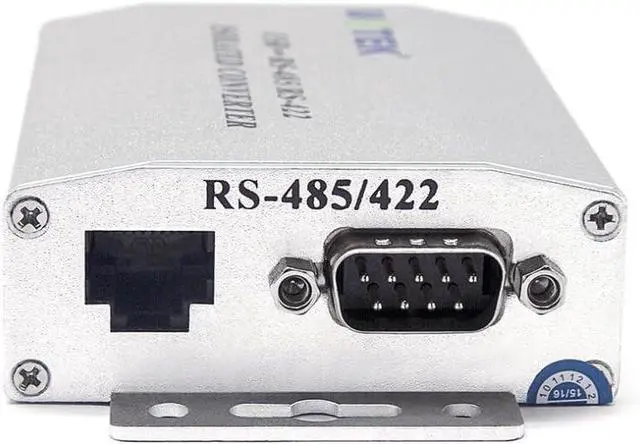

- Ports: USB-B femaleRJ-45 and DB9 male Indicator: PWR, TXD, RXD Transmission media: Twisted pair or shielded cable Transmission rate128,000bps to 300m, 38,400bps to 2.4Km, 9,600bps to 5km
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Standards: EIA RS-485/422, USB V1.1, compatible with V2.0 USB signal VCCDATA+DATA-GNDFG
RS-485 signalT+T-GND RS-422 signalT+T-R+R-GND Working mode: asynchronous, point to point or point to multipoint, 2 wires half duplex, 4 wires full duplex
Direction control: Adopts data flow direction auto control technology, auto- identification and auto data transmission direction control Baudrate 300-128000bpsauto detection
Overload capacity: Supports point to multipoint, max. allows to connect with 128 RS-422/485 devices Transmission distance: RS-485/422: 5000m(9600bps)USB: no more than 5m Port protection: 1500W lightning, surge protection, ±15KV ESD protection
Ports: USB-B femaleRJ-45 and DB9 male Indicator: PWR, TXD, RXD Transmission media: Twisted pair or shielded cable Transmission rate128,000bps to 300m, 38,400bps to 2.4Km, 9,600bps to 5km
RS-485 signalT+T-GND RS-422 signalT+T-R+R-GND Working mode: asynchronous, point to point or point to multipoint, 2 wires half duplex, 4 wires full duplex
Direction control: Adopts data flow direction auto control technology, auto- identification and auto data transmission direction control Baudrate 300-128000bpsauto detection
Overload capacity: Supports point to multipoint, max. allows to connect with 128 RS-422/485 devices Transmission distance: RS-485/422: 5000m(9600bps)USB: no more than 5m Port protection: 1500W lightning, surge protection, ±15KV ESD protection
Ports: USB-B femaleRJ-45 and DB9 male Indicator: PWR, TXD, RXD Transmission media: Twisted pair or shielded cable Transmission rate128,000bps to 300m, 38,400bps to 2.4Km, 9,600bps to 5km
