USB to 8CH RS485 Industrial Grade Isolated Converter, USB Type-C to RS485 Adapter, Black
- Supports USB to 8CH RS485, convenient for expanding multiple RS485 industrial serial devices.
- Supports direct power supply via Type-C port, with reserved 5V~36V DC wide voltage screw terminal for auxiliary power input.
- Onboard unibody power supply isolation, provides stable isolated voltage. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption.
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance.
- Built-in 120R terminal resistor on the RS485 ports, configurable via jumper for flexible switching.
- LEDs for indicating the power, device configuration status and transceiver status. Rail-mount case design, support stackable combination, ea
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features

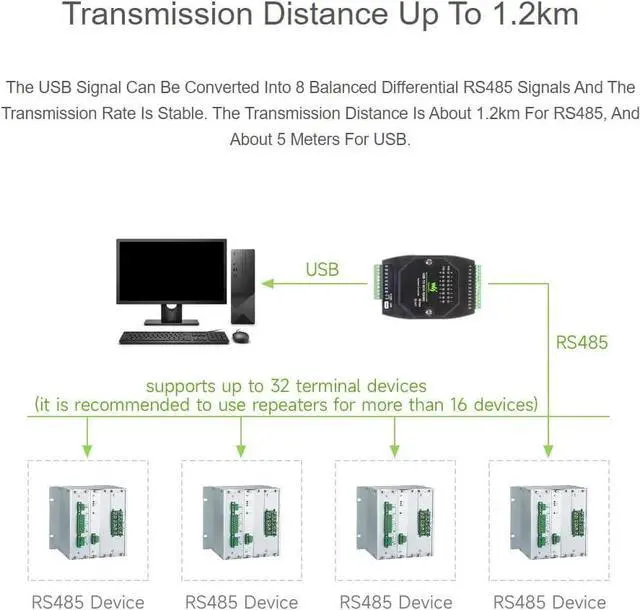

Supports USB to 8CH RS485, convenient for expanding multiple RS485 industrial serial devices.
Supports direct power supply via Type-C port, with reserved 5V~36V DC wide voltage screw terminal for auxiliary power input.

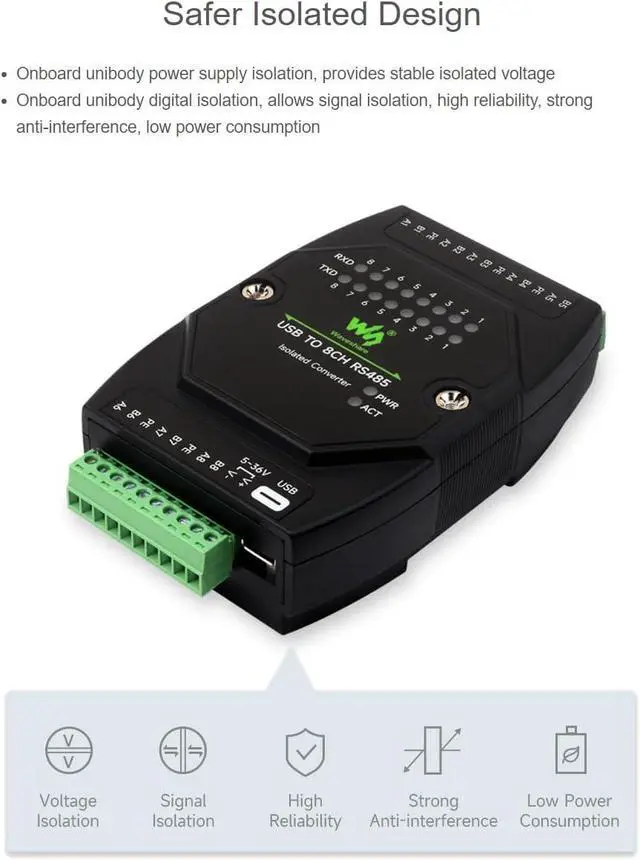

Onboard unibody power supply isolation, provides stable isolated voltage.
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption.

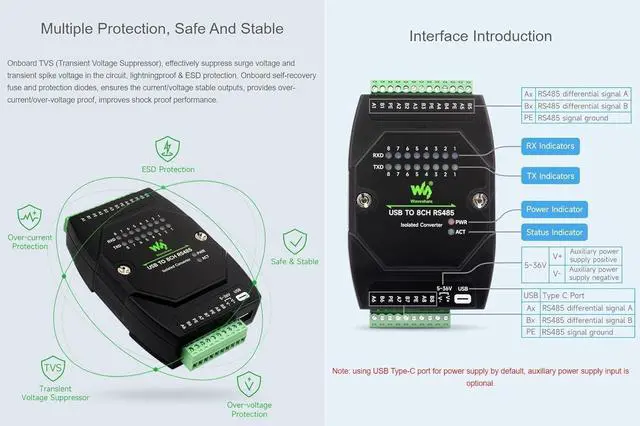

Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic.
Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance.
Built-in 120R terminal resistor on the RS485 ports, configurable via jumper for flexible switching.
LEDs for indicating the power, device configuration status and transceiver status.

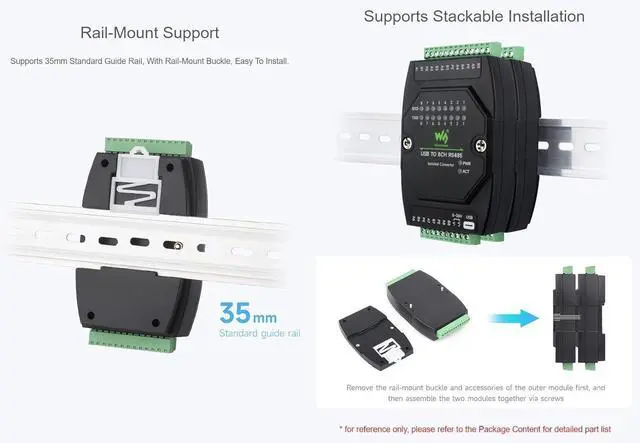

Rail-mount case design, support stackable combination, easy to install and safer to use.

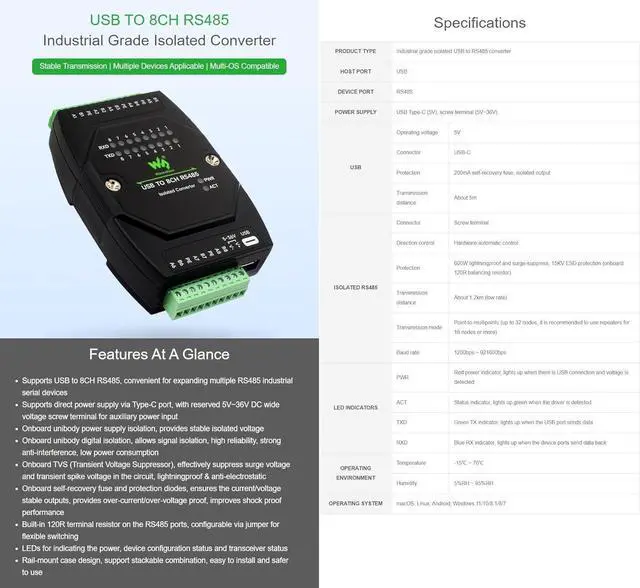

Specifications
PRODUCT TYPE: Industrial grade isolated USB to RS485 converter
HOST PORT: USB
DEVICE PORT: RS485
POWER SUPPLY: USB Type-C (5V), screw terminal (5V~36V)
Temperature: -15 ~ 70
Humidity: 5%RH ~ 95%RH
OPERATING SYSTE: MmacOS, Linux, Android, Windows 11/10/8.1/8/7
PACKAGE CONTENT
1. USB TO 8CH RS485 x1
2. USB-A male to USB-C male cable ~1m x1
3. Screwdriver x1
Supports USB to 8CH RS485, convenient for expanding multiple RS485 industrial serial devices.
Supports direct power supply via Type-C port, with reserved 5V~36V DC wide voltage screw terminal for auxiliary power input.
Onboard unibody power supply isolation, provides stable isolated voltage.
Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption.
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic.
Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance.
Built-in 120R terminal resistor on the RS485 ports, configurable via jumper for flexible switching.
LEDs for indicating the power, device configuration status and transceiver status.
Rail-mount case design, support stackable combination, easy to install and safer to use.
Specifications
PRODUCT TYPE: Industrial grade isolated USB to RS485 converter
HOST PORT: USB
DEVICE PORT: RS485
POWER SUPPLY: USB Type-C (5V), screw terminal (5V~36V)
Temperature: -15 ~ 70
Humidity: 5%RH ~ 95%RH
OPERATING SYSTE: MmacOS, Linux, Android, Windows 11/10/8.1/8/7
PACKAGE CONTENT
1. USB TO 8CH RS485 x1
2. USB-A male to USB-C male cable ~1m x1
3. Screwdriver x1
