CAT5E-W Bulk Ethernet Cable, U/UTP, Bare Copper Conductors, 1000ft, PVC Jacket, HDPE Insulation, CMR Rated, ANSI/TIA-568-C.2 Compliant, White
- Type: Category 5E U/UTP Bulk Cable for high-performance network installations.
- Conductor Material: Bare Copper (BC) with 0.49±0.01 mm diameter for optimal conductivity and durability.
- Insulation: HDPE insulation, 0.89±0.05 mm diameter; average thickness 0.20 mm, minimum 0.18 mm.

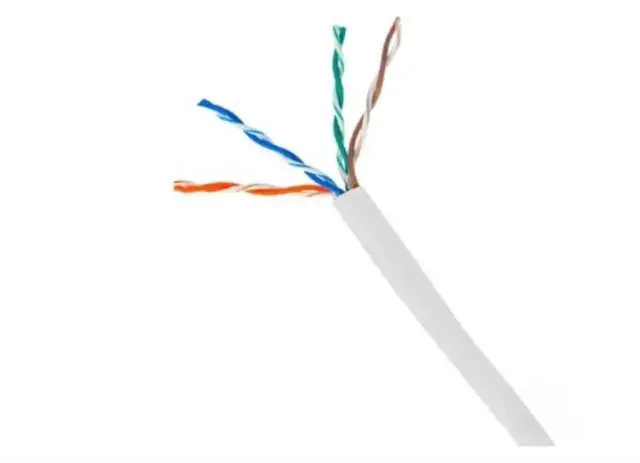

- Color-Coded Pairs: Blue, White/Blue; Orange, White/Orange; Green, White/Green; Brown, White/Brown for accurate pair identification.
- Rip-Cord Included: Integrated rip-cord allows for clean and effortless jacket removal during termination.
- Jacket Material: PVC outer jacket with 5.0±0.3 mm diameter; average thickness 0.50 mm, minimum 0.43 mm.
- Electrical Characteristics: DCR 93.8/km @ 20°C; 100±15 ohm characteristic impedance for high signal quality.
- Temperature Range: Operational range of -20°C to +75°C for indoor network installations.

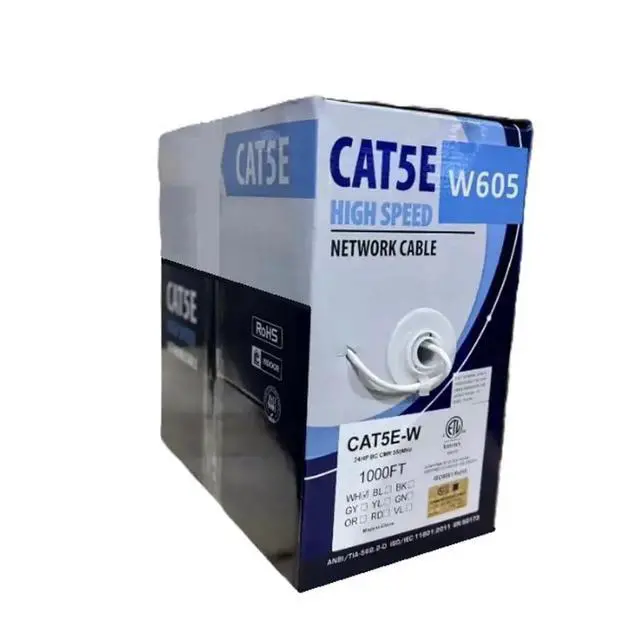

- Length: Supplied in 1000ft spool; white jacket standard, with optional color customization upon request.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The CAT5E-W is a high-quality Category 5E U/UTP bulk Ethernet cable featuring solid bare copper (BC) conductors with a diameter of 0.49±0.01 mm for superior electrical performance and signal integrity. Designed for demanding networking environments, this cable is ideal for structured cabling in commercial, residential, and data center applications. Each conductor is insulated with high-density polyethylene (HDPE), offering 0.89±0.05 mm diameter and 0.20 mm average insulation thickness to ensure proper signal isolation. The cables PVC outer jacket, with a 5.0±0.3 mm diameter and 0.50 mm average thickness, provides flexibility and durability. A built-in rip-cord ensures fast and clean jacket stripping during installation. Compliant with ANSI/TIA-568-C.2 and CMR fire rating, the cable is suitable for vertical runs in building risers. With a characteristic impedance of 100±15 ohms and conductor resistance 93.8/km, the CAT5E-W ensures dependable 1000BASE-T Ethernet connectivity across a wide operating temperature range.
