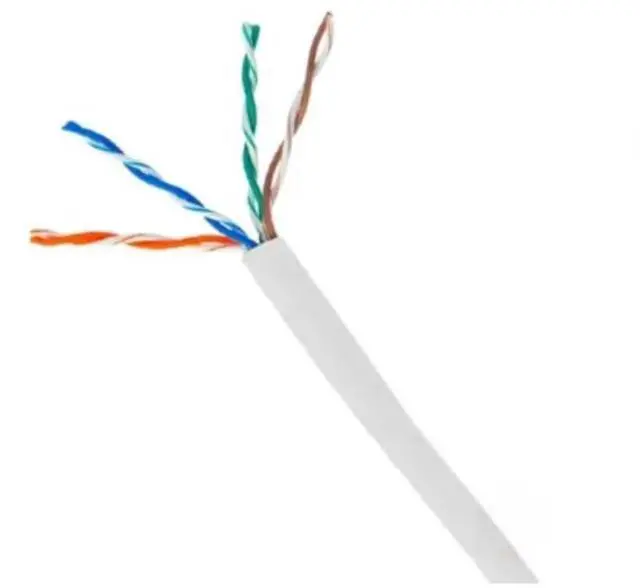

CAT5E-W-2 Bulk Ethernet Cable, U/UTP, CCA Conductors, 1000ft, PVC Jacket, HDPE Insulation, ANSI/TIA-568-C.2 Compliant, White
- Type: Category 5E U/UTP Ethernet Bulk Cable for standard data transmission and structured cabling needs.
- Conductor Material: Copper-Clad Aluminum (CCA), 0.50±0.01 mm diameter for lightweight, economical performance.
- Insulation: High-Density Polyethylene (HDPE) with 0.91±0.05 mm diameter; average thickness 0.20 mm.
- Color-Coded Pairs: Blue, White/Blue; Orange, White/Orange; Green, White/Green; Brown, White/Brown for simplified wiring.
- Jacket Material: Flexible PVC jacket, 5.0±0.3 mm diameter; average thickness 0.50 mm, minimum 0.43 mm.
- Rip-Cord Included: Facilitates easy and clean removal of the outer jacket during installation.
- Electrical Performance: Conductor DCR 161/km at 20°C; 100±15 ohm impedance for reliable signal integrity.
- Temperature Rating: Operational temperature range of -20°C to +70°C for typical indoor installations.

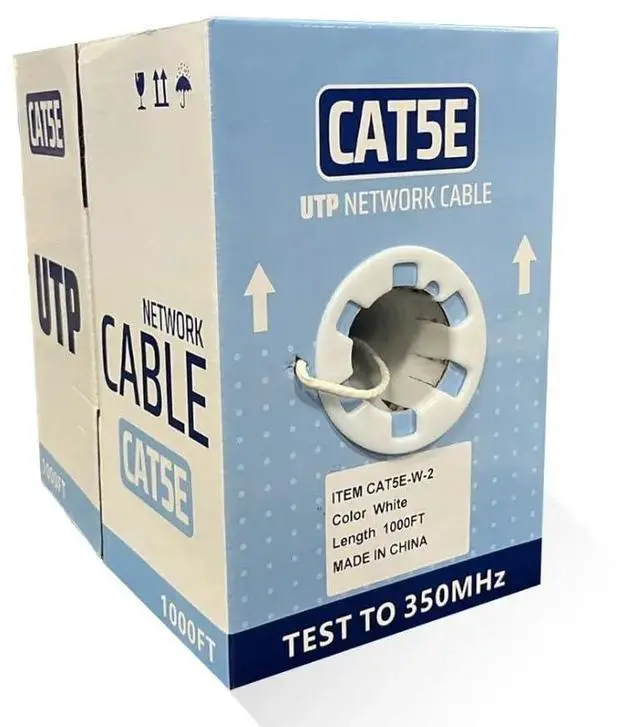

- Length: Supplied in a 1000-foot spool; white jacket standard, with other colors available upon request.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Type: Category 5E U/UTP Ethernet Bulk Cable for standard data transmission and structured cabling needs.
Conductor Material: Copper-Clad Aluminum (CCA), 0.50±0.01 mm diameter for lightweight, economical performance.
Insulation: High-Density Polyethylene (HDPE) with 0.91±0.05 mm diameter; average thickness 0.20 mm.
Color-Coded Pairs: Blue, White/Blue; Orange, White/Orange; Green, White/Green; Brown, White/Brown for simplified wiring.
Jacket Material: Flexible PVC jacket, 5.0±0.3 mm diameter; average thickness 0.50 mm, minimum 0.43 mm.
Rip-Cord Included: Facilitates easy and clean removal of the outer jacket during installation.
Electrical Performance: Conductor DCR 161/km at 20°C; 100±15 ohm impedance for reliable signal integrity.
Temperature Rating: Operational temperature range of -20°C to +70°C for typical indoor installations.
Length: Supplied in a 1000-foot spool; white jacket standard, with other colors available upon request.
Conductor Material: Copper-Clad Aluminum (CCA), 0.50±0.01 mm diameter for lightweight, economical performance.
Insulation: High-Density Polyethylene (HDPE) with 0.91±0.05 mm diameter; average thickness 0.20 mm.
Color-Coded Pairs: Blue, White/Blue; Orange, White/Orange; Green, White/Green; Brown, White/Brown for simplified wiring.
Jacket Material: Flexible PVC jacket, 5.0±0.3 mm diameter; average thickness 0.50 mm, minimum 0.43 mm.
Rip-Cord Included: Facilitates easy and clean removal of the outer jacket during installation.
Electrical Performance: Conductor DCR 161/km at 20°C; 100±15 ohm impedance for reliable signal integrity.
Temperature Rating: Operational temperature range of -20°C to +70°C for typical indoor installations.
Length: Supplied in a 1000-foot spool; white jacket standard, with other colors available upon request.
