CAT5E-G Bulk Ethernet Cable, U/UTP, Solid Bare Copper, 1000ft Pull Box, HDPE Insulation, PVC Jacket, UL Listed, Green, 24AWG, CMR Rated
- Type: Category 5E U/UTP Cable for high-speed Ethernet, voice, and data transmission.
- Conductor Material: Solid Bare Copper (BC), 24AWG, 0.49 mm ±0.01 for high signal fidelity and low resistance.
- Insulation: High-Density Polyethylene (HDPE) insulation with 0.89 mm ±0.05 diameter for enhanced dielectric strength.
- Color-Coded Pairs: Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown for correct pair alignment.
- Jacket Material: Durable PVC outer jacket, 5.0 mm ±0.3 diameter with 0.50 mm average thickness for mechanical protection and easy handling.
- Rip-Cord: Included for fast and efficient cable jacket removal without damaging the internal conductors.
- Electrical Characteristics: Conductor DC Resistance 93.8/km @ 20°C for reliable electrical performance.
- Impedance: 100±15 Ohm nominal characteristic impedance, optimized for data transmission.
- Temperature Rating: Operates in a wide range from -20°C to +75°C for both indoor and semi-industrial use.
- Fire Rati
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Type: Category 5E U/UTP Cable for high-speed Ethernet, voice, and data transmission.
Conductor Material: Solid Bare Copper (BC), 24AWG, 0.49 mm ±0.01 for high signal fidelity and low resistance.
Insulation: High-Density Polyethylene (HDPE) insulation with 0.89 mm ±0.05 diameter for enhanced dielectric strength.

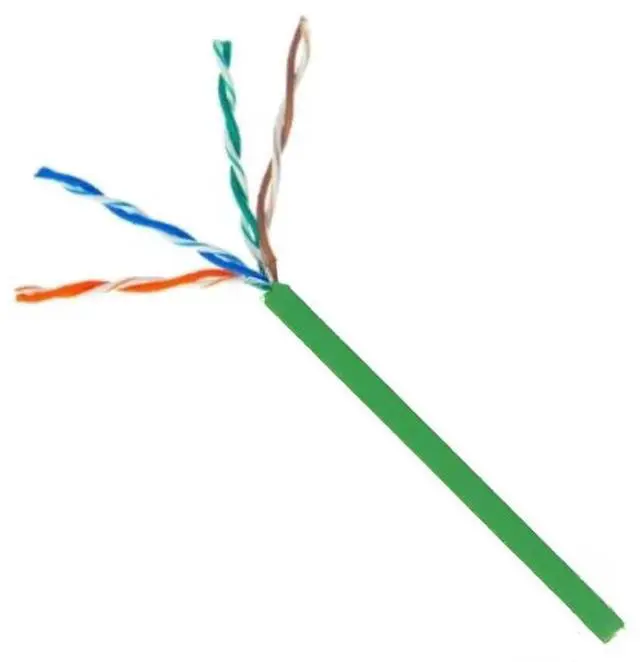

Color-Coded Pairs: Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown for correct pair alignment.
Jacket Material: Durable PVC outer jacket, 5.0 mm ±0.3 diameter with 0.50 mm average thickness for mechanical protection and easy handling.
Rip-Cord: Included for fast and efficient cable jacket removal without damaging the internal conductors.
Electrical Characteristics: Conductor DC Resistance 93.8/km @ 20°C for reliable electrical performance.
Impedance: 100±15 Ohm nominal characteristic impedance, optimized for data transmission.
Temperature Rating: Operates in a wide range from -20°C to +75°C for both indoor and semi-industrial use.
Fire Rating: CMR (riser rated), suitable for vertical runs in building riser shafts.
Conductor Material: Solid Bare Copper (BC), 24AWG, 0.49 mm ±0.01 for high signal fidelity and low resistance.
Insulation: High-Density Polyethylene (HDPE) insulation with 0.89 mm ±0.05 diameter for enhanced dielectric strength.
Color-Coded Pairs: Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown for correct pair alignment.
Jacket Material: Durable PVC outer jacket, 5.0 mm ±0.3 diameter with 0.50 mm average thickness for mechanical protection and easy handling.
Rip-Cord: Included for fast and efficient cable jacket removal without damaging the internal conductors.
Electrical Characteristics: Conductor DC Resistance 93.8/km @ 20°C for reliable electrical performance.
Impedance: 100±15 Ohm nominal characteristic impedance, optimized for data transmission.
Temperature Rating: Operates in a wide range from -20°C to +75°C for both indoor and semi-industrial use.
Fire Rating: CMR (riser rated), suitable for vertical runs in building riser shafts.
