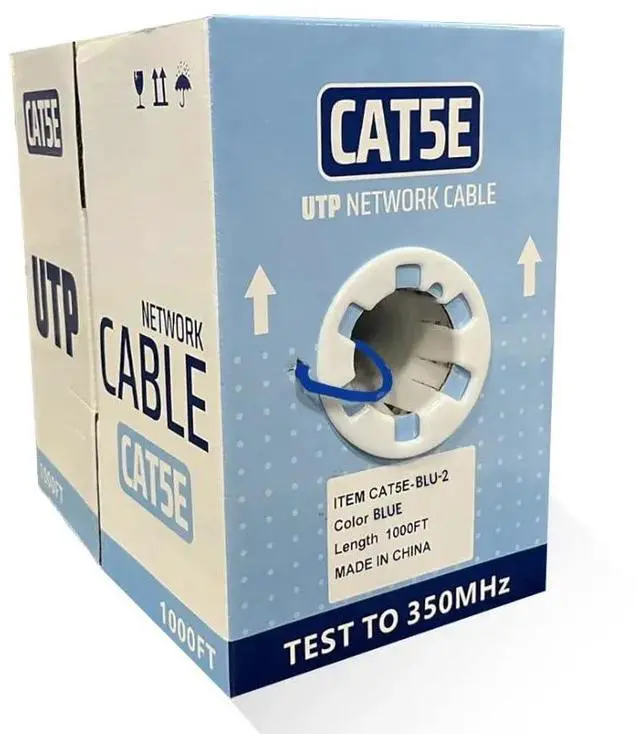

CAT5E-BLU-2 Bulk Ethernet Cable, U/UTP, Solid CCA, 1000ft Pull Box, HDPE Insulation, PVC Jacket, Blue, 24AWG, CMR Rated
- Type: Category 5E U/UTP Cable, ideal for Ethernet, data, and voice over LAN applications.
- Conductor Material: Solid Copper-Clad Aluminum (CCA), 24AWG, 0.50 mm ±0.01 for cost-effective performance.
- Insulation: HDPE insulation with 0.91 mm ±0.05 diameter for low capacitance and high signal integrity.
- Color-Coded Pairs: Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown for simplified pair identification.
- Jacket Material: Durable PVC outer jacket with 5.0 mm ±0.3 diameter, 0.50 mm average thickness for abrasion resistance.
- Rip-Cord: Included for fast, clean, and safe jacket removal without damaging internal conductors.
- Electrical Performance: Conductor DC Resistance 161/km @ 20°C, suitable for short-to-medium distance applications.
- Impedance: 100±15 Ohm characteristic impedance for optimized data transmission.
- Temperature Rating: Operational range from -20°C to +70°C for indoor and controlled environments.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

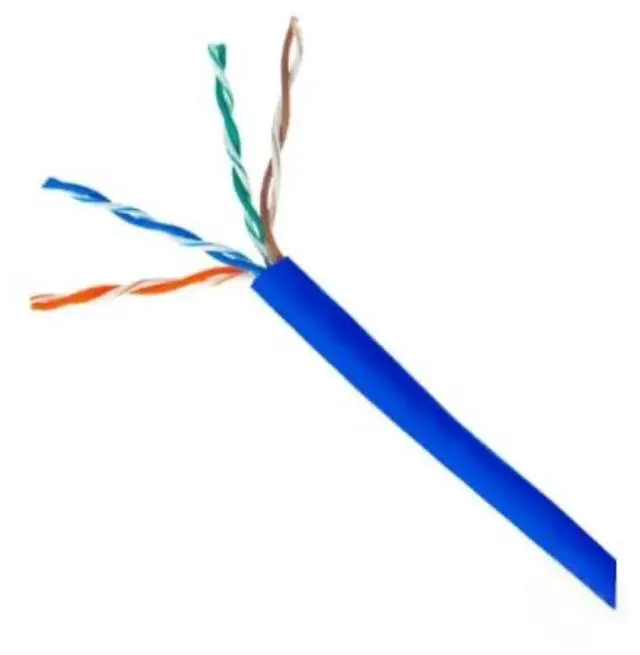

Type: Category 5E U/UTP Cable, ideal for Ethernet, data, and voice over LAN applications.
Conductor Material: Solid Copper-Clad Aluminum (CCA), 24AWG, 0.50 mm ±0.01 for cost-effective performance.
Insulation: HDPE insulation with 0.91 mm ±0.05 diameter for low capacitance and high signal integrity.
Color-Coded Pairs: Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown for simplified pair identification.
Jacket Material: Durable PVC outer jacket with 5.0 mm ±0.3 diameter, 0.50 mm average thickness for abrasion resistance.
Rip-Cord: Included for fast, clean, and safe jacket removal without damaging internal conductors.
Electrical Performance: Conductor DC Resistance 161/km @ 20°C, suitable for short-to-medium distance applications.
Impedance: 100±15 Ohm characteristic impedance for optimized data transmission.
Temperature Rating: Operational range from -20°C to +70°C for indoor and controlled environments.
Conductor Material: Solid Copper-Clad Aluminum (CCA), 24AWG, 0.50 mm ±0.01 for cost-effective performance.
Insulation: HDPE insulation with 0.91 mm ±0.05 diameter for low capacitance and high signal integrity.
Color-Coded Pairs: Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown for simplified pair identification.
Jacket Material: Durable PVC outer jacket with 5.0 mm ±0.3 diameter, 0.50 mm average thickness for abrasion resistance.
Rip-Cord: Included for fast, clean, and safe jacket removal without damaging internal conductors.
Electrical Performance: Conductor DC Resistance 161/km @ 20°C, suitable for short-to-medium distance applications.
Impedance: 100±15 Ohm characteristic impedance for optimized data transmission.
Temperature Rating: Operational range from -20°C to +70°C for indoor and controlled environments.
