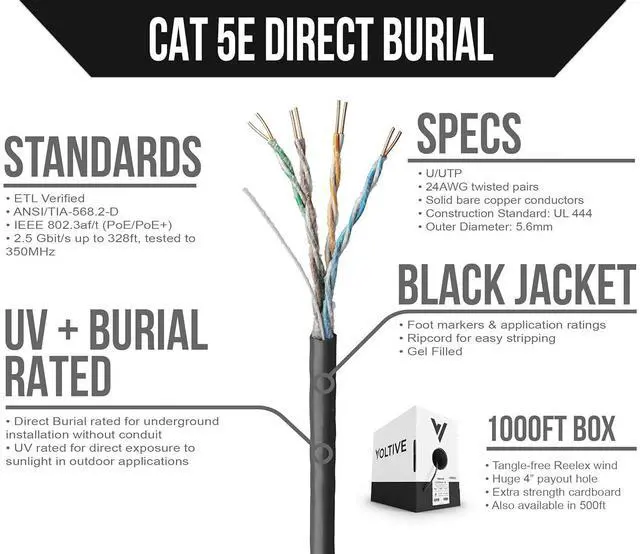

Voltive Cat5e Direct Burial, Gel Filled, 1000ft, Black - UV Resistant - Solid Bare Copper Bulk Ethernet Cable - UTP - 350MHz - UL Certified & ETL Verified
- CAT 5E NETWORK CABLE. 24 gauge, 4 pair, solid copper conductors, unshielded (UTP). 1 Gigabit and 2.5 Gigabit speeds up to 328ft. ETL Verified. Tested to 350MHz. PoE, PoE+, & 4PPoE/PoE++.

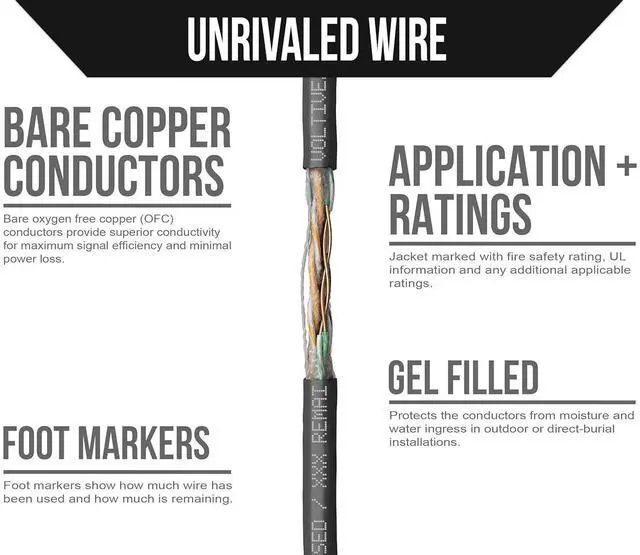

- OXYGEN-FREE COPPER. Oxygen-free copper (OFC) conductors result in less signal loss and are more durable than conductors made of copper-clad aluminum (CCA).
- DIRECT BURIAL & UV RATED. Gel filled with a sunlight resistant outer jacket for outdoor and in-ground installation without conduit.
- STANDARDS. Performance (ETL Verified): ANSI/TIA-568.2-D, ISO/IEC 11801-1, IEC 61156-5. Power over Ethernet: IEEE 802.3af/at. Construction: UL 444, CSA 22.2 No. 214, RoHS.
- TIME SAVING FEATURES. Patented winding technology & massive payout hole eliminate kinks and tangles. Reinforced handles, super-durable cardboard, & water resistant coating keep the box intact. Jacket features ripcord, UL information, re-order part number, and foot markers.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Supports 1 & 2.5 Gbit/s speeds up to 328ft.
Alternatives:
Upgrade to Cat 6 for applications that require 5 Gbit/s up to 328ft or 10 Gbit/s speeds up to 180ft.

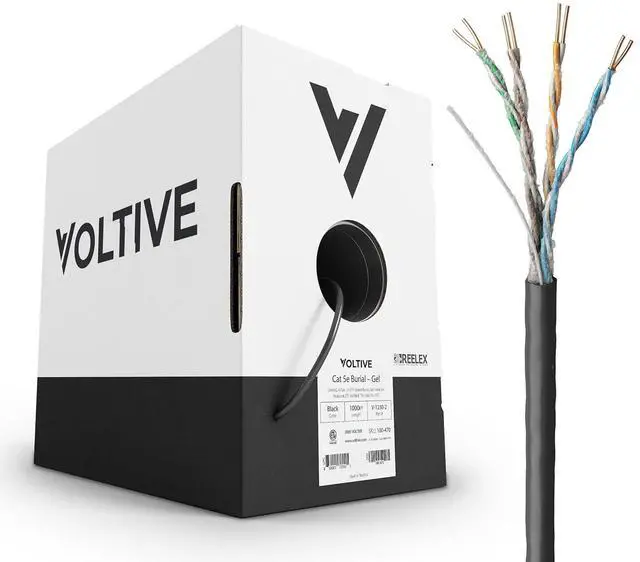

Cables packaged in our pull box feature a proprietary winding pattern and huge 4" payout hole which ensure the cable pays out straight, without kinks or snags.

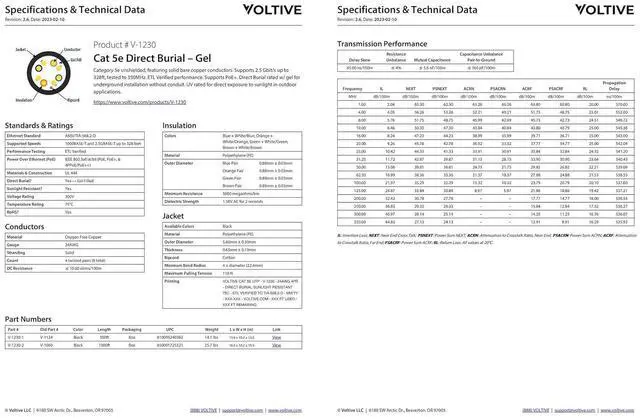

Transmission PerformanceCategory 5e ANSI/TIA-568.2-DBandwidth1000BASE-T and 2.5GBASE-T up to 328 feet, sweep tested to 350MHzPower over Ethernet (PoE)IEEE 802.3af/at/bt (PoE, PoE+, & 4PPoE/PoE++)Fire Ratingn/aUV Rated?YesDirect Burial Rated?YesTemperature Rating75°CVoltage Rating300VConductors24AWG Solid Bare CopperShielded?No U/UTPSpline (Internal Separator)?NoInsulation ColorsTIA Standard: Blue + White/Blue, Orange + White/Orange, Green + White/Green, Brown + White/BrownMax. Insulation Diameter0.89mmJacket Diameter5.6mmAdditional SpecificationsSee PDF data sheet below for full specifications Selecting the Right Cable for Your Project Category 5e Time Saving Features Patented Payout System Standards Compliant Detailed Specifications
Alternatives:
Upgrade to Cat 6 for applications that require 5 Gbit/s up to 328ft or 10 Gbit/s speeds up to 180ft.
Cables packaged in our pull box feature a proprietary winding pattern and huge 4" payout hole which ensure the cable pays out straight, without kinks or snags.
Transmission PerformanceCategory 5e ANSI/TIA-568.2-DBandwidth1000BASE-T and 2.5GBASE-T up to 328 feet, sweep tested to 350MHzPower over Ethernet (PoE)IEEE 802.3af/at/bt (PoE, PoE+, & 4PPoE/PoE++)Fire Ratingn/aUV Rated?YesDirect Burial Rated?YesTemperature Rating75°CVoltage Rating300VConductors24AWG Solid Bare CopperShielded?No U/UTPSpline (Internal Separator)?NoInsulation ColorsTIA Standard: Blue + White/Blue, Orange + White/Orange, Green + White/Green, Brown + White/BrownMax. Insulation Diameter0.89mmJacket Diameter5.6mmAdditional SpecificationsSee PDF data sheet below for full specifications Selecting the Right Cable for Your Project Category 5e Time Saving Features Patented Payout System Standards Compliant Detailed Specifications
