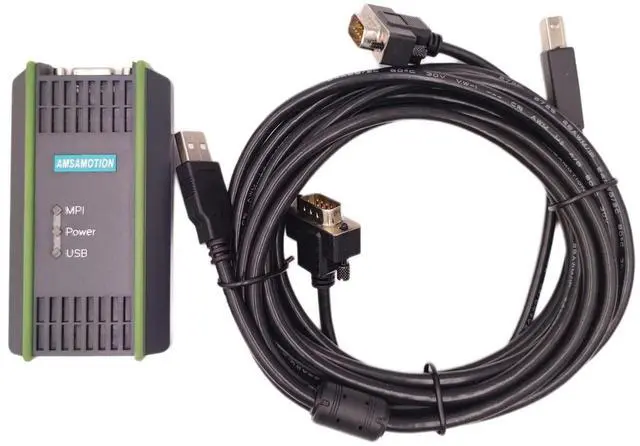

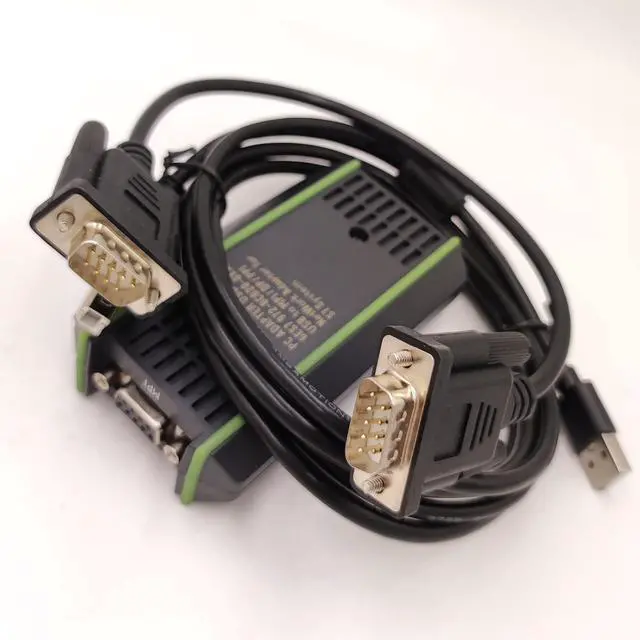

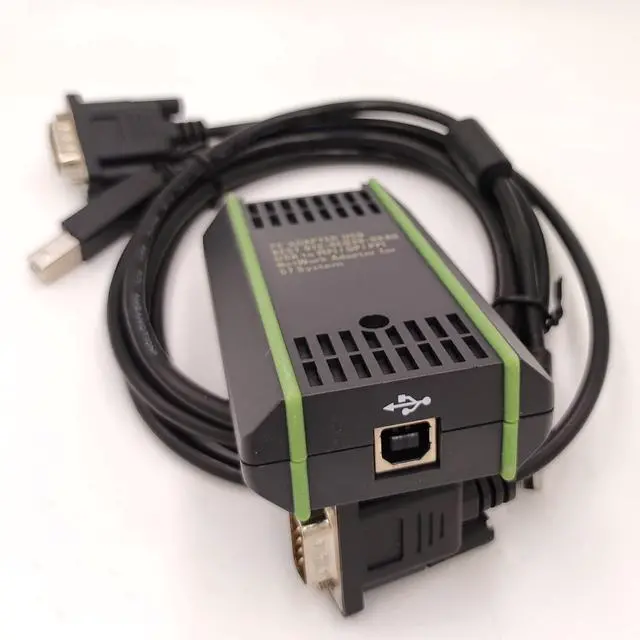

0CB20 PLC Programming Cable for S7 200 300 400, for TP Touch Screen, USB Touch Panel Programming Cable, Isolated Interface, for 6ES7972-0CB20-0XA0 Replacement, New
- Application scenes:To transfer the program/data between computer and Siemens PLC S7 200 /300/400/ET200, OP/TP touch panel. Support the programming of 840D CNC system.
- 6ES7972-0CB20-0XA0 is optical isolation for industrial design in USB port and RS485 ports are equipped with surge protection and lightning protection circuitry for Siemens S7-300 / 400 and S7-200 series PLC full range PLC. Particularly suitable for interferences fragile industrial field communication port, the circuit in a variety of protective measures to ensure the safe operation of the system.
- MPI baud rate 19.2Kbps, 187.5 Kbps. PPI baud rate 9.6Kbps, 19.2Kbps, 187.5Kbps. The MPI port automatically adapts to the communication rate of 19.2Kbps and 187.5Kbps, 500Kbps, 1.5M Kbps DP master communication.
- Features and technical indicators: software version STEP7 V5.2 and above, STEP7 Micro /Win 4.0 and above. Support Windows 98/XP/Vista/2000/7/8/10/11.
- Photoelectric isolator: The device is also called a photocoupler, o
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Summary:
1.This USB-PLC programming cable is the ideal replacement of 6ES7972-0CB20-0XA0.
2.Its the newest USB to Profibus/DP or USB to MPI adapter for programming Siemens 300/400 CPU. (3 in 1) DP/PPI/MPI protocols integrated in 1 USB adapter cable,
3.For transfering the program/data between computer and PLC S7 200 /300/400/ET200, OP/TP touch panel.
4.Support the programming of 840D CNC system.
5.USB to RS485/DP/PPI/MPI programming cable, USB male to DB9 male adapter, With LED communication indicators.
6.High speed up to 187.5kbps.
7.No driver installation required for STEP 7 V5.5 and above.
8.Support Windows 98/XP/Vista/2000/7/8/10/11.
9.Safety and protection: The desktop and PLC are optically isolated by the embedded optical coupler. PTC self recovery fuse is used to protect the internal circuit under overvoltage, overcurrent and short circuit. The shell has soft rubber protection, anti pressure and anti falling.
10.Operate 99% performance of the original one.
11.Programming software : STEP7 Micro/WIN V3.2 and above
12.Compatible with: USB V1.1 and USB V2.0
13.UART data format, data bit: 8, stop bit: 1 and 2, parity bit: odd/even/no parity
14.Converter Cable: USB to RS485/DP/PPI/MPI programming cable, USB male to DB9 male adapter, With LED communication indicators. Up to 187.5kbps.
Product Details:
Model: 0CB20 compatible (6ES7 972-0CB20-0XA0)
Interface: USB-9 pin male
System: Perfect support for XP WIN7 VISTA
Complete set: packing box + adapter + standard wiring
Purpose: Support PPI/MP and DP multi-master communication, used for Siemens S7200/300/400 and department touch (TP170/177/270, OP25/35/77, MP177/270/277B, etc.)
Important Note:
No driver installation is required for STEP 7 V5.5 to work with this cable, in other words, for Step7 V5.5 or above version, the driver is built in theprogramming software.
1.This USB-PLC programming cable is the ideal replacement of 6ES7972-0CB20-0XA0.
2.Its the newest USB to Profibus/DP or USB to MPI adapter for programming Siemens 300/400 CPU. (3 in 1) DP/PPI/MPI protocols integrated in 1 USB adapter cable,
3.For transfering the program/data between computer and PLC S7 200 /300/400/ET200, OP/TP touch panel.
4.Support the programming of 840D CNC system.
5.USB to RS485/DP/PPI/MPI programming cable, USB male to DB9 male adapter, With LED communication indicators.
6.High speed up to 187.5kbps.
7.No driver installation required for STEP 7 V5.5 and above.
8.Support Windows 98/XP/Vista/2000/7/8/10/11.
9.Safety and protection: The desktop and PLC are optically isolated by the embedded optical coupler. PTC self recovery fuse is used to protect the internal circuit under overvoltage, overcurrent and short circuit. The shell has soft rubber protection, anti pressure and anti falling.
10.Operate 99% performance of the original one.
11.Programming software : STEP7 Micro/WIN V3.2 and above
12.Compatible with: USB V1.1 and USB V2.0
13.UART data format, data bit: 8, stop bit: 1 and 2, parity bit: odd/even/no parity
14.Converter Cable: USB to RS485/DP/PPI/MPI programming cable, USB male to DB9 male adapter, With LED communication indicators. Up to 187.5kbps.
Product Details:
Model: 0CB20 compatible (6ES7 972-0CB20-0XA0)
Interface: USB-9 pin male
System: Perfect support for XP WIN7 VISTA
Complete set: packing box + adapter + standard wiring
Purpose: Support PPI/MP and DP multi-master communication, used for Siemens S7200/300/400 and department touch (TP170/177/270, OP25/35/77, MP177/270/277B, etc.)
Important Note:
No driver installation is required for STEP 7 V5.5 to work with this cable, in other words, for Step7 V5.5 or above version, the driver is built in theprogramming software.
