Multifunction BGA48 BGA63 Adapter for T48 Programmer Research Team and Repair Technicians 0.8mmPitch Easy to Use

Features:
Original BGA48 - DIP48 BGA63 - DIP48 two in 1Adapter set IC Socket ADPBGA48-E001 ADPBGA63-E001 only can works on for T48 programmer;
This is the special BGA48 / BGA63 two-in-1 adapter set for T48 programmer.
Please note:
This adapter only can works on for T48 programmer, other programmers cannot use it!
Self-developed high-precise mould to create a high stability, longer life
Please note:
The prices of the probes is more than 10 times the prices of the elastics steel clip, the probes is generally only used in high-end test holder!
Advantages of probes holders:
Reliability , long service life of the probes, theoretically up to 100,000 times.High positioning accuracy, the chip can be tested with or without balls implantation.Probes can be replaced by yourself, which can greatly reduce the user's cost of use.Self-developed high-precise mould production, very high cost-effective

Specifications:
Component:
Only can works on for T48 Programmer

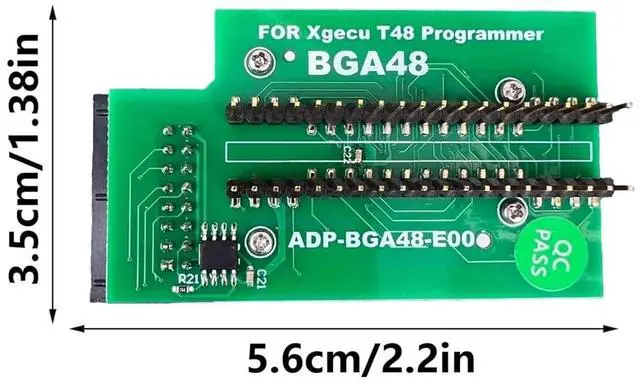

Size:Approx.5.6x3.50cm/2.2x1.38inch
BGA48 package chip.
Applicable IC Size: 6x8MM, 6.15x8.15MM, 6.5x8MM
Pitches:0.8MM

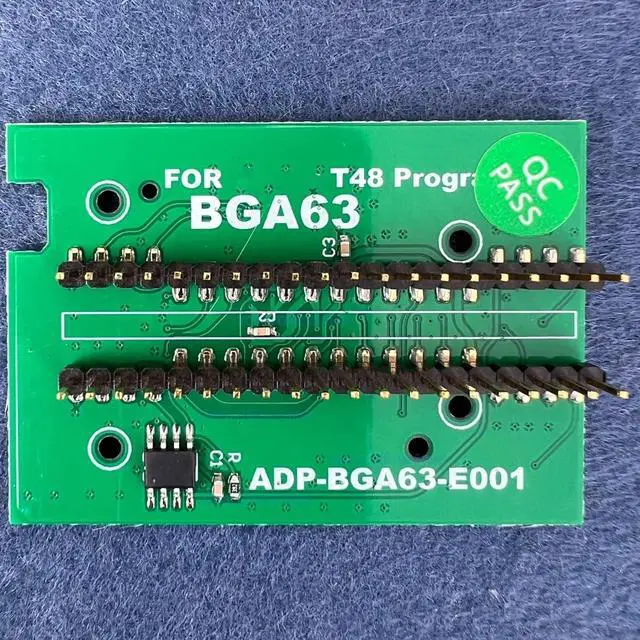

BGA63 package chip.
Applicable IC Size:9x11MM, 10.5x13MM
Pitches:0.8MM

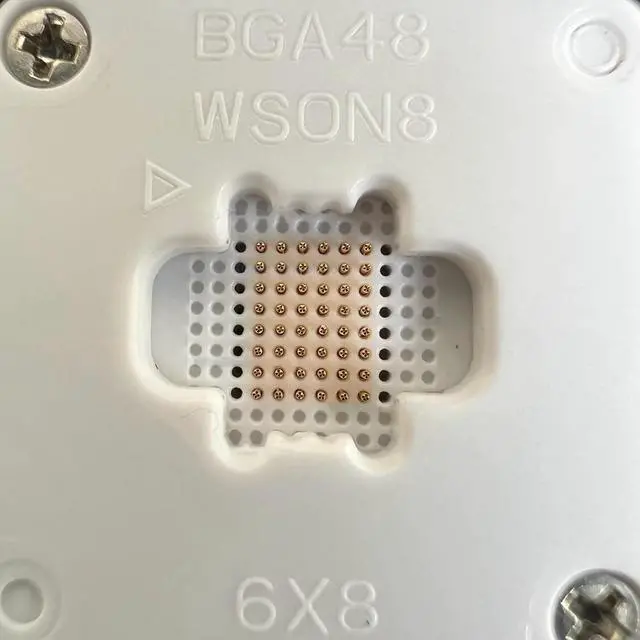

with Double Head Spring-loaded test Probes Holder
Probes replaceable

note:
Please allow 1mm errors due to manual measurement.
Due to the differences between different monitors, the picture may not reflect the actual item color.

Package Includes:

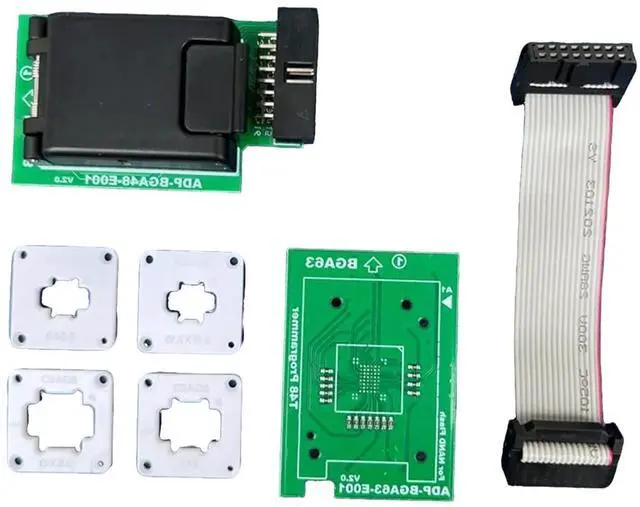

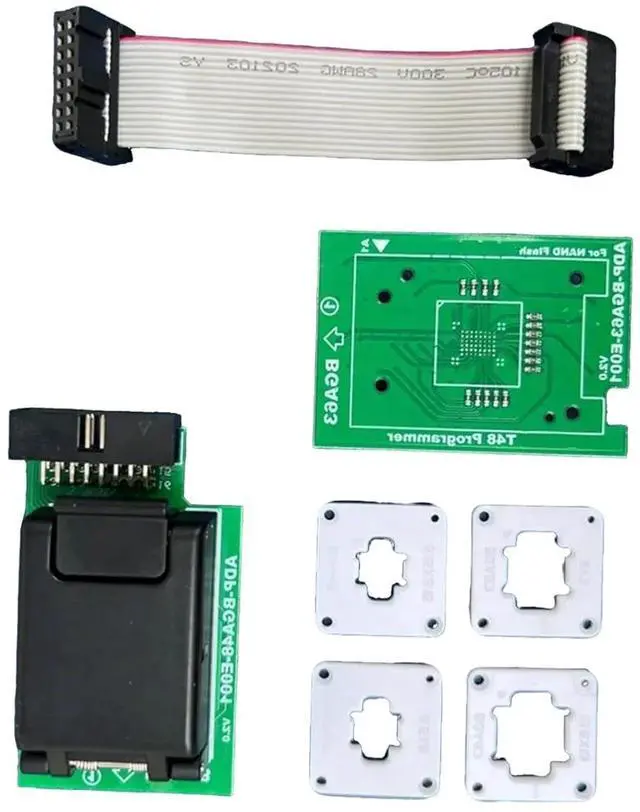

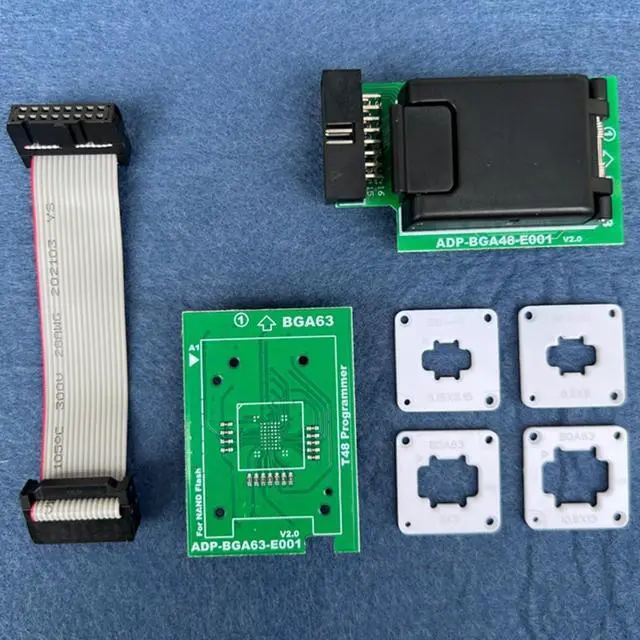

1set BGA48 BGA63 Adapter
