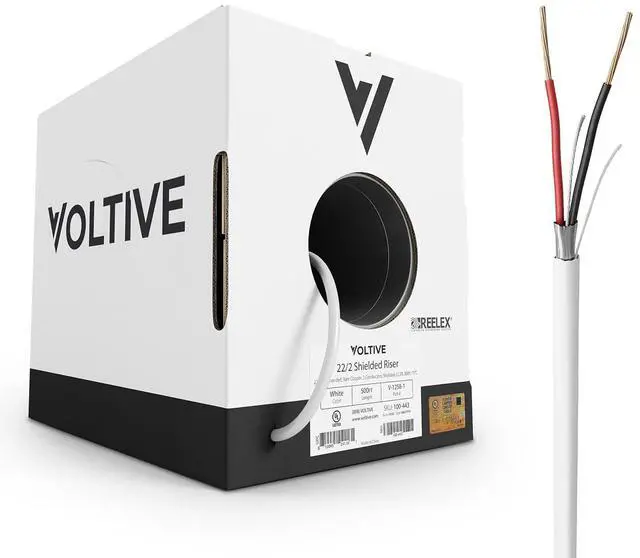

Voltive 22/2 Shielded Riser - CL3R Rated - Bare Copper - 500 Foot Box - White

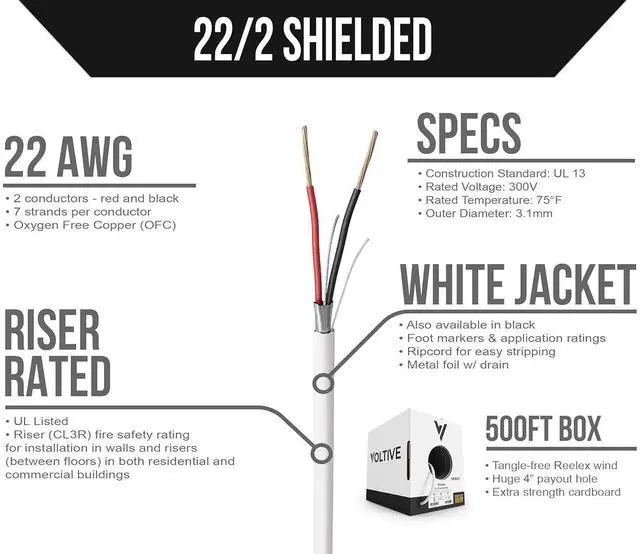

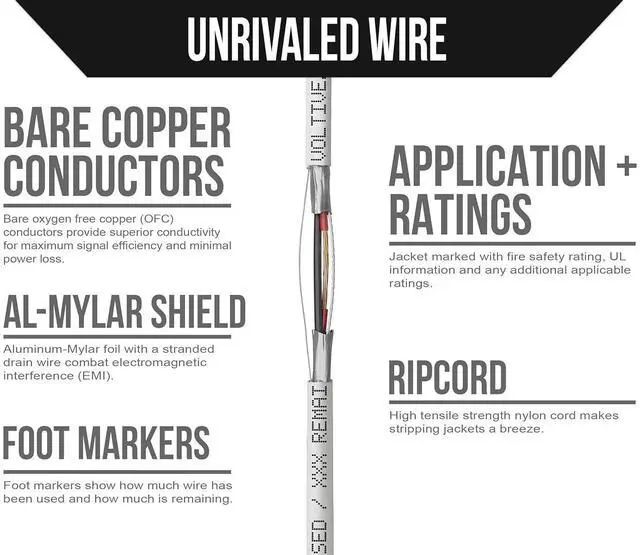

- 22AWG, 2 CONDUCTORS, SHIELDED, WHITE JACKET, 500FT BOX. 22 gauge wire with stranded bare copper conductors, aluminum & mylar foil shield w/ drain wire, and cotton ripcord.
- OXYGEN-FREE COPPER. Oxygen-free copper (OFC) conductors result in less signal loss and are more durable than conductors made of copper-clad aluminum (CCA).
- CL3R RATED. Riser (CL3R) fire safety rating for installation in walls and risers (between floors) in both residential and commercial buildings. UL Listed.
- TIME SAVING FEATURES. Patented winding technology & massive payout hole eliminate kinks and tangles. Reinforced handles, super-durable cardboard, & water resistant coating keep the box intact. Jacket features ripcord, UL information, re-order part number, and foot markers.
- GENERAL PURPOSE WIRE. Suitable for any low voltage application that requires stranded 22 gauge wire with 2 conductors and shield.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
22 AWG stranded bare copper conductors. Conductor resistance: 55.4 ohms/km.
Alternatives:
Upgrade to 18 gauge for applications which require resistance less than 55.4 ohms/km.
Cables packaged in our pull box feature a proprietary winding pattern and huge 4" payout hole which ensure the cable pays out straight, without kinks or snags.

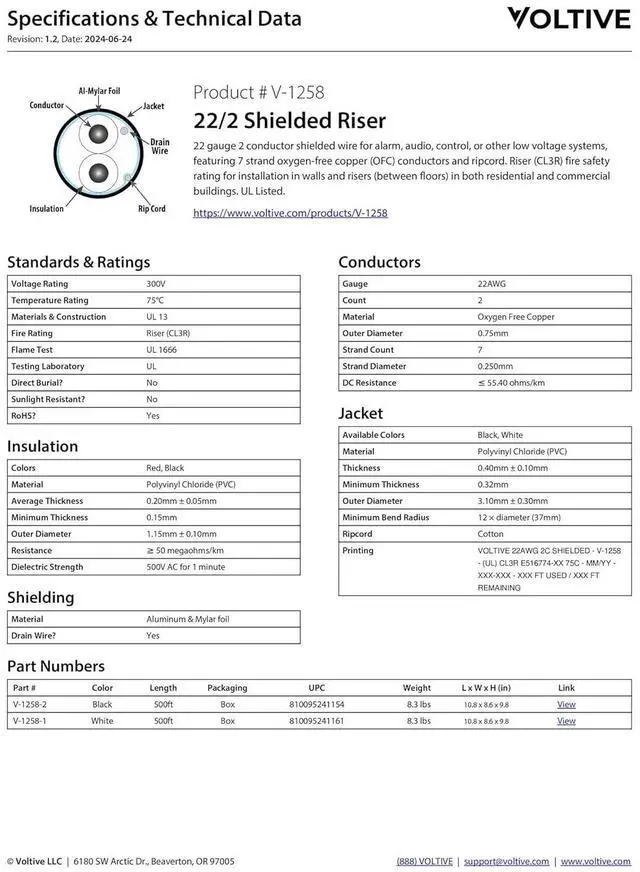

Model NumberV-1258Conductor Gauge & Material22AWG Bare CopperConductor Count2Conductor Stranding7/0.25mmConductor Max Resistance55.4 ohms/km @ 20°CInsulation ColorsRed, BlackInsulation MaterialPolyvinyl Chloride (PVC)Insulation Outer Diameter1.15mmJacket MaterialPolyvinyl Chloride (PVC)Jacket Outer Diameter3.1mmShielded?YesFire RatingCL3R (Riser)Direct Burial Rated?NoUV Rated?NoVoltage Rating300VTemperature Rating75°C Selecting the Right Cable for Your Project 22 Gauge Time Saving Features Patented Payout System Standards Compliant Detailed Specifications
Alternatives:
Upgrade to 18 gauge for applications which require resistance less than 55.4 ohms/km.
Cables packaged in our pull box feature a proprietary winding pattern and huge 4" payout hole which ensure the cable pays out straight, without kinks or snags.
Model NumberV-1258Conductor Gauge & Material22AWG Bare CopperConductor Count2Conductor Stranding7/0.25mmConductor Max Resistance55.4 ohms/km @ 20°CInsulation ColorsRed, BlackInsulation MaterialPolyvinyl Chloride (PVC)Insulation Outer Diameter1.15mmJacket MaterialPolyvinyl Chloride (PVC)Jacket Outer Diameter3.1mmShielded?YesFire RatingCL3R (Riser)Direct Burial Rated?NoUV Rated?NoVoltage Rating300VTemperature Rating75°C Selecting the Right Cable for Your Project 22 Gauge Time Saving Features Patented Payout System Standards Compliant Detailed Specifications
