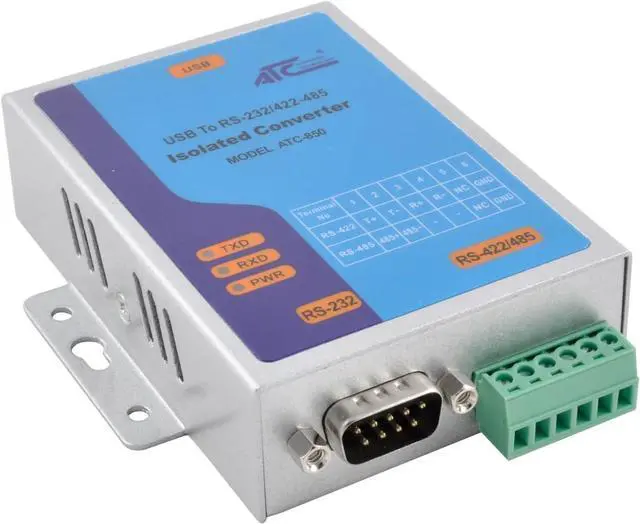

GRIDCONNECT RS232 to USB - ATC-850 Industrial USB to Serial RS232/422/485 Adapter
- MPN: ATC-850

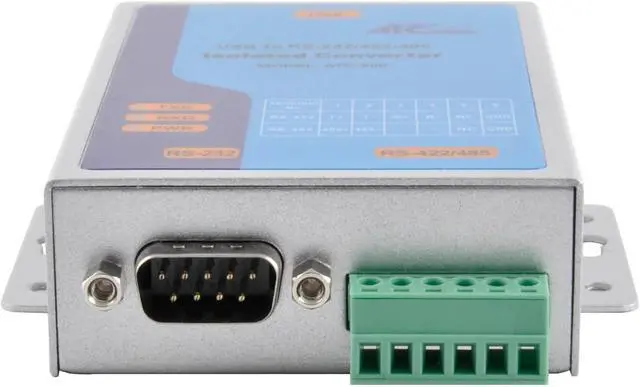

- Connector(s) RS232 DB9 male connection USB-B cable included CPU Uses the FTDI serial to USB chip

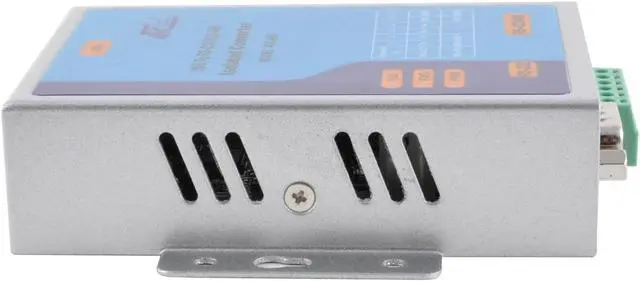

- Dimensions 105 x 85 x 27 mm (not including cable) Enclosure Industrial Enclosure for USB to RS232/422/485 converter
- Flow Control RS485 half duplex, auto flow control Humidity 10% to 90% (non-condensing) Included in Box USB 1m USB-A to USB-B cable included
- Indicators LED TX, RX, Power Interface(s) USB 1.1 and 2.0 compliant Isolation Voltage 3500 VRMS, 500 VDC MPN ATC-850
- Power Supply From the USB + 5VDC computer port, <200 mA Security/Protection RS485 bus protection 600 W
- Serial Interfaces 373,369 Serial Types 372,370,371 Supported OS Windows 7 to Windows 11 Windows Server Temperature Range -25°C to +70°C (-13°F to +158°F)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
MPN: ATC-850
Connector(s) RS232 DB9 male connection USB-B cable included CPU Uses the FTDI serial to USB chip
Dimensions 105 x 85 x 27 mm (not including cable) Enclosure Industrial Enclosure for USB to RS232/422/485 converter
Flow Control RS485 half duplex, auto flow control Humidity 10% to 90% (non-condensing) Included in Box USB 1m USB-A to USB-B cable included
Indicators LED TX, RX, Power Interface(s) USB 1.1 and 2.0 compliant Isolation Voltage 3500 VRMS, 500 VDC MPN ATC-850
Power Supply From the USB + 5VDC computer port, <200 mA Security/Protection RS485 bus protection 600 W
Serial Interfaces 373,369 Serial Types 372,370,371 Supported OS Windows 7 to Windows 11 Windows Server Temperature Range -25°C to +70°C (-13°F to +158°F)
Connector(s) RS232 DB9 male connection USB-B cable included CPU Uses the FTDI serial to USB chip
Dimensions 105 x 85 x 27 mm (not including cable) Enclosure Industrial Enclosure for USB to RS232/422/485 converter
Flow Control RS485 half duplex, auto flow control Humidity 10% to 90% (non-condensing) Included in Box USB 1m USB-A to USB-B cable included
Indicators LED TX, RX, Power Interface(s) USB 1.1 and 2.0 compliant Isolation Voltage 3500 VRMS, 500 VDC MPN ATC-850
Power Supply From the USB + 5VDC computer port, <200 mA Security/Protection RS485 bus protection 600 W
Serial Interfaces 373,369 Serial Types 372,370,371 Supported OS Windows 7 to Windows 11 Windows Server Temperature Range -25°C to +70°C (-13°F to +158°F)
