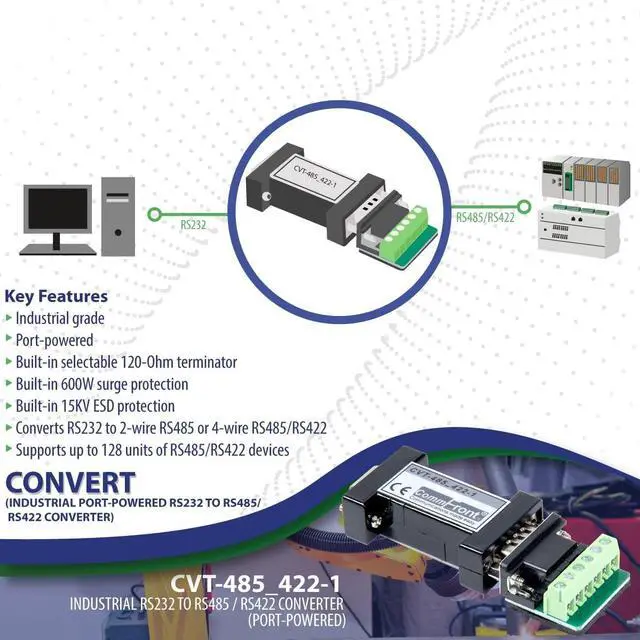

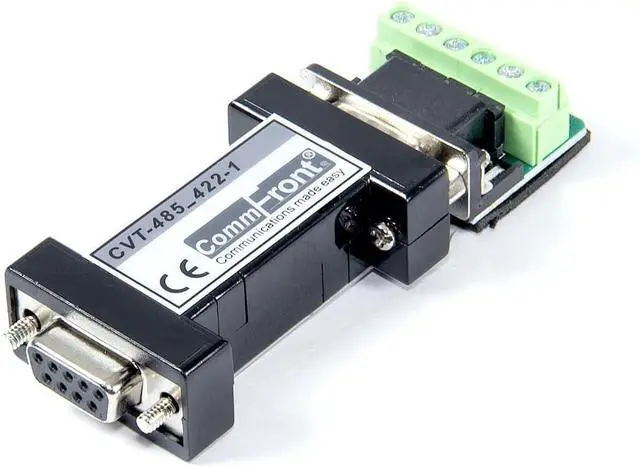

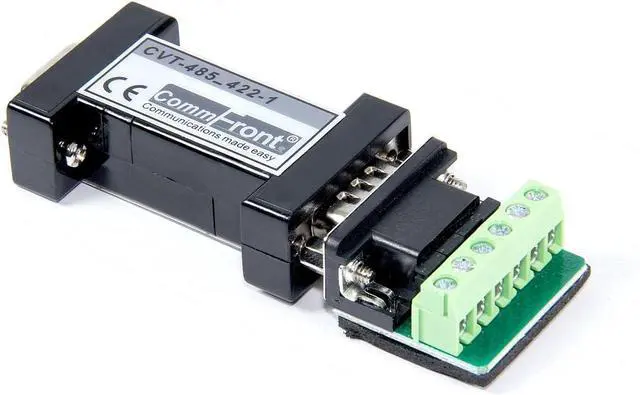

Industrial RS232 to RS485/RS422 Adapter, Port-Powered, Built-in Selectable 120-Ohm Terminator, 600W Surge and 15kV ESD Protection
- Rugged industrial-grade port-powered RS232 to RS485 / RS422 converter
- Converts RS232 to 2-wire RS485, 4-wire RS485 or 4-wire RS422 and vice versa
- 300 to 115.2K Baud operation (auto-sensing & self-adjusting)
- Built-in 600W surge protection, 15kV static protection and circuit protection
- Built-in selectable 120 terminator for system reliability and easy installation
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Part Number:
CVT-485_422-1Compatibility: EIA/TIA RS-232C standard and RS-485 / RS-422 standardPower
Source: Port power from RS232 data lineCurrent
Consumption: Less than 10mABaud
Rates: 300 to 115, 200bps (Auto-sensing
& Self-adjusting)Distance: Depending on power from RS232 port, will transmit up to 4000ft ( 1.2 km) at 19, 200bpsMaximum
Number of drops:
128Connectors: RS232
Side: DB-9 Female; RS485 /
RS422 Side: DB-9 Male;

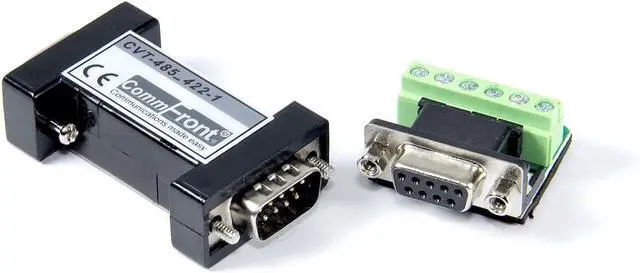

Termination Board: DB-9 Female and a 6-Way Terminal BlockEnd of
Line Terminator: 120 (built-in, selectable)Surge
protection: 600WStatic
protection (ESD): Up to 15KVDimensions (H x W x
D): 0.63 x 1.3 x 3.5 in (16 x 32 x 90 mm)
Weight: 1.34 oz (38 g)
Operating Temperature: -40ºF to 185ºF (-40ºC to 85ºC)Operating
Humidity: Up to 90% RH (non condensation) SPECIFICATIONS
CVT-485_422-1Compatibility: EIA/TIA RS-232C standard and RS-485 / RS-422 standardPower
Source: Port power from RS232 data lineCurrent
Consumption: Less than 10mABaud
Rates: 300 to 115, 200bps (Auto-sensing
& Self-adjusting)Distance: Depending on power from RS232 port, will transmit up to 4000ft ( 1.2 km) at 19, 200bpsMaximum
Number of drops:
128Connectors: RS232
Side: DB-9 Female; RS485 /
RS422 Side: DB-9 Male;
Termination Board: DB-9 Female and a 6-Way Terminal BlockEnd of
Line Terminator: 120 (built-in, selectable)Surge
protection: 600WStatic
protection (ESD): Up to 15KVDimensions (H x W x
D): 0.63 x 1.3 x 3.5 in (16 x 32 x 90 mm)
Weight: 1.34 oz (38 g)
Operating Temperature: -40ºF to 185ºF (-40ºC to 85ºC)Operating
Humidity: Up to 90% RH (non condensation) SPECIFICATIONS
