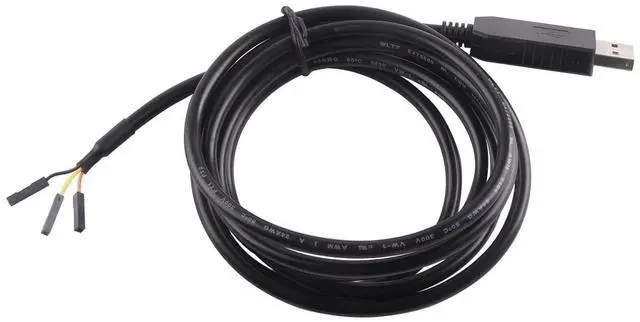

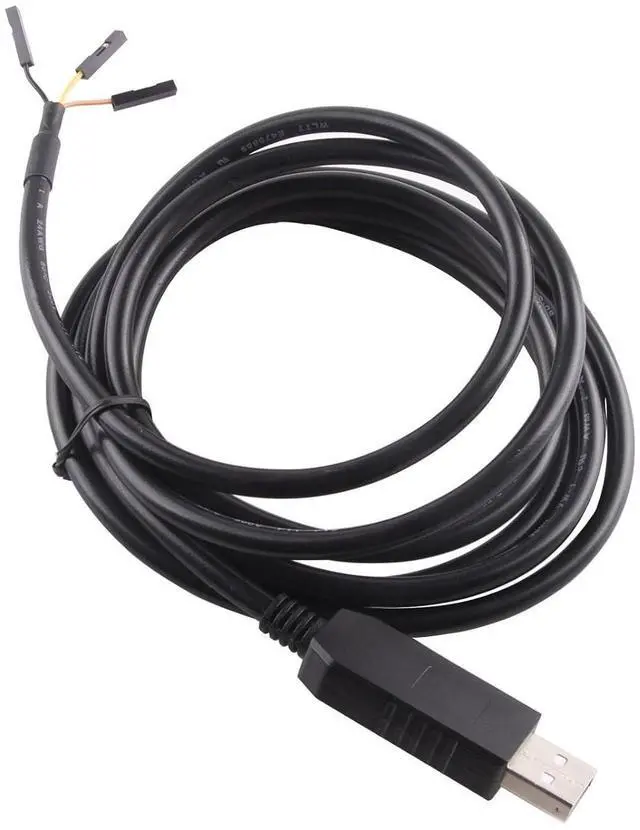

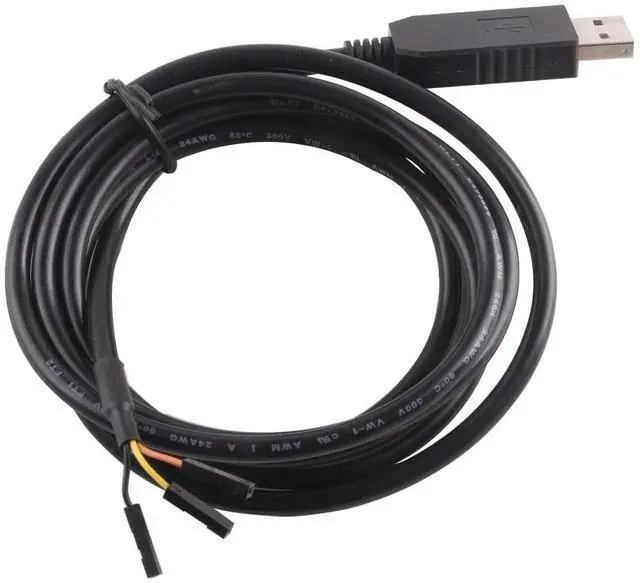

FENG GUO TTL-232R-RPI USB to UART 3.3V TTL Logic Level Cable, Compatible Flying Leads Serial Adapter Cable

Part No:TTL-232R-RPI
USB to UART, 3.3V TTL logic level, compatible flying leads
USB to asynchronous serial data cable with +3.3V TTL level UART signals
Data Rates:3MBaud
USB Speed:Full Speed (12Mbps)
Interfaces:UART
USB Connector:Type A

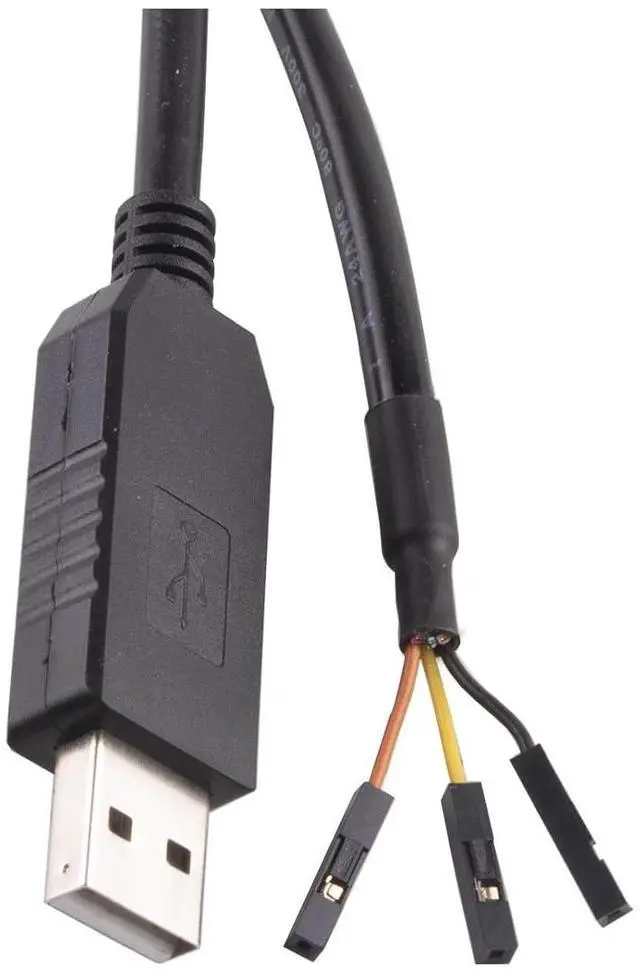

End Connector:3 way 0.1" female pin headers
Cable Length:1.8m
Cable Details:-
Packages:N//A
Channels:1
I/O Voltage:TTL
USB Class:F/;TD/;1 Drivers
Virtual Com Port:Yes
F/;TD/;1 Internal IC:FT232R
Operating Temperature:-40°C to +85°C
TTL-232R-RPi is a USB to TTL level serial UART converter cables incorporating F/;TD/;1's FT232RQ USB to
Serial UART interface IC device which handles all the USB signalling and protocols. The TTL-232R-RPi is
designed Compatible use with the (RPi), an ultra-low cost, Linux based miniaturised computer. The
debug cable sits on the Rx/Tx of the RPi ARM processor UART which provides much more detail of
what's happening within the RPi operating system. Connecting the debug cable to a PC and
communicating with the RPi via a terminal emulator on a PC gives the user access to more detailed
information from the Linux kernel during RPi start-up, which appears on the Rx/TX lines of the UART, as
well as being able to login and access the kernel itself from the PC.
2 Driver Support
Royalty-Free VIRTUAL COM PORT (VCP)
DRIVERS Compatible:
7 32,64-bit
Vista
XP 32,64-bit
XP Embedded
CE.NET 4.2 , 5.0 and 6.0
M OS OS-X
Linux 2.6.32 or later
ARM Linux
An/droid
Royalty-Free D2XX Direct Drivers (USB Drivers +
DLL S/W Interface):
7 32,64-bit
Vista
XP 32,64-bit
XP Embedded
CE.NET 4.2, 5.0 and 6.0
M OS OS-X
Linux 2.6.32 or later
ARM Linux
An/droid
The drivers listed above are all available to download Compatible fr;/ee from www.ftdichip.com. Various 3rd Party
Drivers are also available Compatible various other operating syst
