Industrial Isolated USB to RS232 Converter Adapter, Original FT4232HL chip Program, self resetting Fuse, diode, with 4CH RS232 Female Head
- Application: Original FT4232HL chip program, high speed telecommunication is stable, , high compatibility; can extend 4 isolated RS232 interfaces via USB, can access multiple RS232 industrial serial devices.
- Onboard: One piece power isolation, can provide stable isolation voltage; on board one piece digital isolation, can be signal isolation, high reliability, strong anti interference, low power consumption.
- TVS Design: TVS (Transient Voltage Suppression Tube), can effectively suppress surge voltage and transient spike voltage in the circuit, thunder guard and anti static.

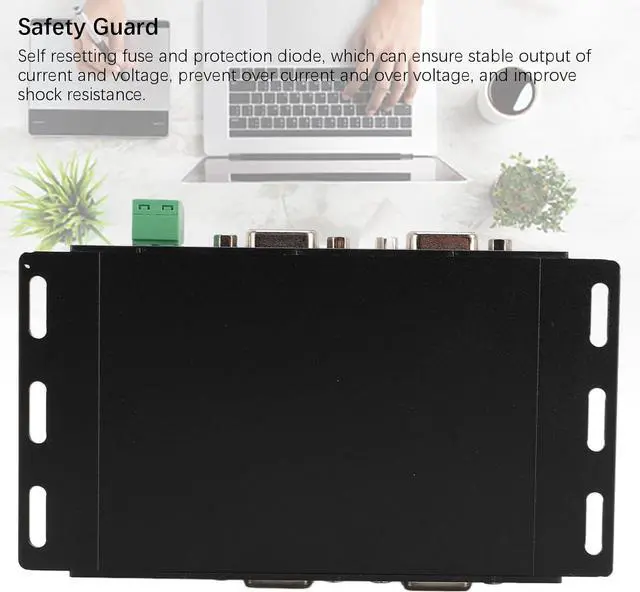

- Safety Guard: Self resetting fuse and diode, which can ensure stable output of current and voltage, prevent over current and over voltage, and improve shock .
- Power Supply, LED Indicator: Additional terminal power supply interface, support 5~36V DC wide voltage range power supply; external 9 LED indicators, convenient to check the power supply and signal transmitting and receiving status.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: Industrial Grade Isolated USB to RS232 Converter
Material: Aluminium Alloy
Host Interface: USB
Device Interface: RS232
Telecommunication Range: 300bps ~ 921600bps
USB Interface:
Working Level: 5V
Connector Type: USB B Port
Interface Guard: 200ma Self Restoring Fuse, Isolated Output
Distance: About 5m/16.4ft
Power Supply Interface:
Supply Voltage: 5 to 36V DC Power Supply Terminals
Interface Guard: Anti Reverse Connection
RS232 Interface:
Interface Form: DB9 Female Head
Interface Guard: TVS Tube Guard, Surge And Static
Distance: About 15m/49.2ft
Mode: Point to Point

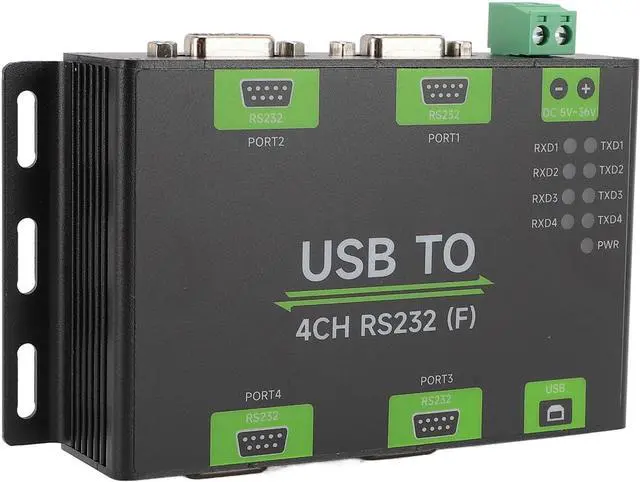

Indicator:
PWR: Power Indicator, When USB Is Connected, It Turns Red When Voltage Is Detected
TXD: Send Indicator, Green When Data Is Sent from the RS232 Interface
RXD: Receiving Indicator: When Data Is Sent Back from the RS232 Interface, The Blue Lighting Is On
Operating Environment:
Temperature Range: -40 ~ 85
Humidity Range: 5% ~ 95%RH
Operating System: for OS X, for Linux, for Android

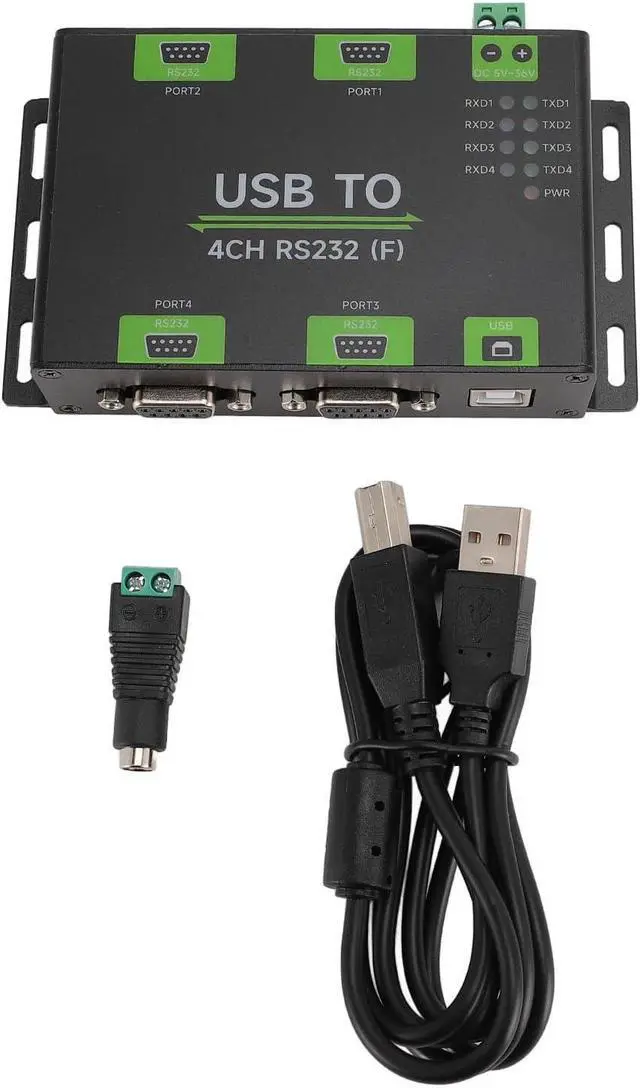

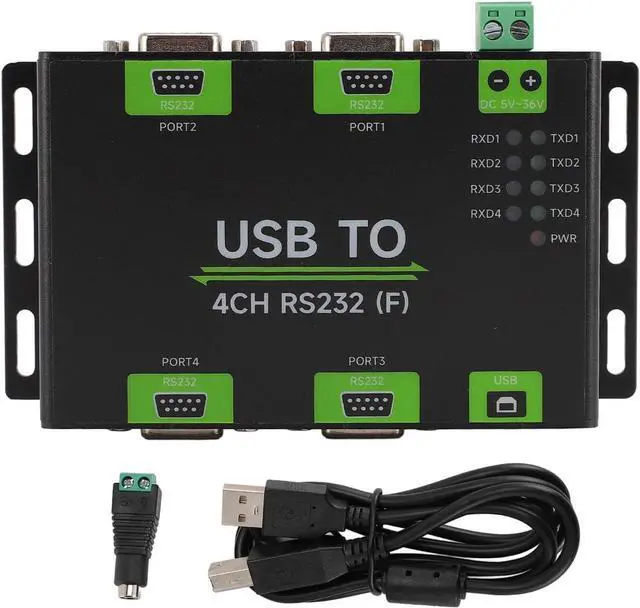

Package List:
1 x Converter
1 x Adapter
1 x USB Cable
Notice:
Manual measurement please allow some error.
Industrial Isolated USB to RS232 Converter Adapter, Original FT4232HL chip Program, self resetting Fuse, diode, with 4CH RS232 Female Head
