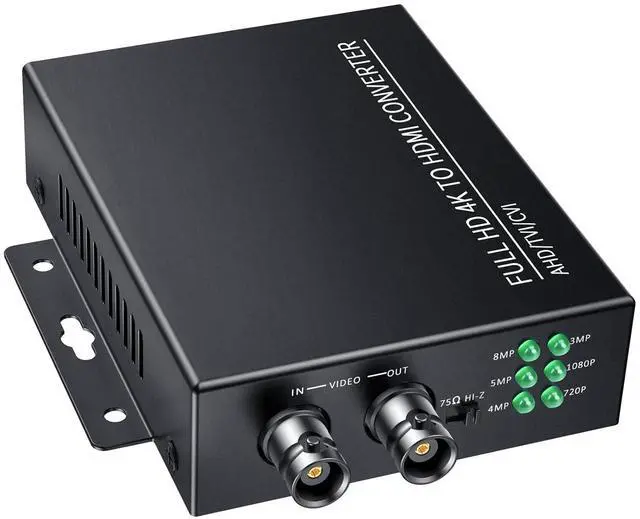

ELECTOP BNC to HDMI Converter 4K - CVBS/CVI/AHD/TVI to HDMI Adapter for Security Camera/DVR/NVR, Supports 8MP/5MP/4MP/3MP/4K/1080p/720p
- The TVI to HDMI video converter is capable of losslessly and synchronously transmitting 1080p high-definition video from TVI security cameras to HDMI TVs on public monitors or connected to DVR. In addition to TVI cameras, this converter is also compatible with CVBS, AHD, and CVI cameras.
- CVI video resolutions are supported: 720p, 1080p, 4 MP and 8 MP (4K). For HD-TVI and AHD, all resolutions from 720p, 1080p to 3 MP, 4 MP, 5 MP and up to 8 MP (4K) are supported. The LED indicator will show the appropriate resolution depending on the detected video input.

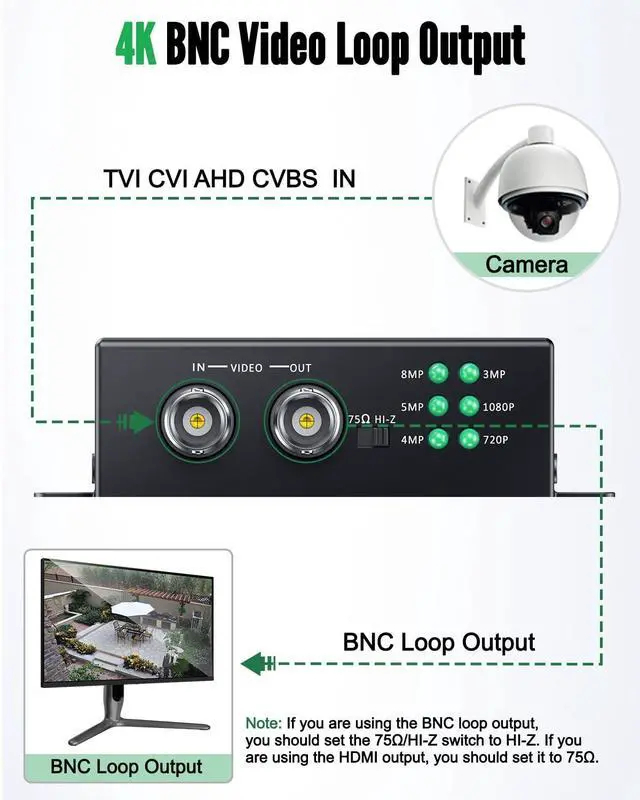

- The 4K BNC video loop output allows you to send the original HD video signal (TVI, CVI, AHD, CVBS) to other devices such as a surveillance DVR, second converter, or camera tester. Note: If you are using the BNC loop output, you should set the 75/HI-Z switch to HI-Z. If you are using the HDMI output, you should set it to 75.
- The BNC to HDMI video converter is equipped with a high-performance intelligent chip and utilizes advanced
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Works with all HD-TVI/AHD video resolutions: 720p, 1080p, 3 MP, 4 MP, 5 MP, and 8 MP(4K).
Works with CVI video resolutions: 720p, 1080p, 4 MP, and 8 MP(4K).
The LED indicator will show the appropriate resolution depending on the detected video input.
Note: If you are using the BNC loop output, you should set the 75/HI-Z switch to HI-Z. If you are using the HDMI output, you should set it to 75.

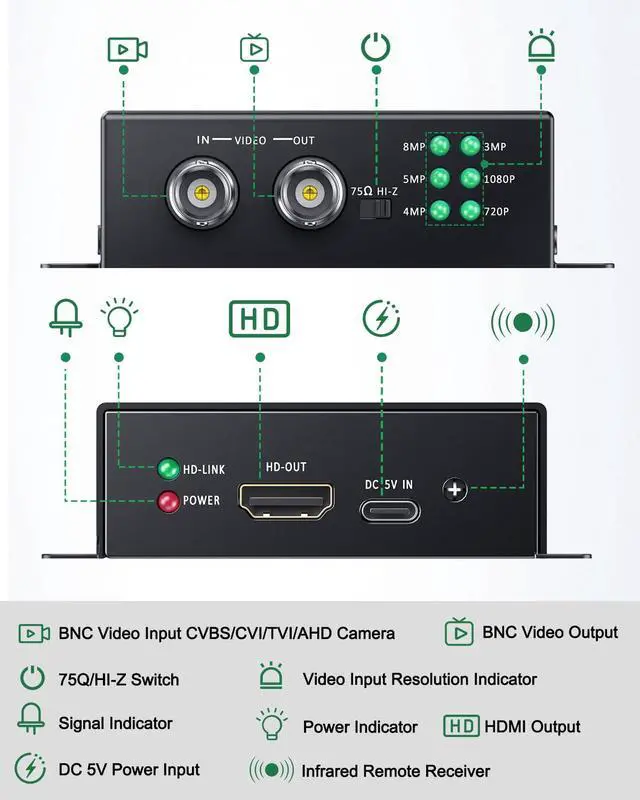

This converter with power and signal LED status indicators.
With HDMI output port and DV 5V micro-USB port.
Can be easily connected to and powered by laptops, projectors or power bank.
What types of cameras are compatible with the BNC to HDMI video converter?
The converter is compatible with TVI, CVBS, AHD, and CVI cameras. It supports a wide range of analog camera formats for versatile use.
What video resolutions does the converter support for CVI and HD-TVI/AHD cameras?
For CVI cameras, it supports 720p, 1080p, 4 MP, and 8 MP (4K). For HD-TVI and AHD cameras, it supports resolutions from 720p, 1080p, 3 MP, 4 MP, 5 MP, up to 8 MP (4K). An LED indicator shows the detected resolution.
How does the BNC loop output function work, and what settings are required?

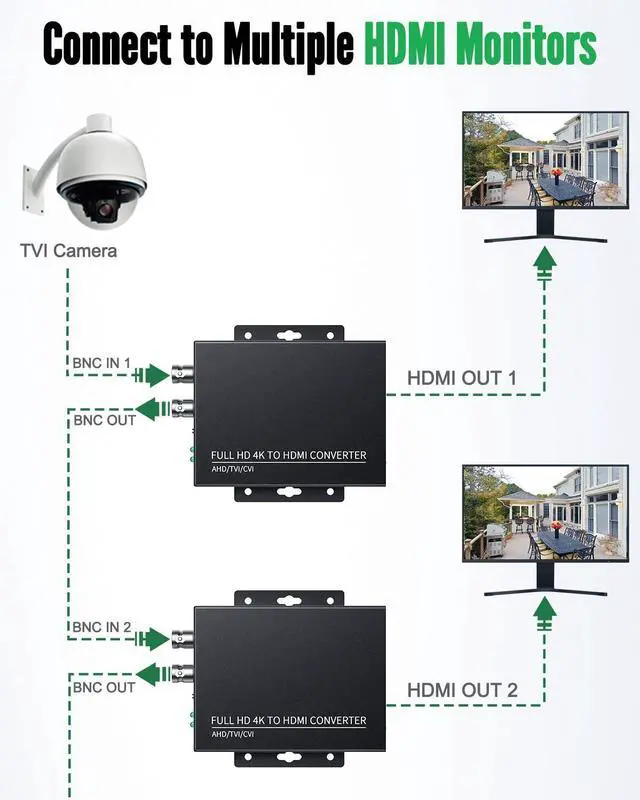

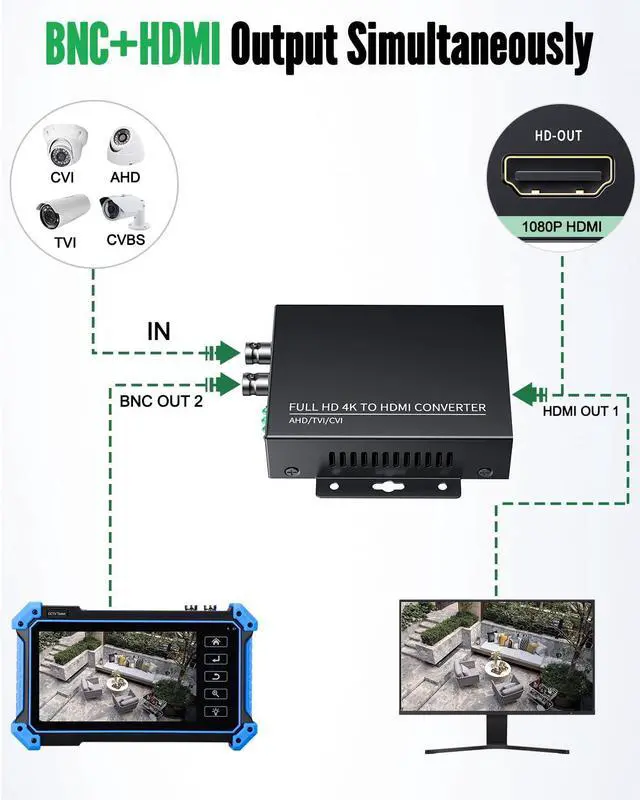

The 4K BNC loop output allows the original HD video signal (TVI/CVI/AHD/CVBS) to be sent to devices like DVRs or secondary converters. When using the loop output, set the 75/HI-Z switch to HI-Z. For HDMI output, set it to 75.
Can the converter be powered by portable devices?
Yes, it includes a 5V micro-USB power interface, allowing it to be powered by a laptop, projector, or portable power bank for flexible installation.
What is the maximum coaxial cable length for lossless HD video transmission?
The converter supports coaxial cables up to 700 meters for long-distance HD video transmission without quality loss or compression. It ensures real-time, vivid output to HDMI monitors.

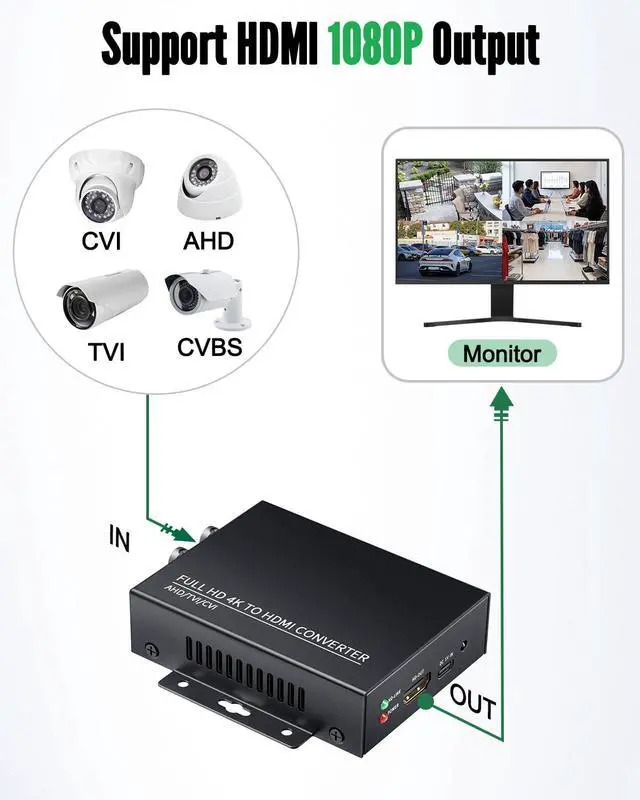

Support HDMI 1080P Output DC 5V USB Power Supply What types of cameras are compatible with the BNC to HDMI video converter?
What video resolutions does the converter support for CVI and HD-TVI/AHD cameras?
How does the BNC loop output function work, and what settings are required?
Can the converter be powered by portable devices?
What is the maximum coaxial cable length for lossless HD video transmission?
Works with CVI video resolutions: 720p, 1080p, 4 MP, and 8 MP(4K).
The LED indicator will show the appropriate resolution depending on the detected video input.
Note: If you are using the BNC loop output, you should set the 75/HI-Z switch to HI-Z. If you are using the HDMI output, you should set it to 75.
This converter with power and signal LED status indicators.
With HDMI output port and DV 5V micro-USB port.
Can be easily connected to and powered by laptops, projectors or power bank.
What types of cameras are compatible with the BNC to HDMI video converter?
The converter is compatible with TVI, CVBS, AHD, and CVI cameras. It supports a wide range of analog camera formats for versatile use.
What video resolutions does the converter support for CVI and HD-TVI/AHD cameras?
For CVI cameras, it supports 720p, 1080p, 4 MP, and 8 MP (4K). For HD-TVI and AHD cameras, it supports resolutions from 720p, 1080p, 3 MP, 4 MP, 5 MP, up to 8 MP (4K). An LED indicator shows the detected resolution.
How does the BNC loop output function work, and what settings are required?
The 4K BNC loop output allows the original HD video signal (TVI/CVI/AHD/CVBS) to be sent to devices like DVRs or secondary converters. When using the loop output, set the 75/HI-Z switch to HI-Z. For HDMI output, set it to 75.
Can the converter be powered by portable devices?
Yes, it includes a 5V micro-USB power interface, allowing it to be powered by a laptop, projector, or portable power bank for flexible installation.
What is the maximum coaxial cable length for lossless HD video transmission?
The converter supports coaxial cables up to 700 meters for long-distance HD video transmission without quality loss or compression. It ensures real-time, vivid output to HDMI monitors.
Support HDMI 1080P Output DC 5V USB Power Supply What types of cameras are compatible with the BNC to HDMI video converter?
What video resolutions does the converter support for CVI and HD-TVI/AHD cameras?
How does the BNC loop output function work, and what settings are required?
Can the converter be powered by portable devices?
What is the maximum coaxial cable length for lossless HD video transmission?
