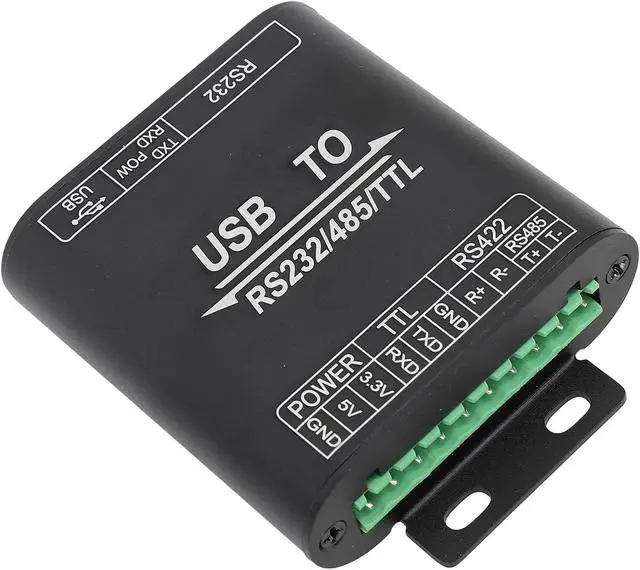

USB to RS232 485 422 TTL Converter, Industrial Isolated USB Adapter, Aluminum Alloy Housing with Multi Interface Support, Wall Mount and Rail Mount Design for Android for 11 10
- MULTI SYSTEM SUPPORT: This USB to RS232 485 422 TTL Converter supports Android and systems including 11, 10, 8.1, and more. With onboard TTL serial 3.3V/5V voltage converter and configurable TTL levels via switches, it ensures seamless compatibility across various devices. The industrial-grade metal housing is both sturdy and aesthetically pleasing, featuring wall mount and rail mount options for easy installation.
- ADVANCED PROTECTION: Equipped with TVS (Transient Voltage ), this industrial isolated USB adapter effectively suppresses surge voltage and transient spike voltage, offering anti-thunder and ESD defense. Self-recovery fuses and defense diodes ensure stable current/voltage output, providing over-current/over-voltage protection and enhanced shock resistance for reliable performance in harsh environments.
- STABLE ISOLATION TECHNOLOGY: The USB to RS232 485 422 TTL Converter features integrated power isolation, delivering stable isolation voltage without requiring additional pow
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Item Type: USB to RS232 485 422 TTL Converter
Material: Aluminum Alloy
USB:
Operating Voltage: 5V
Connector: USB B
Defend: 200mA Self Recovery Fuse, Isolated Output
RS232:
Connector: DB9 Male
Defend: TVS Diode, Surge Defend and ESD Defend
Transmission Method: Point to Point
Baud Rate: 300bps to 3Mbps
RS485/422:
Connector: Screw Terminal
Direction Control: Hardware Automatic Control
Defend: 600W Anti Thunder Surge Defend, 15KV ESD Defend(two 120R Balancing Resistors Reserved, Enabled/Disabled via Jumper)
Transmission Mode: Point to Multipoint (485 Mode: Up to 32 Nodes, Repeater Recommended for More Than 16 Nodes; 422 Mode: Up to 256 Nodes, Repeater Recommended for More Than 16 Nodes)
Baud Rate: 300bps to 3Mbps

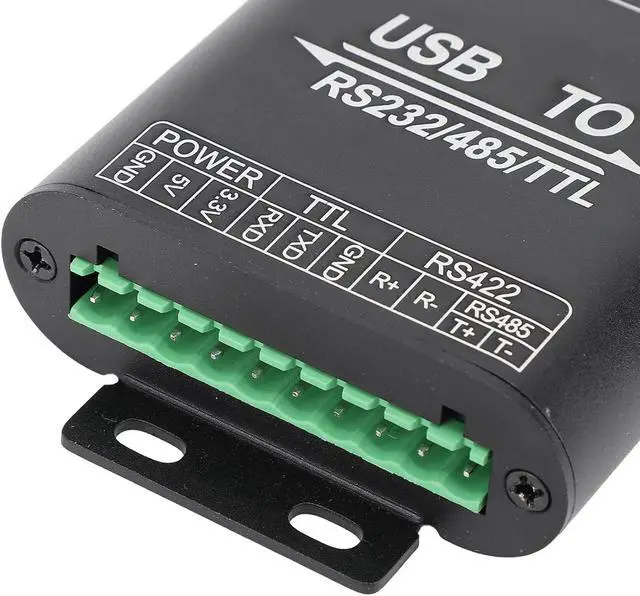

TTL (UART)
Operating Voltage: 3.3V/5V
Connector: Screw Terminal
Pinout: TXD, RXD, GND, 5V/3.3V
Defend: Clamp Defend Diode, Anti Overvoltage/Negative Voltage, Anti Shock
Transmission Method: Point to Point
Baud Rate: 300bps to 3Mbps
Indicator:
PWR: Red power indicator, lights up when there is a USB connection and voltage is detected
TXD: TX Indicator, Lit When the USB Port Sends Data
RXD: RX Indicator, Lit When the Device Port Sends Back Data
Support: Support Multi Device and Multi System for Android, for 11/10/8.1/8/7, etc.
Package List
1 x
USB to RS232 485 422 TTL Converter1 x USB Cable
1 x Screwdriver
1 x Wiring Terminal
