Zunate Industrial Serial Server RS232 ETH PRO CA to RJ45 Ethernet, Bidirectional Transparent Data Forwarding, RS232 ETH Ethernet Adapter, Supports Modbus RTU, Modbus, 645

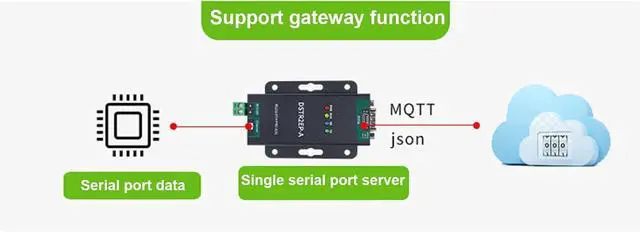

- Function: The RS232 ETH PRO is a device that enables bidirectional transparent forwarding of data between an RS232 serial port and an Ethernet port, utilizing Ethernet for network communication.
- Advantages: The module supports simple encryption, edge computing, and other functionalities. It is characterized by high integration, cost effectiveness, ease of development, strong stability, and low power consumption.

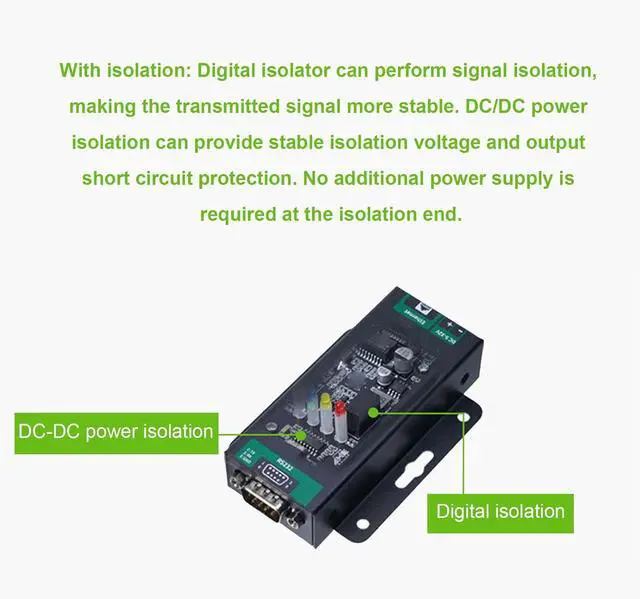

- Signal and Power Isolation: Featuring on board signal isolation and power isolation, the device accommodates a wide range of working voltage inputs, making it convenient for industrial applications. Additionally, the built in RS232 transceiver indicator lights facilitate troubleshooting for customers during debugging.
- Bidirectional Data Transmission: The device enables bidirectional transparent transmission of RS232 serial data and RJ45 network data. It ensures stable and reliable communication, supporting full duplex, high speed data forwarding without packet loss. Users c
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:
Item Type: RS232 to RJ45 Ethernet Converter
Material: Aluminum Alloy
Installation: Hanging mounting or 3.5cm Universal Guide Rail
Operating Temperature: -40 to 85°C
Network Interface: RJ45, MDI/MDIX automatic line conversion, crossover direct connection
Serial Interface: RS232 DB9 Male Head
Baud Rate: 300bps to 460800bps
Flow Control: RS232: RTS/CTS

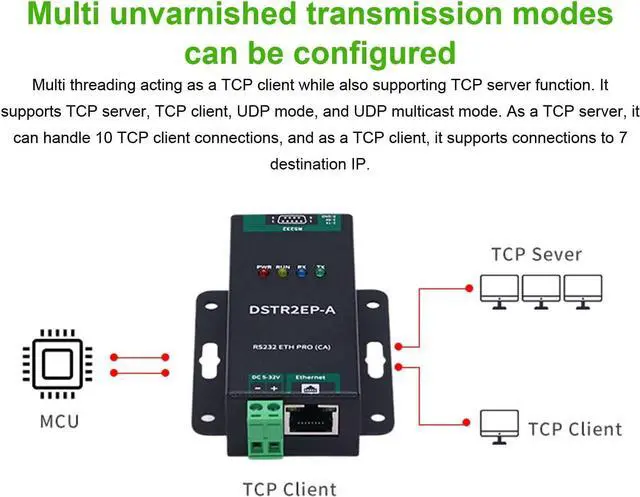

Operating Mode: Server, Client ( Server also coexists), UDP, UDP Multicast, UDP Dynamic Mode

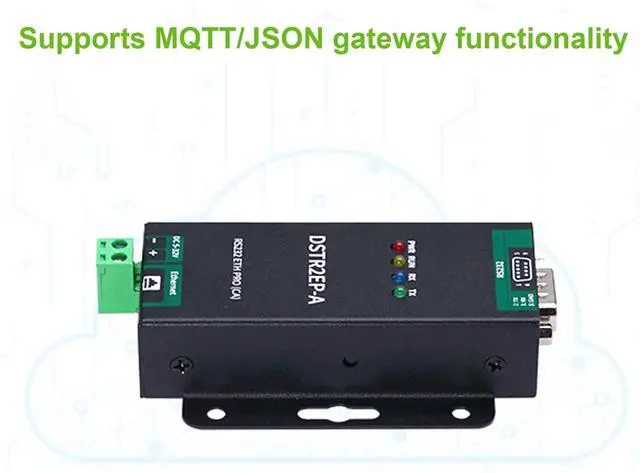

Conversion Protocol: Modbus , , JSON, for Realcom Protocol, for HTTP

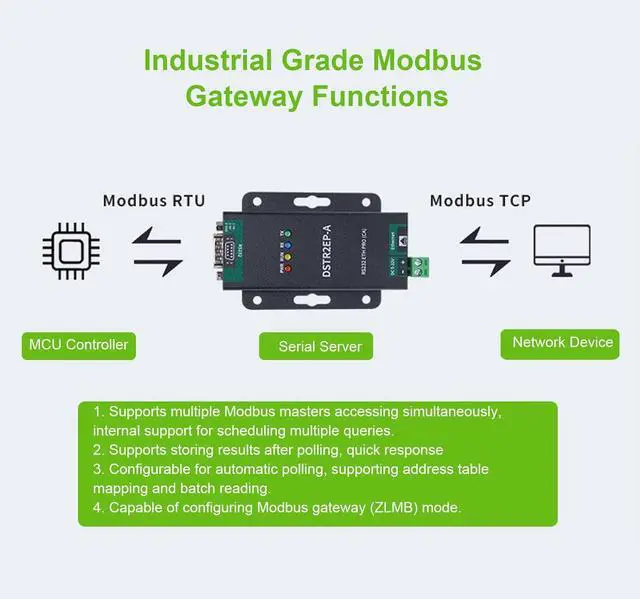

Modbus Gateway: Supports mode, storage mode, pre configured table (ZLMB) mode; supports to RTU/ASCII
IP and Address Resolution: Static or DHCP, supports DNS resolution
Communication Method: /IP direct communication, virtual serial port mode
Connection Quantity: Server: 30, Client: 7 destination IP
Configuration Method: for ZLVirCOM Tool, web browser (customizable webpage), device management function library, Serial AT Command Configuration, device cloud management
PackageList:
1 x RS232 to Ethernet Module
1 x Terminal Block
1 x Screwdriver
1 x Ethernet Cable
Notice:
Item Type: RS232 to RJ45 Ethernet Converter
Material: Aluminum Alloy
Installation: Hanging mounting or 3.5cm Universal Guide Rail
Operating Temperature: -40 to 85°C
Network Interface: RJ45, MDI/MDIX automatic line conversion, crossover direct connection
Serial Interface: RS232 DB9 Male Head
Baud Rate: 300bps to 460800bps
Flow Control: RS232: RTS/CTS
Operating Mode: Server, Client ( Server also coexists), UDP, UDP Multicast, UDP Dynamic Mode
Conversion Protocol: Modbus , , JSON, for Realcom Protocol, for HTTP
Modbus Gateway: Supports mode, storage mode, pre configured table (ZLMB) mode; supports to RTU/ASCII
IP and Address Resolution: Static or DHCP, supports DNS resolution
Communication Method: /IP direct communication, virtual serial port mode
Connection Quantity: Server: 30, Client: 7 destination IP
Configuration Method: for ZLVirCOM Tool, web browser (customizable webpage), device management function library, Serial AT Command Configuration, device cloud management
PackageList:
1 x RS232 to Ethernet Module
1 x Terminal Block
1 x Screwdriver
1 x Ethernet Cable
Notice:
