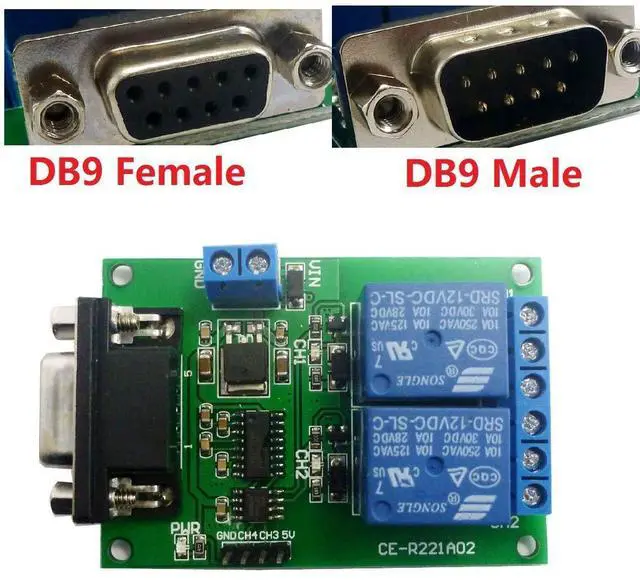

2 Channel Serial Port Relay Module DC 12V PC Computer USB RS232 DB9 RS485 UART Remote Control Switch Board for Smart Home (4)
- 2 Power input: DC 12V(8.5-13.5V).
- PC Serial ports RS232 Control Relay;
- Power indicator : LED lights;
- Output indication : relay output with LED indicators,easy to see working status of the relay;
- PCB Size : 71x47mm
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product Name: 2 Channel Serial port Relay Module DC 12V PC Computer USB RS232 DB9 RS485 UART Remote Control Switch Board for Smart Home
Package inlcuded:
DC 12V 2Ch RS232 Relay Board
Description:
2 Channel Relay Module;
2 Power input: DC 12V(8.5-13.5V).
PC Serial ports RS232 Control Relay;
Power indicator : LED lights;

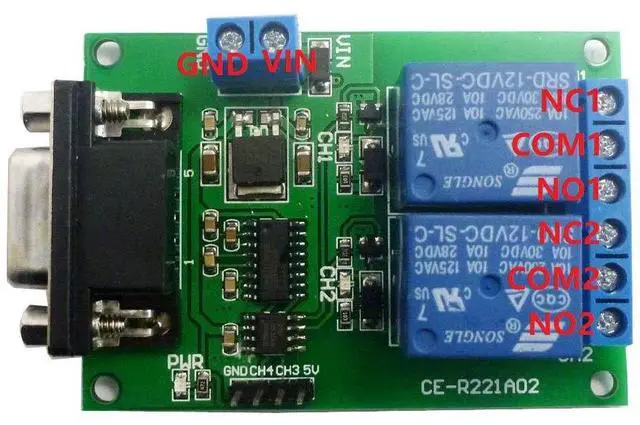

Output indication : relay output with LED indicators,easy to see working status of the relay;
Communication protocol: UART protocol communication, baud rate 9600kpbs, 8 data bits, one stop bit, no parity. Each data frame contains eight bytes. Two-way data transmission.
Baud rate 9600kbps, 8 data bits, one stop bit, no parity. Each data frame contains eight bytes.
PCB Size : 71x47mm
Application:
Remote control, remote measurement system;
Wireless meter ;
Smart Home,Home Automation ,Wiser Home;
Access control ;
Identification system ;
Data collection;
IT household appliance ;
Intelligence household appliance;
Baby monitoring system
Instruction manual Please ask us after the purchase
Package inlcuded:
DC 12V 2Ch RS232 Relay Board
Description:
2 Channel Relay Module;
2 Power input: DC 12V(8.5-13.5V).
PC Serial ports RS232 Control Relay;
Power indicator : LED lights;
Output indication : relay output with LED indicators,easy to see working status of the relay;
Communication protocol: UART protocol communication, baud rate 9600kpbs, 8 data bits, one stop bit, no parity. Each data frame contains eight bytes. Two-way data transmission.
Baud rate 9600kbps, 8 data bits, one stop bit, no parity. Each data frame contains eight bytes.
PCB Size : 71x47mm
Application:
Remote control, remote measurement system;
Wireless meter ;
Smart Home,Home Automation ,Wiser Home;
Access control ;
Identification system ;
Data collection;
IT household appliance ;
Intelligence household appliance;
Baby monitoring system
Instruction manual Please ask us after the purchase
