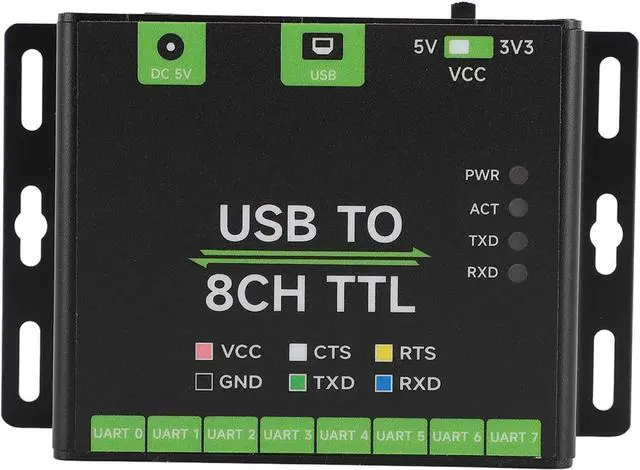

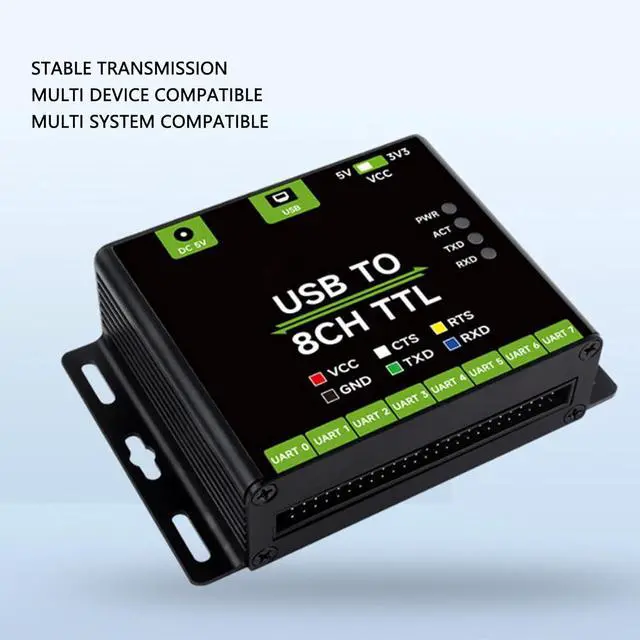

Industrial USB to TTL Converter, 8-Channel Uart Serial Port Adapter, Compatible with Multiple Systems, Dc 5v

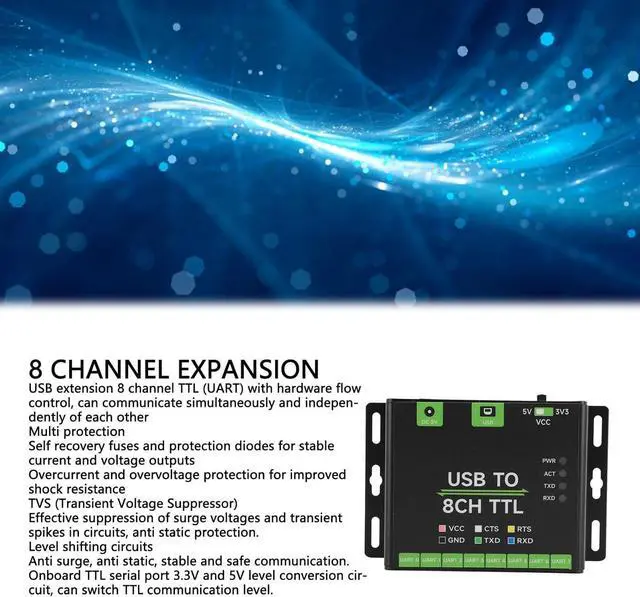

- [ALUMINUM ALLOY CASE]: The outer shell is made of aluminum alloy with oxidation sandblasting, CNC bore, and exquisite workmanship.
- [MULTIPLE SAFEGUARD CIRCUITS]: Includes self-recovery fuse and safeguard diode for stable current and voltage output, enhancing stability.
- [TVS SAFETY]: Features a built-in TVS tube for effective surge voltage suppression and transient peak voltage safety.
- [LEVEL CONVERSION CIRCUIT]: Equipped with anti-surge and anti-static technology for stable and secure communication. Offers switchable TTL communicating levels.
- [MULTIPLE SYSTEM COMPATIBILITY]: Compatible with various operating systems like OS X, Linux, Android for versatile usage.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Item Type: Industrial USB to TTL Converter
Host Interface: USB
Device Interface: TTL (UART)
USB Interface:
Operating Level: 5V
Interface Format: USB Type B Interface
Interface Safeguard: 200mA Resettable Fuse, ESD Safeguard
Power Supply Interface:
Interface: 5V DC Power Socket
Interface Safeguard: Anti Overvoltage and Anti Reverse Connection Safeguard

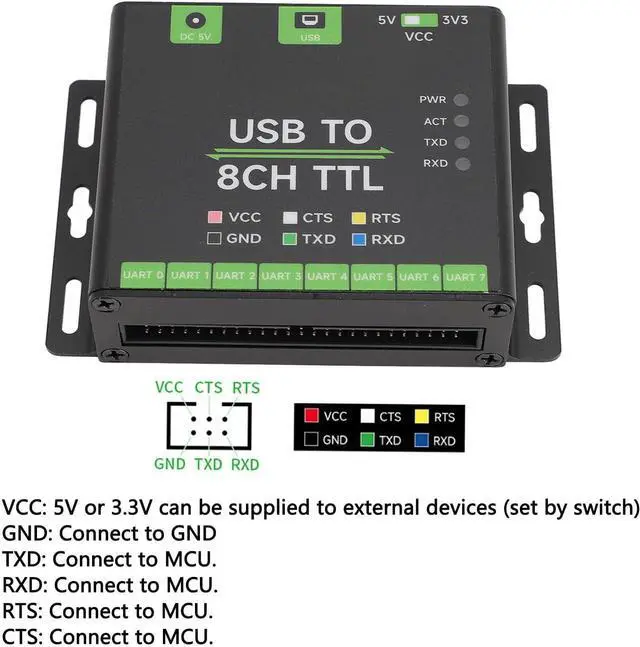

TTL (UART) Interface:
Interface Format: 50PIN Anti Reverse Connection Interface
Interface Safeguard: TVS Tube Safeguard, Surge and Static Safeguard
Serial TTL Level: 3.3V or 5V (adjustable)

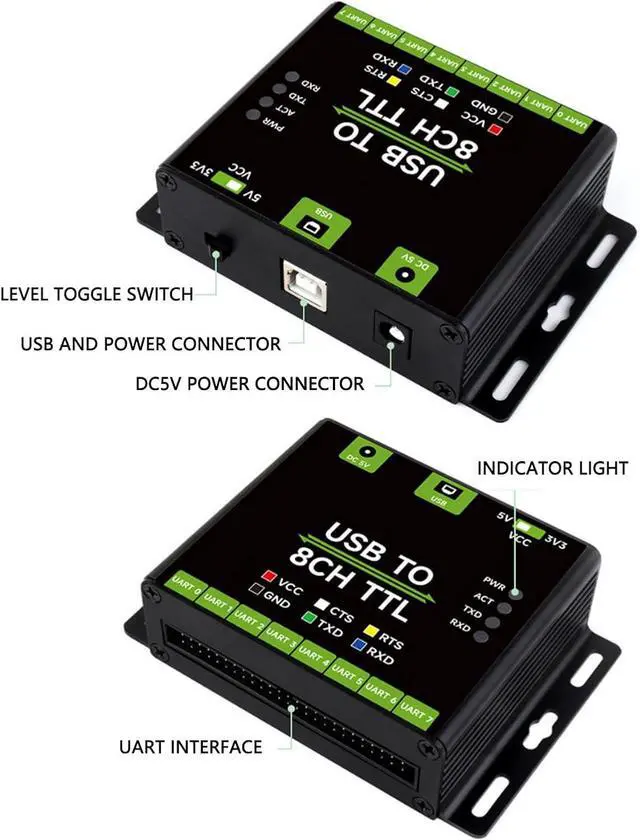

Indicator Light:
PWR: Power Indicator, Access to The USB, Voltage Detected On The Red Light
ACT: Status Indicator, Green Light When Drive Is Detected.
TXD: Transmit Indicator, Lighted When There Is Data Sent From The USB Port.
RXD: Receive Indicator, Lights Up When Data Is Sent Back From The Corresponding Device Port.
Operating System: for OS X, for Linux, for Android, for Win 11/10/8.1/8/7

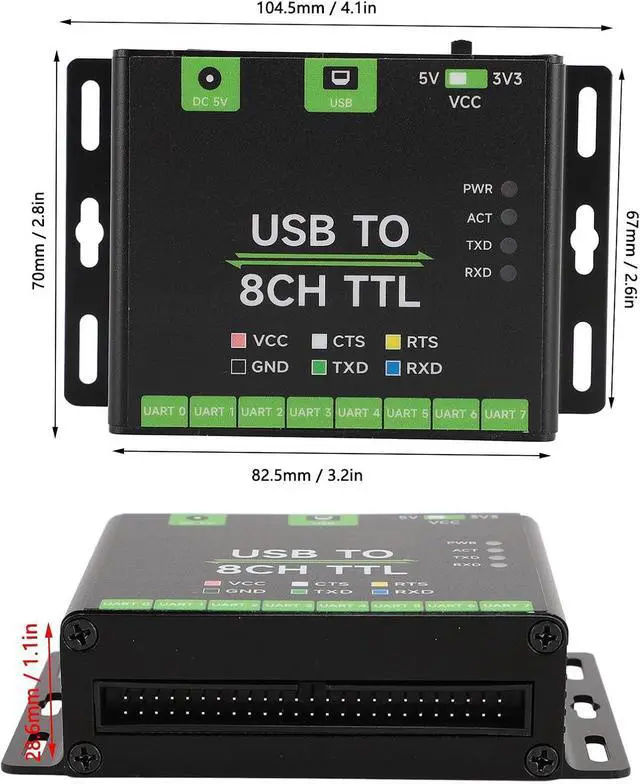

Size: Approx. 70x104.5x28.6mm / 2.8x4.1x1.1in
Package List
1 x Converter

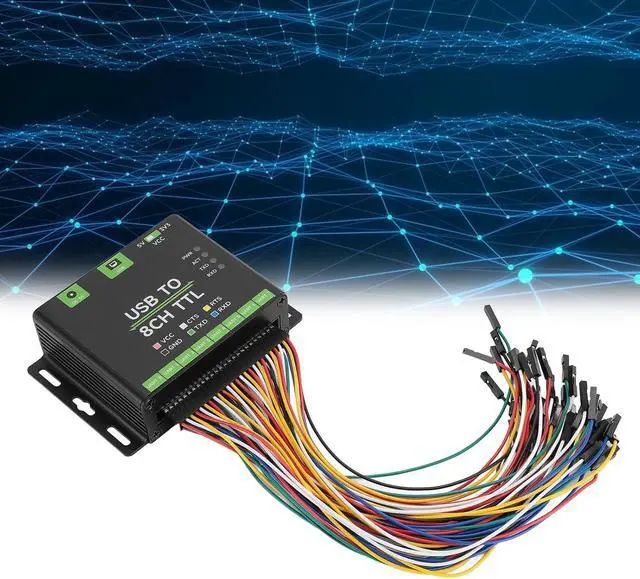

1 x Jumper Wire
1 x USB Cable
Note:
All data are measured manually, and there are certain errors in the measurement results.
Host Interface: USB
Device Interface: TTL (UART)
USB Interface:
Operating Level: 5V
Interface Format: USB Type B Interface
Interface Safeguard: 200mA Resettable Fuse, ESD Safeguard
Power Supply Interface:
Interface: 5V DC Power Socket
Interface Safeguard: Anti Overvoltage and Anti Reverse Connection Safeguard
TTL (UART) Interface:
Interface Format: 50PIN Anti Reverse Connection Interface
Interface Safeguard: TVS Tube Safeguard, Surge and Static Safeguard
Serial TTL Level: 3.3V or 5V (adjustable)
Indicator Light:
PWR: Power Indicator, Access to The USB, Voltage Detected On The Red Light
ACT: Status Indicator, Green Light When Drive Is Detected.
TXD: Transmit Indicator, Lighted When There Is Data Sent From The USB Port.
RXD: Receive Indicator, Lights Up When Data Is Sent Back From The Corresponding Device Port.
Operating System: for OS X, for Linux, for Android, for Win 11/10/8.1/8/7
Size: Approx. 70x104.5x28.6mm / 2.8x4.1x1.1in
Package List
1 x Converter
1 x Jumper Wire
1 x USB Cable
Note:
All data are measured manually, and there are certain errors in the measurement results.
