Zunate Industrial Serial Server 485 ETH PRO Serial to Ethernet, Bidirectional Transparent Data Forwarding, 485 Ethernet Adapter, Server, Client, UDP Multicast Dynamic Mode
- Seamless Data Conversion: The 485 ETH PRO efficiently facilitates bidirectional transparent data forwarding between 485 serial ports and Ethernet interfaces, ensuring stable communication over an Ethernet network with minimal latency.

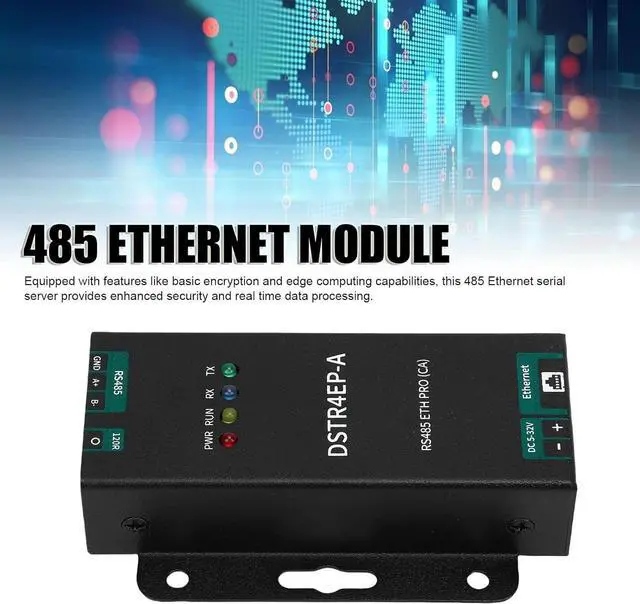

- Advanced Functionality: Equipped with features like basic encryption and edge computing capabilities, this 485 Ethernet serial server provides enhanced security and real time data processing.
- High Integration: This serial to Ethernet module boasts a compact design with high integration, offering excellent value for your investment. Its simplistic development process makes it suitable for quick deployments in various environments.
- Robust Isolation And Versatile Operation: With onboard signal and power isolation along with a wide input voltage range, the 485 ETH PRO is designed for demanding industrial settings.
- Stable Data Transmission: The 485 Ethernet adapter guarantees stable and dependable data transfer with support for high speed, continuous data
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification:

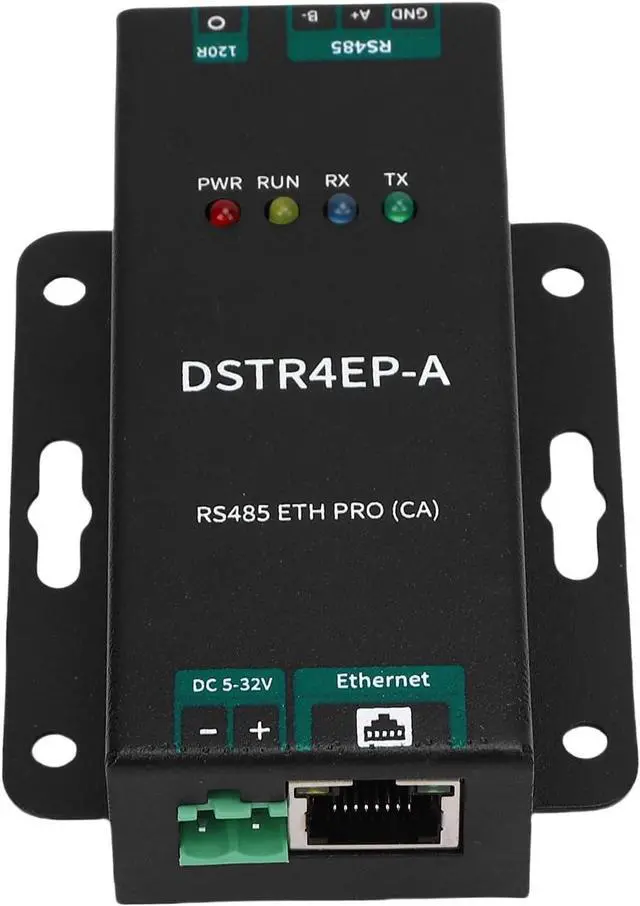

Item Type: 485 ETH PRO Serial to Ethernet Module
Material: Aluminum Alloy
Installation: Mounting with Lugs or 3.5cm Universal Guide Rail
Operating Temperature: -40-85°C

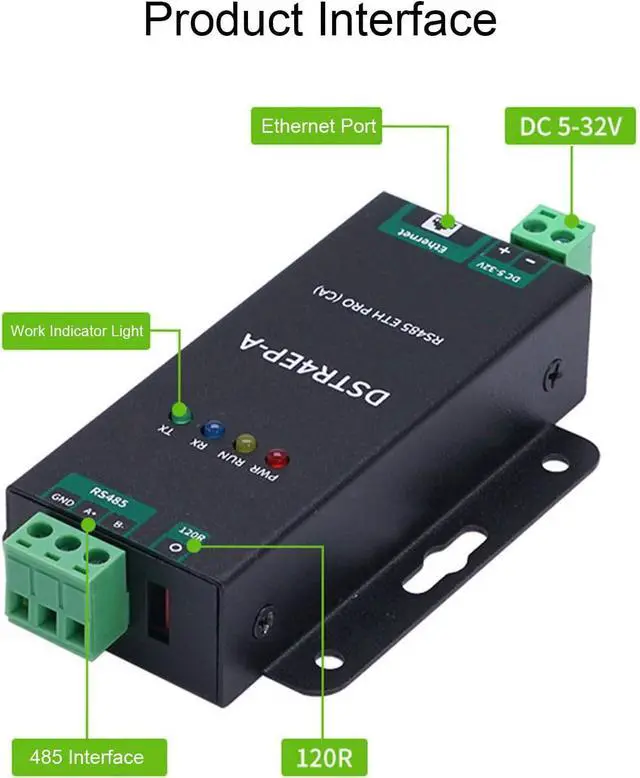

Ethernet Port: RJ45, MDI or MDIX Automatic Line Conversion, Crossover Connection Auto Adaptation
Baud Rate: 300bps-460800bps

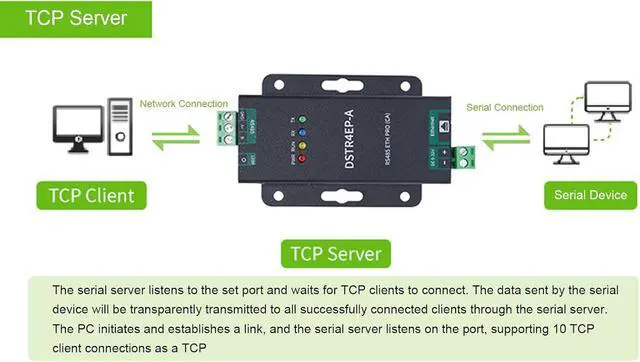

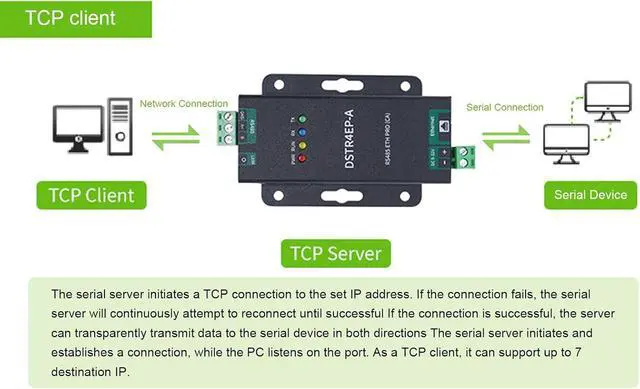

Operating Mode: Server, Client, UDP, UDP Multicast, UDP Dynamic Mode
Conversion Protocols: for Modbus , for , for JSON, for Realcom Protocol, for HTTP
Modbus Gateway: Support Mode, Storage Mode, Preconfigured Table (ZLMB) Mode, Support to RTU or ASCII
IP and Address Resolution: Static or DHCP, Support DNS Resolution
Communication Method: /IP Direct Communication, Virtual Serial Port
Connection Quantity: Server: 10, Client: 7 Destination IP
Configuration: ZLVirCOM Tool, WEB Browser (Customizable Webpage), Device Management Library, Serial AT Command Configuration, Device Cloud Management
PackageList:
1 x Module
2 x Terminal Blocks
1 x Screwdriver
1 x Ethernet cable
Item Type: 485 ETH PRO Serial to Ethernet Module
Material: Aluminum Alloy
Installation: Mounting with Lugs or 3.5cm Universal Guide Rail
Operating Temperature: -40-85°C
Ethernet Port: RJ45, MDI or MDIX Automatic Line Conversion, Crossover Connection Auto Adaptation
Baud Rate: 300bps-460800bps
Operating Mode: Server, Client, UDP, UDP Multicast, UDP Dynamic Mode
Conversion Protocols: for Modbus , for , for JSON, for Realcom Protocol, for HTTP
Modbus Gateway: Support Mode, Storage Mode, Preconfigured Table (ZLMB) Mode, Support to RTU or ASCII
IP and Address Resolution: Static or DHCP, Support DNS Resolution
Communication Method: /IP Direct Communication, Virtual Serial Port
Connection Quantity: Server: 10, Client: 7 Destination IP
Configuration: ZLVirCOM Tool, WEB Browser (Customizable Webpage), Device Management Library, Serial AT Command Configuration, Device Cloud Management
PackageList:
1 x Module
2 x Terminal Blocks
1 x Screwdriver
1 x Ethernet cable
