Bewinner 8 Channel Isolated RS485 USB to Type C Converter with onboard Power Isolation, Surge and Wide Voltage Support for 11 10 8.1 8 7

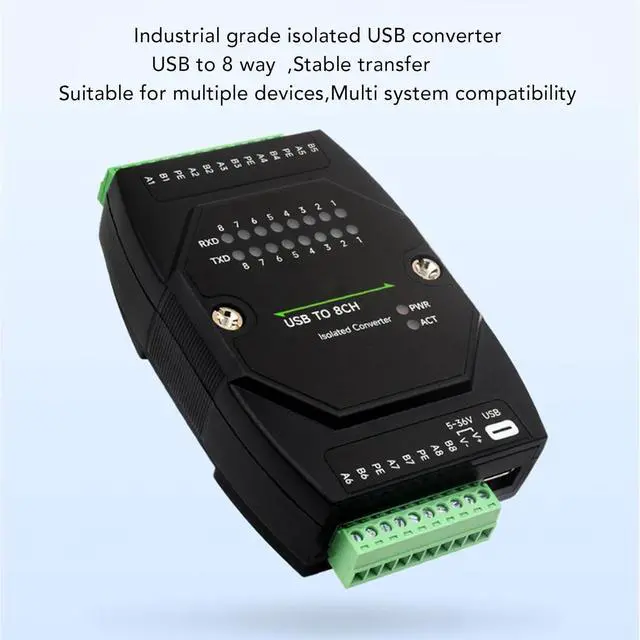

- 8 Port RS485 Converter: Supports USB expansion with 8 channel isolated RS485 communicating interface, making it convenient for users to access multiple RS485 serial devices.
- Convenient Power Supply: Supports USB Type C supply, and also reserves 5V to 36V DC wide voltage auxiliary power supply interface.

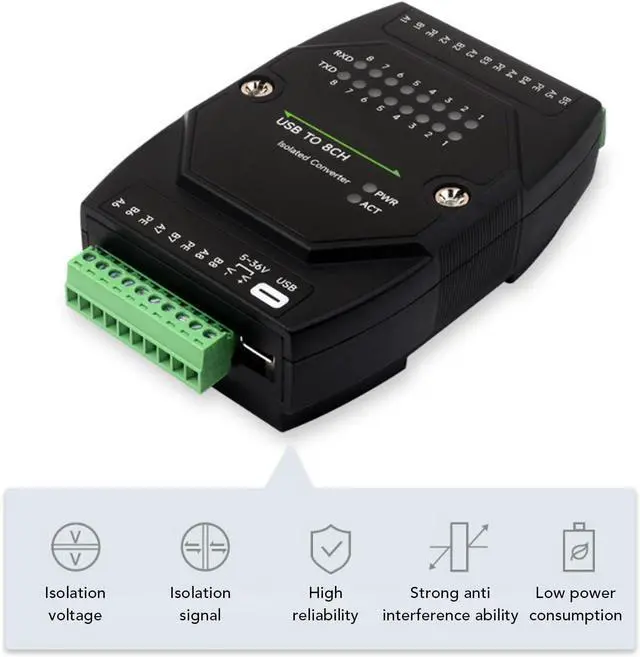

- Isolated Design: Onboard integrated power isolation, providing stable isolation voltage; Onboard integrated digital isolation, capable of signal isolation, with high reliability, strong anti interference, low power consumption.
- Onboard TVS: On board transient voltage suppressor, can effectively suppress surge voltage and transient peak voltage in the circuit, preventing static electricity.
- High Safety: Onboard self recovering fuse and protective diode, ensuring stable output of current and voltage, preventing overcurrent and overvoltage, improving impact proofing.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
6. Flexible Use: The 120R terminal resistor of the onboard RS485 interface can be modified through jumper cap settings for flexible switching.
7. Convenient Indicator Light: External LED indicator light allows for easy viewing of power, device configuration status, and signal transfer and reception status.

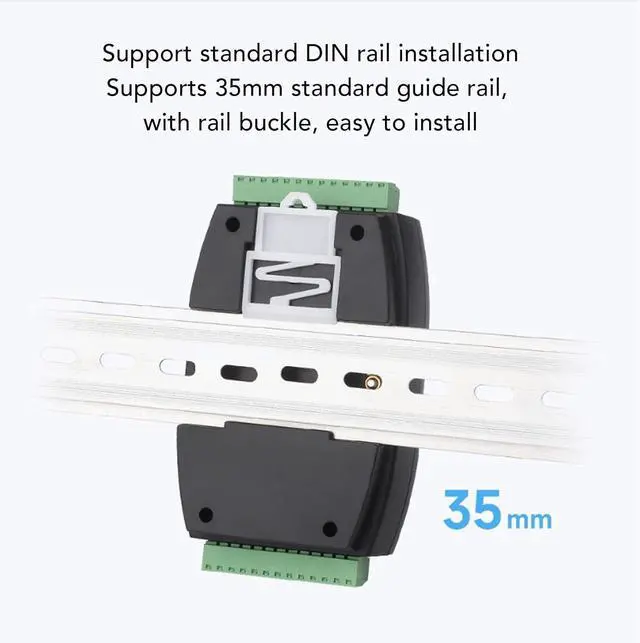

8. Stackable Installation: Rail type housing design, supports stacking combination, the converter is easy to install and safer to use.
Specification:
Item Type: USB to RS485 Converter
Material: ABS
Operating Voltage: 5V
Interface Type: USB C
Interface Protecting: 200mA self recovery fuse, isolated output
Transfer Distance: About 5 meters

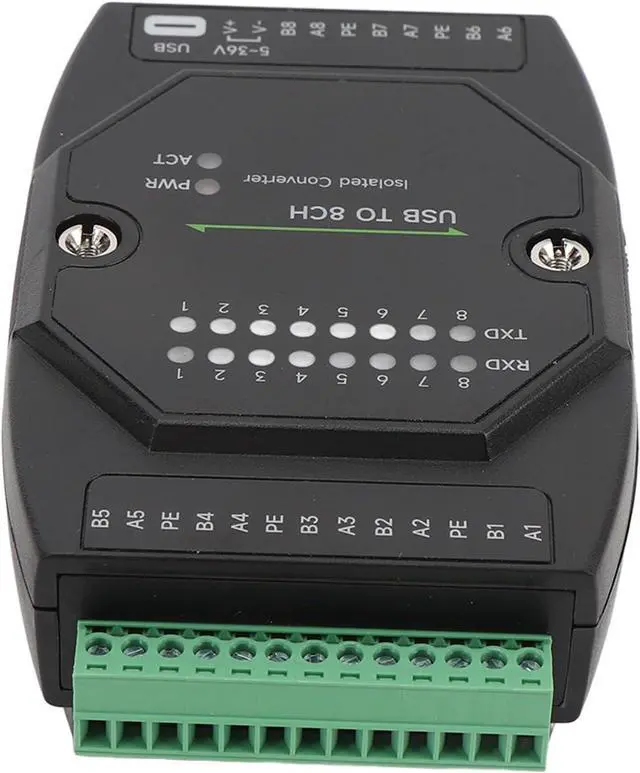

Interface Form: Terminal block
Directional Control: Hardware automatic discrimination and control of data transfer direction
Interface Protecting: Provides 600W surge protecting, and 15KV electrostatic protecting (onboard 120R balance resistor)

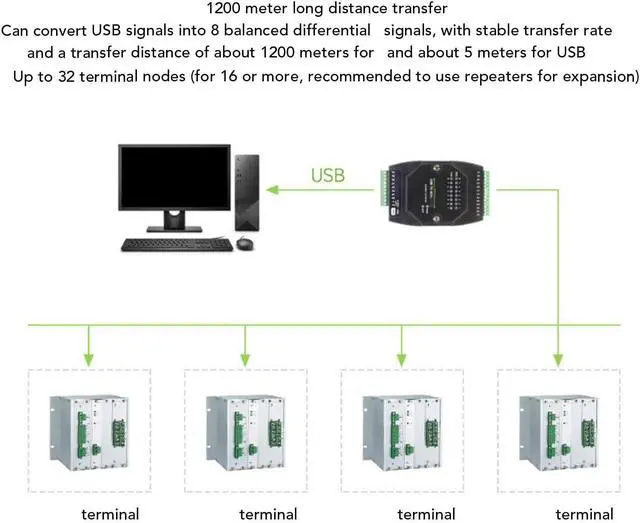

Transfer Distance: About 1200 meters (in low speed situations)
Transfer Mode: Point to multi (up to 32 nodes, recommended to add a repeater for more than 16 nodes)
Communicating Speed: 1200bps to 921600bps

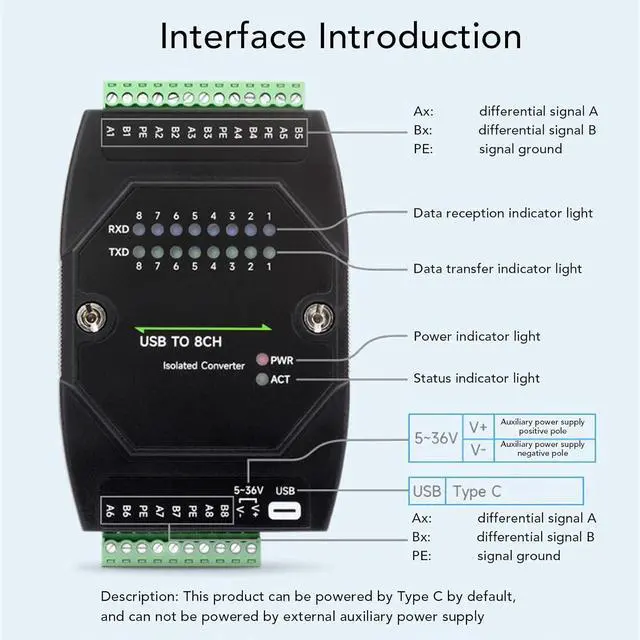

PWR: Power indicator light, connected to USB, red light on when voltage is detected
ACT: Status indicator light, green light on when driver is detected
TXD: Send indicator light, green light on when data is sent from the USB port
RXD: Receive indicator light, blue light on when data is sent back from the corresponding device port
Operating System: for OS X, for Linux, for Android, for WIN 11 10 8.1 8 7
How to Use:
Install and use.
PackageList:
1 x USB to RS485 Converter
1 x Screwdriver
1 x USB Cable
8 Channel Isolated RS485 USB to Type C Converter with onboard Power Isolation, Surge and Wide Voltage Support for Win 11 10 8.1 8 7
