4 Way USB to 485 Serial Port Converter, Industrial Grade Isolation Cable with 1500V ESD Guard for Harsh Environments, ABS Material
- [4 WAY INDEPENDENT PORTS] This USB to 485 converter features four completely independent 485 serial ports allowing simultaneous multi device communication. Supporting USB 2.0/3.0 interface input it seamlessly connects to your host computer while providing dedicated 485 signal output for each channel. The robust design ensures reliable data transmission across all ports without interference.
- [INDUSTRIAL GRADE PROTECTION] Engineered with advanced GDT and TVS protection technology this converter delivers exceptional durability with 600W thunder impulse protection and 1500V ESD guard. These safety features make it ideal for harsh industrial environments where electrical noise spikes and static discharge are common ensuring uninterrupted operation.

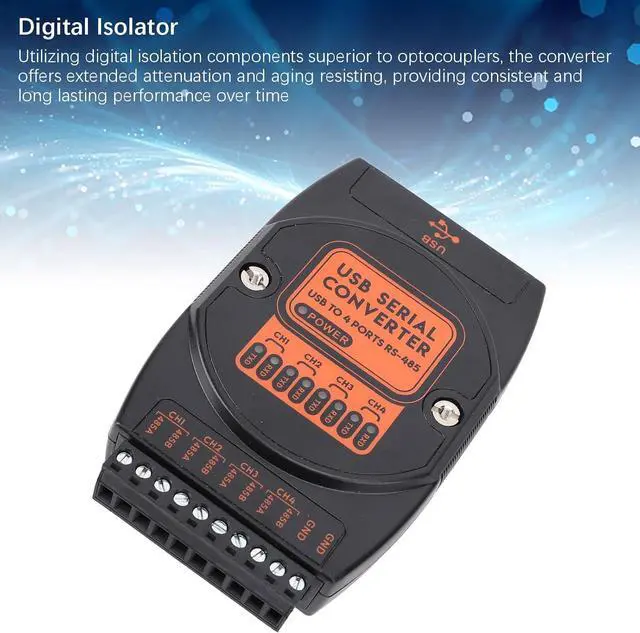

- [DIGITAL ISOLATION TECHNOLOGY] Utilizing superior digital isolation components that outperform traditional optocouplers this converter provides extended signal attenuation resistance and anti aging performance. The innovative design maintains
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Item Type: USB to 485 Converter
Product Material: ABS
Feature: USB to 4 Way Independent 485 Interface
Interface: Compatible with RS 485TIA/EIA Standard

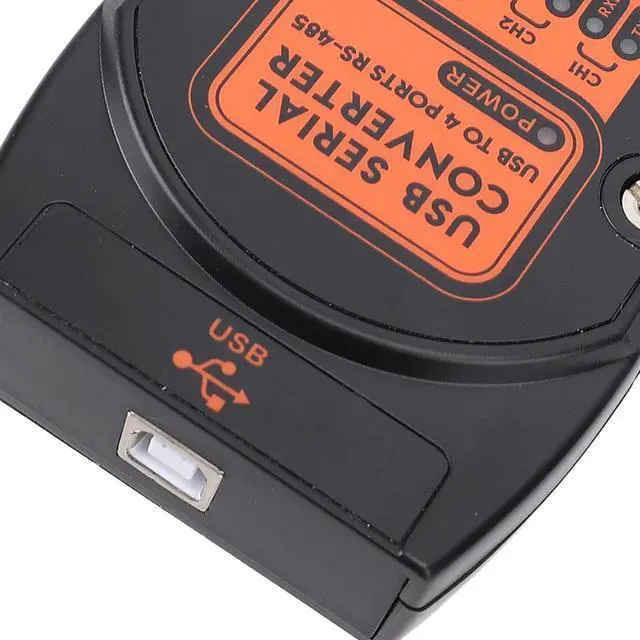

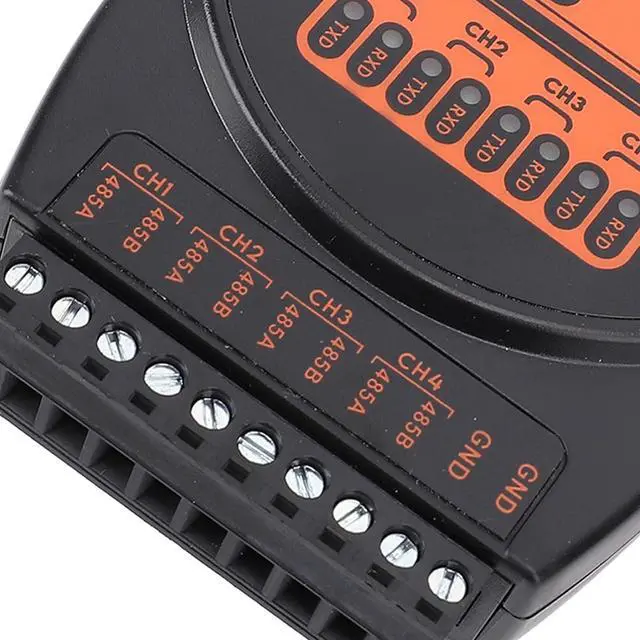

Electrical Interface: USB is USB B socket (square port), 485 interface is 10pin wire terminal
Signal Input: USB2.0 USB3.0 Interface
Signal Output: 4 Way 485 (showing 4 COM ports externally)
Usage Method: USB plug into host (for MASTER), install corresponding driver
Node Support: 32 nodes per way
Isolation Power: 1W
Signal Indication: 9 signal indication lights include power (POWER), transmit (TXD), receive (RXD)
Isolation Level: 1500VESD guard on USB side, continuous DC to DC module
Protective Level: Each line of 485 interface is protected against thunder surges of 600W
Comm Support: Plug and Play with the serial port comm software in use
Transfer Rate: (485) 50bps-12Mbps (specifically according to the specification)
Using Environment: -20 to 85, Relative Humidity: 5% to 95%
Size: Approx. 110 x 72 x 26mm / 4.3 x 2.8 x 1in (45mm / 1.8in thickness with back clip)
Package List
1 x Converter
1 x Connection Cable
Product Material: ABS
Feature: USB to 4 Way Independent 485 Interface
Interface: Compatible with RS 485TIA/EIA Standard
Electrical Interface: USB is USB B socket (square port), 485 interface is 10pin wire terminal
Signal Input: USB2.0 USB3.0 Interface
Signal Output: 4 Way 485 (showing 4 COM ports externally)
Usage Method: USB plug into host (for MASTER), install corresponding driver
Node Support: 32 nodes per way
Isolation Power: 1W
Signal Indication: 9 signal indication lights include power (POWER), transmit (TXD), receive (RXD)
Isolation Level: 1500VESD guard on USB side, continuous DC to DC module
Protective Level: Each line of 485 interface is protected against thunder surges of 600W
Comm Support: Plug and Play with the serial port comm software in use
Transfer Rate: (485) 50bps-12Mbps (specifically according to the specification)
Using Environment: -20 to 85, Relative Humidity: 5% to 95%
Size: Approx. 110 x 72 x 26mm / 4.3 x 2.8 x 1in (45mm / 1.8in thickness with back clip)
Package List
1 x Converter
1 x Connection Cable
