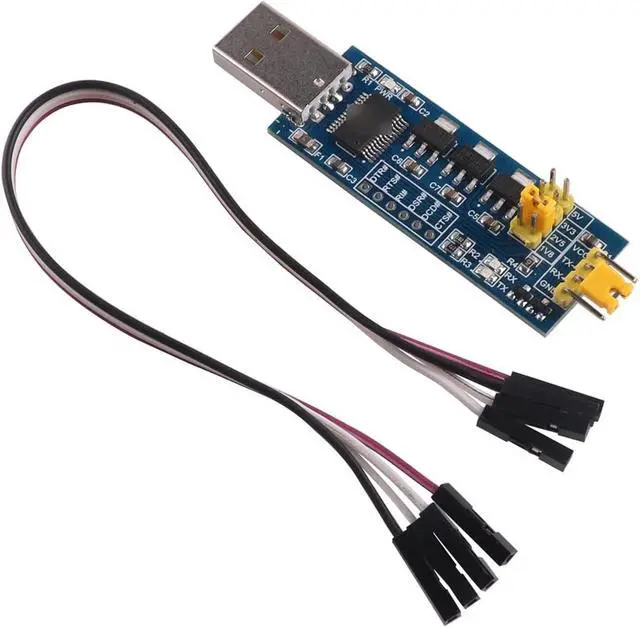

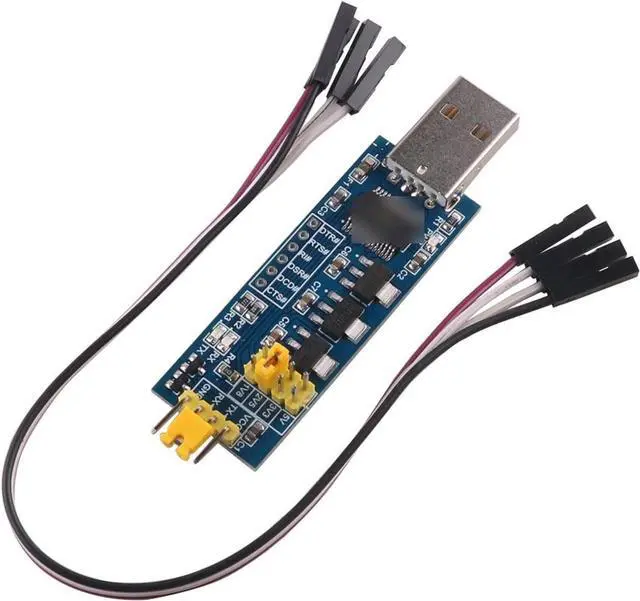

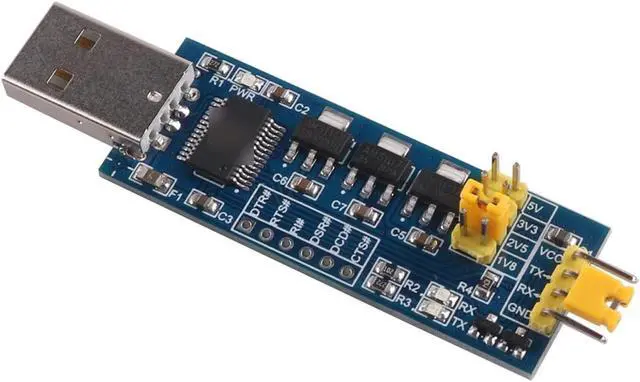

USB to 4P 2.54mm Terminal Block 1.8 2.5 3.3v 5v T-T-L U-A-R-T Logic Level Serial Converter Adapter
- Support Windows/M/Linux 32/64 bit operating system.
- The highest speed is up to 3Mbps (3 times that of 921600), and it supports standard baud rates such as 2400/9600/115200/921600.
- FIFO receive and transmit buffers Compatible With high data throughput.
- 256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow Compatible With high data throughput.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
UART interface support Compatible With 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
Fully assisted hardware or X-On / X-Off software handshaking.
Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).
In-built support Compatible With event characters and line break condition.
New configurable CBUS I/O pins.
Auto transmit buffer control Compatible With RS485 applications.
Transmit and receive L drive signals.
USB bulk transfer mode.
3.3V to 5.25V Single Supply Operation.
Low operating and USB suspend current.
Low USB bandwidth consumption.
UHCI / OHCI / EHCI host controller compatible.
USB 2.0 Full Speed compatible.
-40degC to 85degC extended operating temperature range.
Fully assisted hardware or X-On / X-Off software handshaking.
Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).
In-built support Compatible With event characters and line break condition.
New configurable CBUS I/O pins.
Auto transmit buffer control Compatible With RS485 applications.
Transmit and receive L drive signals.
USB bulk transfer mode.
3.3V to 5.25V Single Supply Operation.
Low operating and USB suspend current.
Low USB bandwidth consumption.
UHCI / OHCI / EHCI host controller compatible.
USB 2.0 Full Speed compatible.
-40degC to 85degC extended operating temperature range.
