EVURU USB to TTL, USB to RS232, USB to RS485 Serial Port Adapter Expanding USB-HUB Multi-Port, Blue

Welcome to my small store, where you can find unique products and high-quality services, providing you with a better service experience

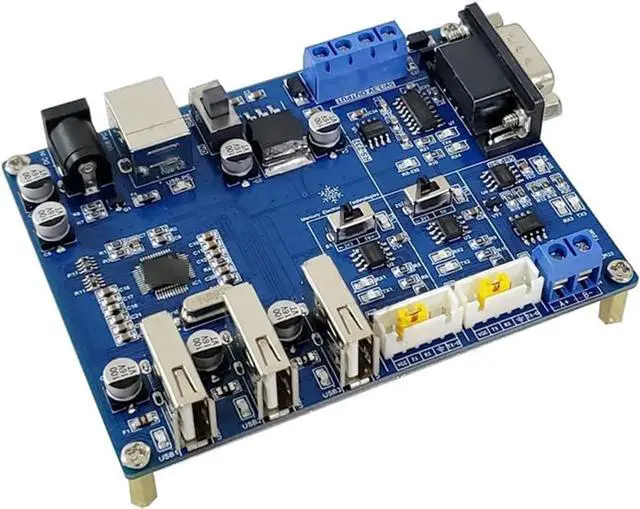

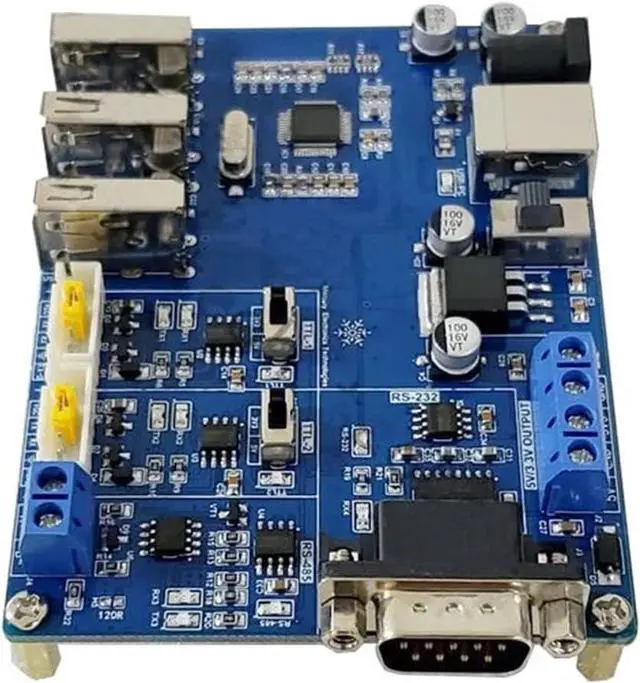

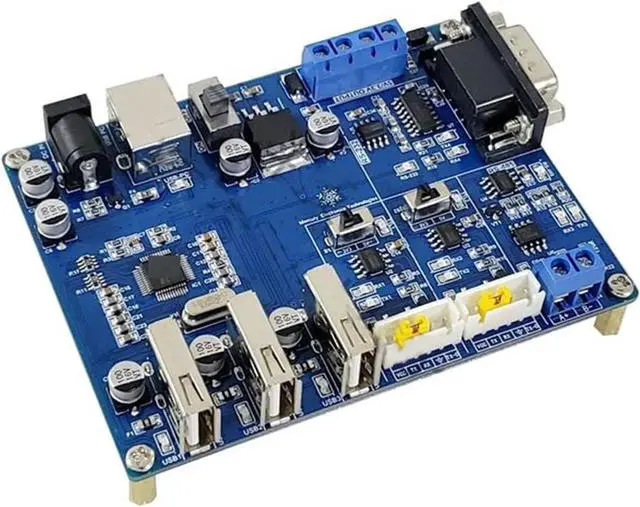

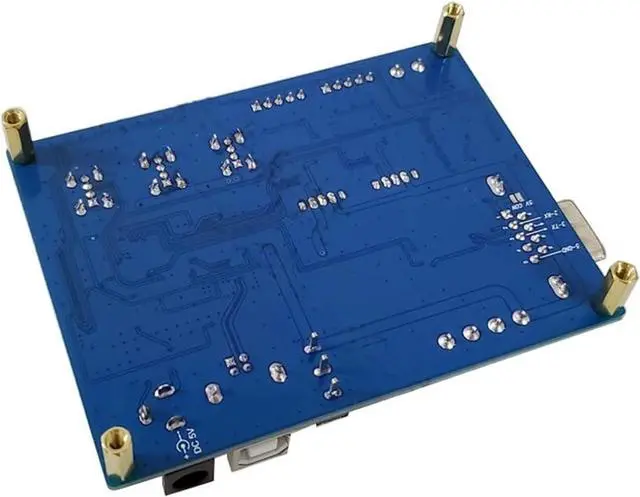

SuperHub USB to TTL, USB to RS232, USB to RS485 Serial Port Adapter Expanding USBHUB Multi-Port

SuperHub can realize USB port expansion, USB to TTL, 232, 485 serial ports and 5V/3.3V power output, which integrates multiple functions to facilitate the development of engineers. This product can realize 3 USB2.0 interface expansion, 2 TTL serial ports (5V/3.3V level switchable), 1 RS-232 interface and 1 RS-485 interface, and provide 1.5A power output (5V /3.3V two voltages, with external power supply.)

All interfaces can be used at the same time, independent of each other, and do not affect each other. The linked computer will display 4 different serial ports (serial numbers are consecutive).

This product has an external 3A power supply and 1 M USB cable Compatible With normal use. When there is no external power supply, the maximum output of 5V/3.3V power supply is 500mA.

Main Feature

Single USB interface expansion, multi-function integration, simplifying operation and wiring.
Support Windows/Linux/M 32/64 bit operating system
Achieve 3 USB2.0 high-speed interface expansion (480Mbps), which is convenient Compatible With connecting to debugging tools such as emulators and U disks.
With USB device insertion monitoring, the corresponding interface L will light up only when the USB device is operating normally.
2 TTL serial port expansion, support 5V/3.3V level switching, speed up to 921600bps.
1 RS-232 serial port expansion, the highest speed is 460800bps
1 RS-485 serial port expansion, the maximum speed is 115200bps.
All serial ports have independent running, sending and receiving indicators.
All functions can be used at the same time, independent of each other without interference.
5V/3.3V power output (in the case of external power supply, 5V maximum
