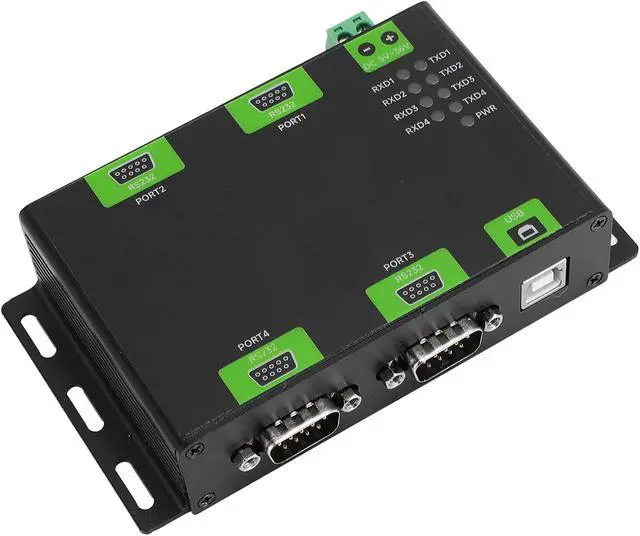

USB to 4CH RS232 Converter Industrial Isolated FT4232HL Chip, Wall Mountable, DB9 Male Adapter, Compatible with and
- : Features original FT4232HL chip for -speed, communication with wide compatibility. Supports 4 isolated RS232 interfaces via USB.
- Durably Construction: Made of aluminum alloy, ensuring durability and . Ideal for industrial environments with its robust .
- Versatile Connectivity: Host interface is USB, device interface is RS232, allowing connection to multiple RS232 industrial serial devices.
- Wide Operating Range: Communicating range of 300bps to 921600bps. Operates in temperatures from -40 to 85, and humidity from 5% to 95%RH.
- User-Friendly : Equipped with 9 external LED indicators for monitoring of supply and waft transmitting/receiving status.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Item Type: USB to for RS232 Converter
Material: Aluminum Alloy
Host Interface: USB
Device Interface: for RS232
Communicating Range: 300bps-921600bps
USB Interface:
Operating Level: 5V
Interface Format: USB B Type Interface
Interface Guard: 200mA Self Recovery Fuse, Isolated Output
Transmission Distance: About 5m/16.4ft
Power Supply Interface:
Power Supply Voltage: 5-36V DC Power Supply Terminal
Interface Guard: Anti Reverse Connection
For RS232 Interface:
Interface Form: For DB9 Male

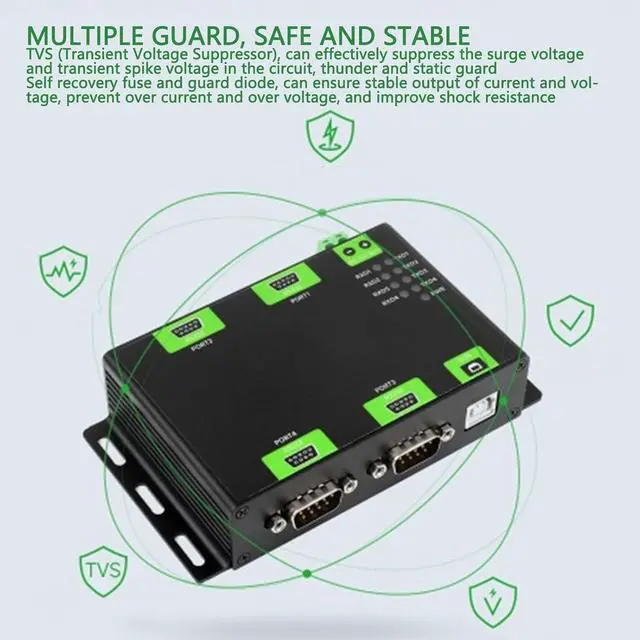

Interface Guard: TVS Tube Guard, Surge and Static Guard
Transmission Distance: Approx. 15m/49.2ft
Transmission Mode: Point to Point
Indicator Light:
PWR: Power indicator, access to the USB, the detection of voltage will light up red
TXD: Transmit indicator, green lamp when data is sent from the for RS232 interface
RXD: Receive indicator, blue lamp when there is data sent back from the for RS232 interface
Use Environment:
Temperature Range: -40 to 85
Humidity Range: 5% to 95%RH
Operating System: For OS X, for Linux, for Android, etc
Package List
1 x USB to for RS232 Converter1 x Adapter
1 x USB Cable
Note:
Manual measurement, please allow some errors.
