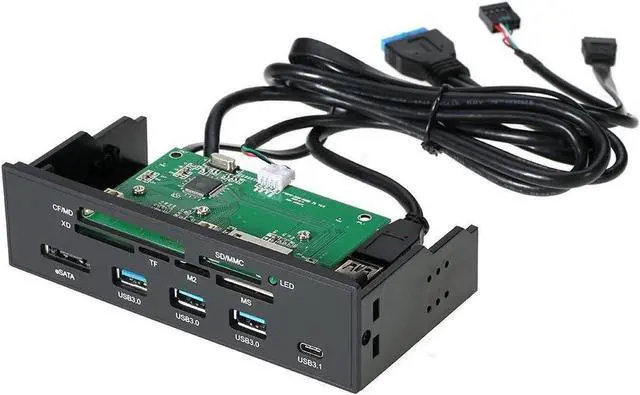

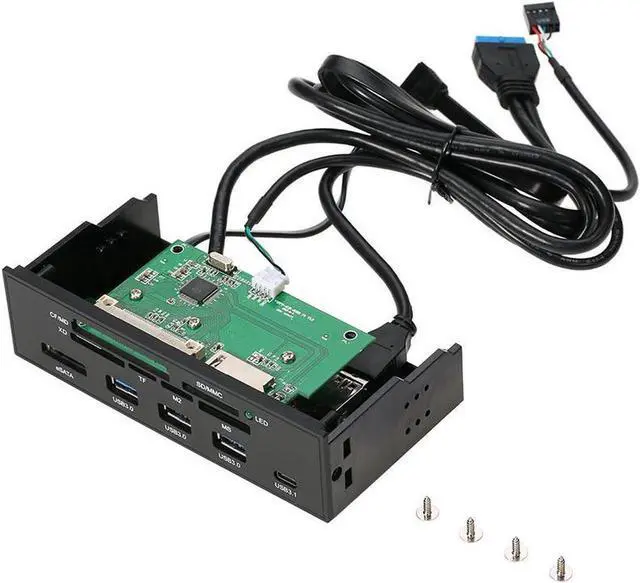

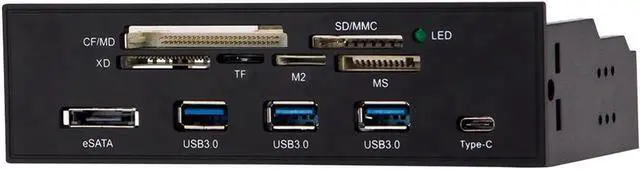

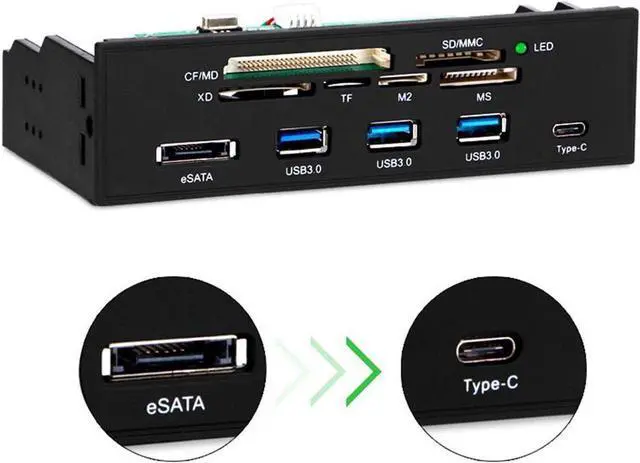

5.25 inch PC Case Front panel All-in-1 Multifunction USB 2.0 Card Reader w/ 3 Port USB3.0,Type-C, eSATA ,Support MD,SD/MMC,XD,TF,M2,MS,64G CF Card

A multi-function front panel device with USB 3.0 hub, card reader, USB 3.1 port, and eSATA port. It supports Super Speed USB 3.0 up to 5 Gbps bandwidth with three front accessible USB Type-A ports, one front accessible USB 3.1 Type-C port, one front accessible eSATA port, and all in 1 high speed card reader. The high speed card reader is compatible with most popular formats of flash media on the market, SD/MMC/SDHC, CF/CF II/HS CF/MD, MS/MS Duo/MS Pro, XD, TF/T-Flash, M2. The USB 3.0 hub is also backwards compatible with USB 2.0 /USB 1.0 /USB 1.1.
It provides easy access of your data through the front panel, with it is convenient design it is a must have solution with all your PC components.

Features

Super Speed USB 3.0 supports up to 5 Gbps of bandwidth
Three front accessible USB 3.0 Type-A ports
One front accessible USB 3.1 Type-C port
One front accessible eSATA port
All in 1 high speed card reader
Support SD/MMC/SDHC, CF/CF II/HS CF/MD, MS/MS Duo/MS Pro, XD, TF/T-Flash, M2
Maximum capacity of the memory read up to 64GB
Backward compatible with USB 2.0 /USB 1.0 /USB 1.1
Fit any 5.25 Inch computer case front bay

Multi-function 5.25 front panel
Special design front panel for multi-function purpose
Offers 3 x USB 3.0, 1 x USB C, 1 x eSATA, interface
Up to 5 Gbps data transfer rate for all USB type-A and type-C ports
USB 3.0 ports are backwards compatible with USB 2.0 & 1.1
eSATA port support SATAIII data transfer speed up to 6Gbp, backward to SATA 3Gbps and SATA 1.5 Gbps
6 card reader slots for complete accessibility

USB 2.0 Internal card reader
6 card slots offer quick and easy access to the most common-used card formats, support SD/MMC/SDHC, CF/CF II/HS/ CF/MD, MS/MS Duo/MS Pro, XD, TF/T-Flash, M2 card
This high speed card reader writer, let you transfer files between your flash media and computer easily and quickly
Data transfer speed up to 480Mbps
Maximum capacity of the memory read up to 64GB

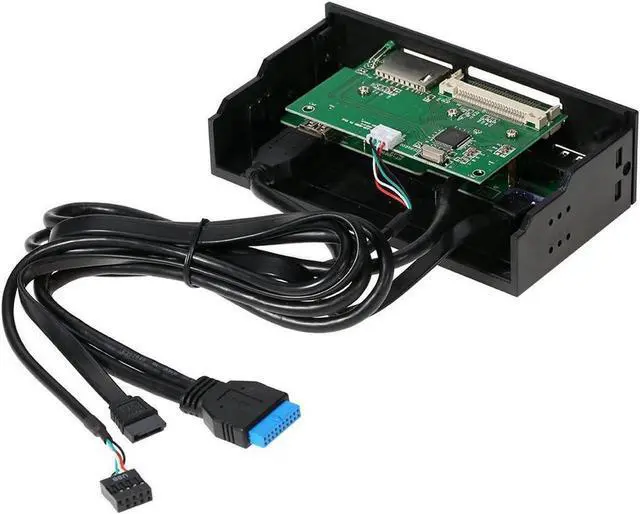

Motherboard Connection
USB 3.0 20pin motherboard header is needed for 3x USB 3.0 and USB-C ports
SATA 7pin data header is needed for eSATA port(Just for data transfer, extra power for eSATA device is necessary)
USB 2.0 10pin motherboard header is needed for internal card reader

Specifications

Product Name: USB 3.0 Hub w/ Card Reader Includes 1 USB 3.1 Port
Material: ABS/Plastic
Interface: USB 3.0 / USB 3.1
Dimensions: 5 7/8" W x 1 11/16" H x 3" D
Output Interface: USB 3.0
Interface:
1 x eSATA Port, 3 x USB 3.0 Type-A Ports, 1 x USB 3.1 Type-C Port
USB ports Transfer Rate: Up to 5 Gbps
6 Slots Card Reader
Weight: 0.45 lbs
Color: Black
Supported Systems: Windows 10/8/7/Vista/XP, Mac OSX 10.2 +
