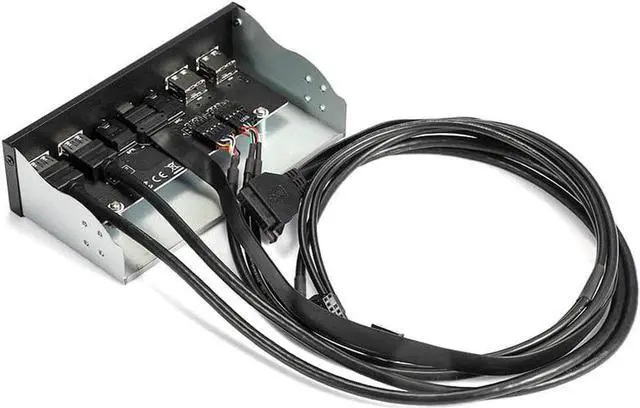

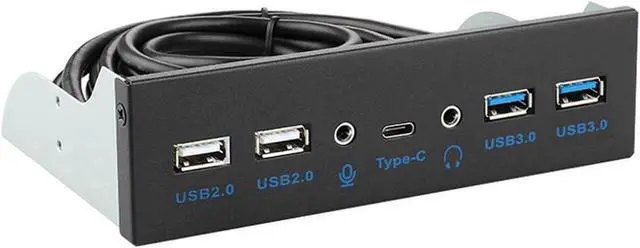

5.25" Optical Drive USB Type C (10Gbps) Front Panel Computer Case Expansion Board w/ USB 3.1 Motherboard Header 20Pin Key-A,7 Ports Support Type-C, USB 3.0, USB 2.0, HD Audio & Microphone

Features

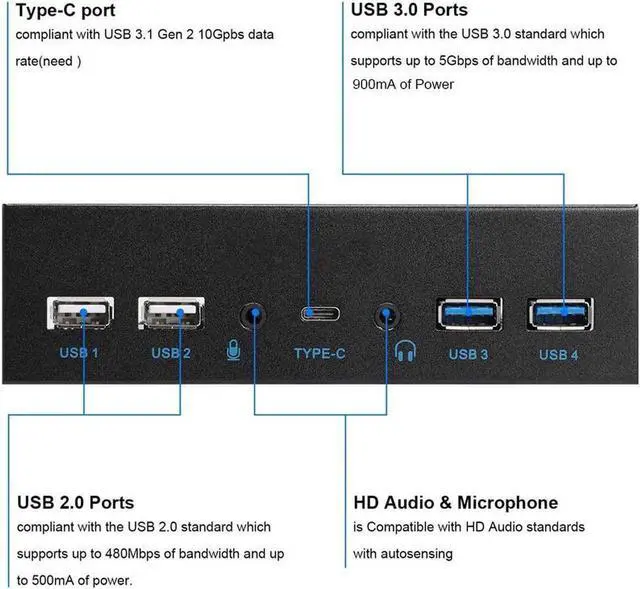

5.25 -inch Front Bay to 5-Port USB Panel Hub and 1 HD Audio Port/1 Microphone Port
Turns any available 5.25 -inch computer case front bay into a 5 Port USB hub, USB 3.1 Gen 2 Type-C, 2 ports USB 3.0 and 2 ports USB 2.0
Type-C port, compliant with USB 3.1 Gen 2 10Gpbs data rate
USB 3.0 Ports, compliant with the USB 3.0 standard which supports up to 5Gbps data transfer and up to 900mA of current output.
USB 2.0 Ports, compliant with the USB 2.0 standard which supports up to 480Mbps data transfer and up to 500mA of current output.
HD Audio & Microphone is Compatible with AC 97 or HD Audio standards with autosensing
Installation is quick and easy, and the unit is plug and play.
Simply fit the bay into the space with the screws provided,

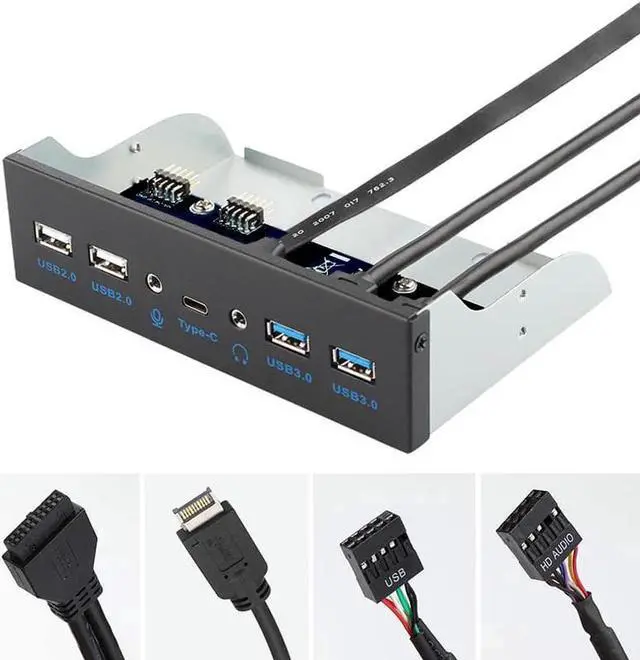

Plug the bay into the USB 3.1 20Pin A-Key, USB 3.0 19/20 pin connector and USB 2.0 10pin connector on the motherboard, and you're all set.


Note

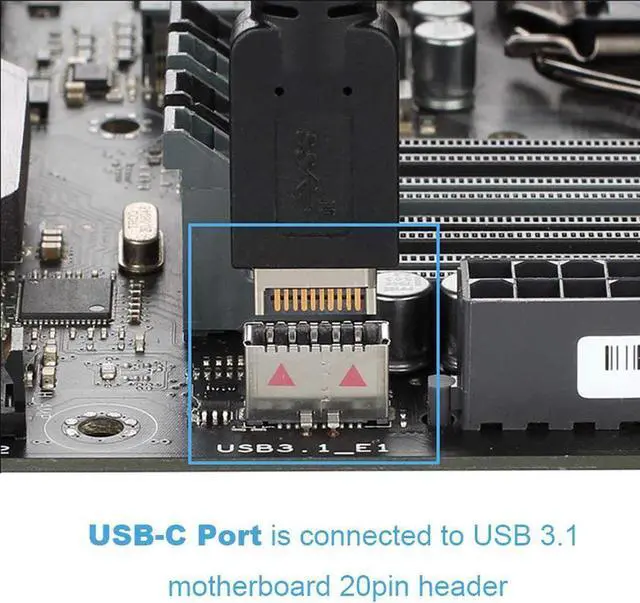

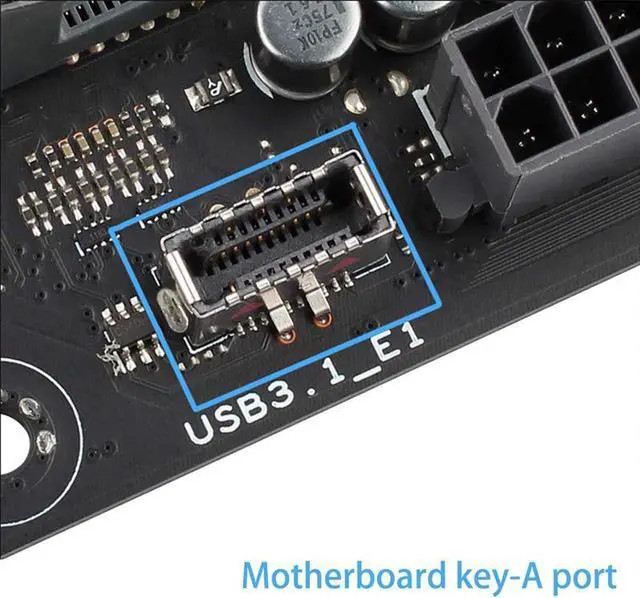

One USB 3.1 20pin Motherboard header (aka Type-E) is needed for USB-C Expansion
One 20 pin USB 3.0 and 10pin USB 2.0 header on motherboard are needed for USB 3.0 and USB 2.0 ports expansion
HD Audio 10pin header on motherboard is needed for audio and mic. port


Specification

Ports: USB Type-C+2 x USB 3.0 & 2 x USB 2.0 Female+ 3.5 Stereo Audio & Mic.
Fits: 5.25" Open Bay Space
USB-C Data Transfer Speed: USB 3.1 GEN2 10Gbps
USB 3.0 Port Data Transfer Speed: USB 3.0 5Gbps
USB 2.0 Port Data Transfer Speed: USB 2.0 480Mbps
Support USB 3.1 Specification, Backwards compatible with USB 1.1, USB 2.0, USB 3.0
Compatible with Windows XP/Vista/7/8/ 8.1
Plug and Play
Hot Swappable
