192KHZ digital-to-analog audio converter, fiber-to-analog-to-digital video converter, DAC audio converter

Note!

1. Before power on, you must turn the adjustmentknob counterclockwise to minimize the volume to avoiddamage to your hearing!

2. Before use, please set the audio output channel ofyour signal source devices such as DVD, TV, PS4 andother devices to SPDIF, and set the output audio formatto PCM.

Introduction:

This product is designed for professional audio signals, Can easily convert Coaxial or Toslink interface to RCAanalog audio interface and 3.5 mm headphone jack. Theprofessional audio amplifier chip and volume adjustmentknob are designed to directly drive the headphones andadjust the output volume. The product also designed abass adjustment knob, which can easily control the bass

component to meet different customer needs.

Features:

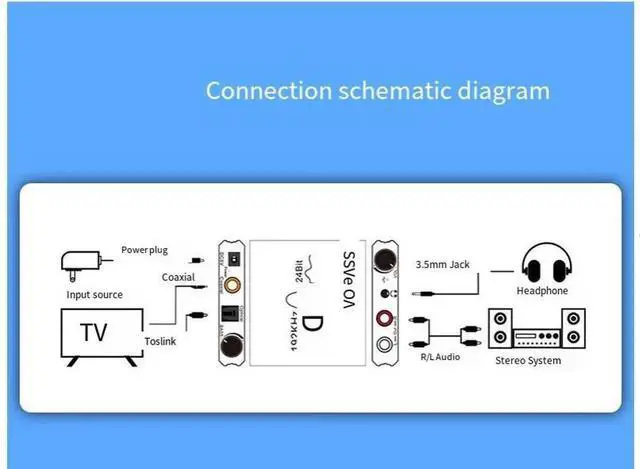

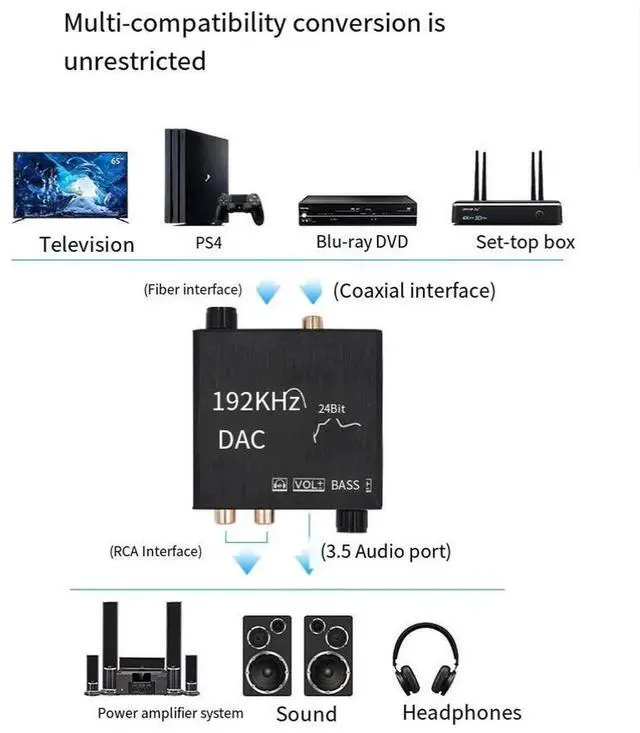

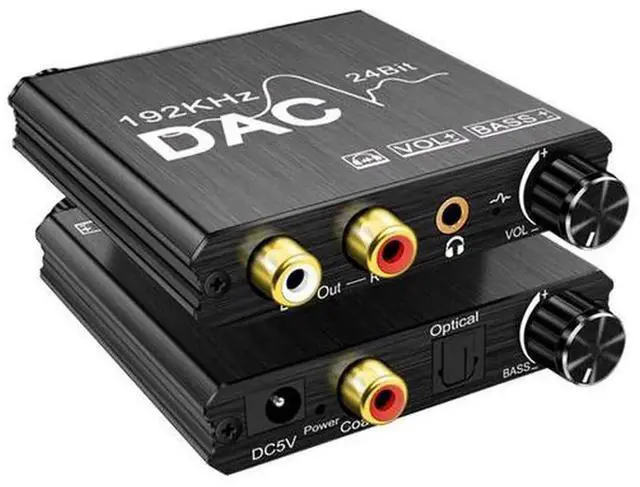

1. One optical fiber and one coaxial input interface. Connect to DVD, HD player and other devices

2. One RCA output interface, connected to the poweramplifier system

3. One channel 3.5 mm audio output interface, Connected to headphones.

4. Eliminate the noise when there is no input signal, -and automatically mute when the non-audio signalis input.

5. Support 192kHz 24bit sampling rate.

6. Support volume adjustment

7. Support bass adjustment

8. Metal shell, anti-interference

Specification:

Support Audio Format................................................................................................................................................ PCM

Separating Degree (1KHZ)......................................................................................................................................... 94DB

Response Frequency............................................................................................................................ 20Hz~20KHz - 0.2 db

Signal-to-Noise Ratio (SNR)..................................................................................................................................... -100DB

Total Harmonic Distortion(THD+N)............................................................................................... 10Hz~20KHz 0.25 - 0.065 %

Blocking Time...................................................................................................................................................... 0.577F s

Sampling Rate............................................................................................................................................... 32~192 KHz

Bit Rate............................................................................................................................................................ 16~24 Bit

Output Electrical Level.................................................................................................................................................. 7V

Earphone Output Power............................................................................................................................. (RL=32)30mW

Output Impedance............................................................................................................................................... 47 ohms

Working Voltage.......................................................................................................................... +5V.

Maximum Voltage: 6V

Maximum Power Consumption................................................................................................................................. 100mA

Operating Temperature Range............................................................................................................................... -10-70

Storage Temperature Range................................................................................................................................... -60-150

Operating Humidity Range............................................................................................... 10% - 80%RH (NoCondensation)

Storage Humidity Range.......................................................................................................... 5- 90%RH (No Condensation)

Size............................................................................................................................................... 76mm x70mm x16mm

Gross weight............................................................................................................................................................ 150g
