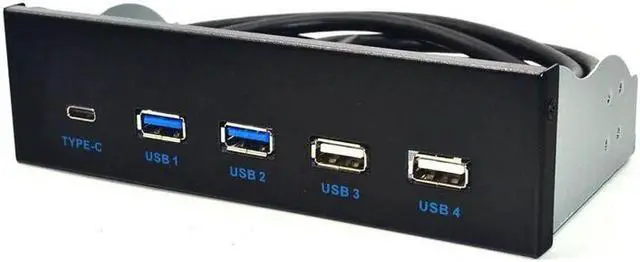

5.25 Inch USB 3.1 GEN2 Front Panel USB Hub 2 Ports USB 3.0 + 2 Ports USB2.0 + 1 Port TYPE-C with TYPE-E Connector for Desktop PC

Material: ABS & Metal

Color: Black & Blue

Wire length: 80CM

Product Interface: 1Port USB 3.1 TYPE-C + 2 Port USB 3.0 + 2 Port USB 2.0

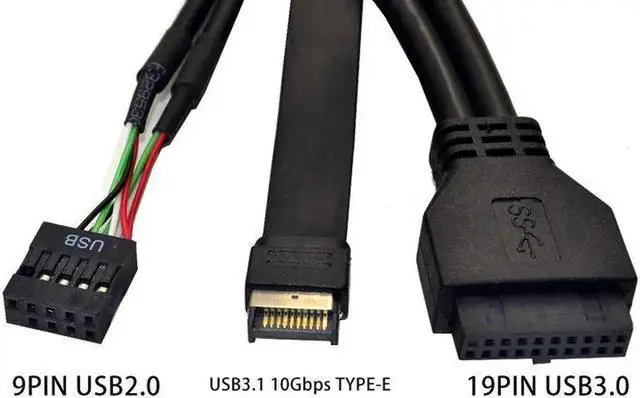

Input Interface: TYPE-E, USB 3.0 19Pin, USB 2.0 9Pin

Interface Rate: 10Gbps, 5Gbps, 480Mbps

Support System: WINXP/7/8/10/2003/MAC/Linux

Weight: about 280g (including packaging)

Mounting Options: 5.25 inch CD-ROM Drive Bay

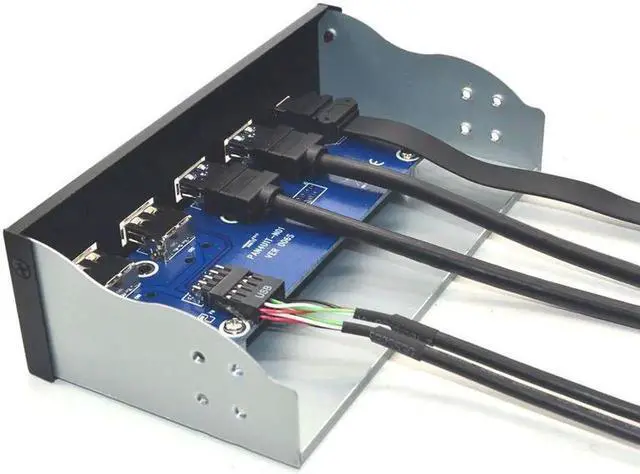

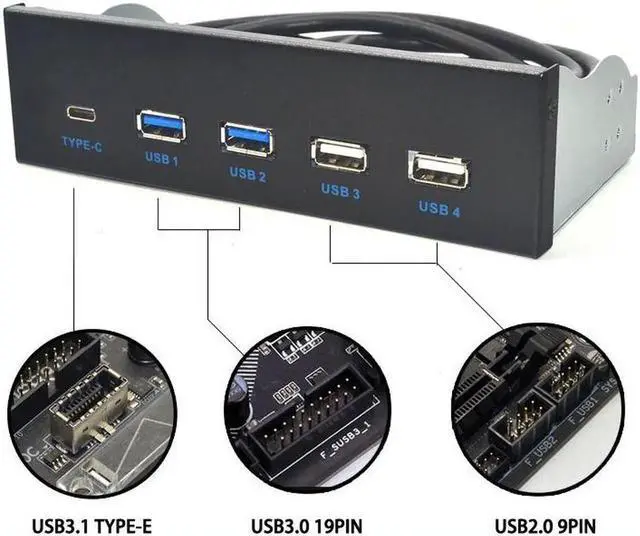

Product use: With the popularity of USB 3.0, more and more motherboards now have a USB 3.0 19pin socket, the chassis does not have a front USB 3.0 port, you can use this panel, as long as through the panel A 19PIN, 9pin and TYPE-E socket is plugged into the mainboard, which leads to 2Port USB 3.0, 2 Port USB 2.0 and USB 3.1 GEN2 TYPE-C ports and is installed in an idle optical drive.

Hardware requirements:

With One USB 3.0 20Pin interface, two USB 2.0 9Pin interface and One TYPE-E interface boards or adapters, with a 5.25 -inch optical drive chassis.

1. 2 port usb 3.0 hub with port Backward compatible with USB 2.0 /USB 1.1 /USB 1.0.

2. Connect to USB 3.0, USB 2.0, USB 3.1 Type-C devices.

3. Fit any 5.25 inch computer case front bay SuperSpeed USB 3.1 Gen2 TYPE-C supports up to 10 Gbps of bandwidth.

4. Support variety of USB devices including scanners, printers, digital cameras, camcorders, speakers, mice, keyboards, external drives, MP3 players and more.

Packing List:

1 x USB Front Panel
