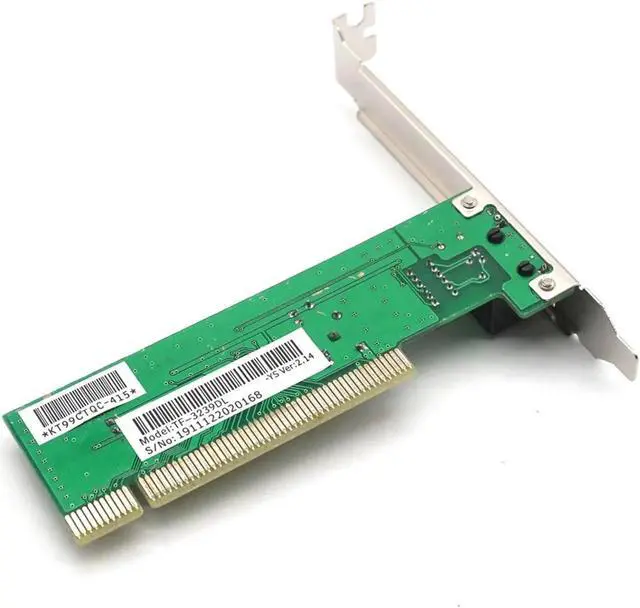

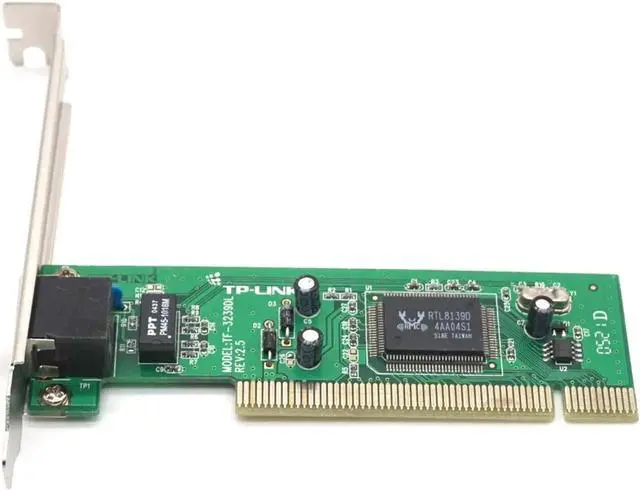

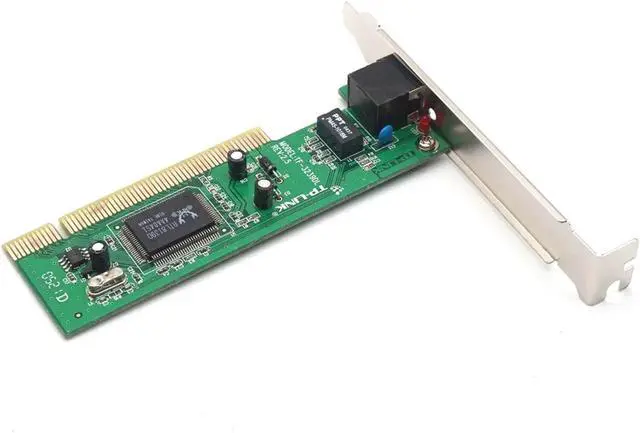

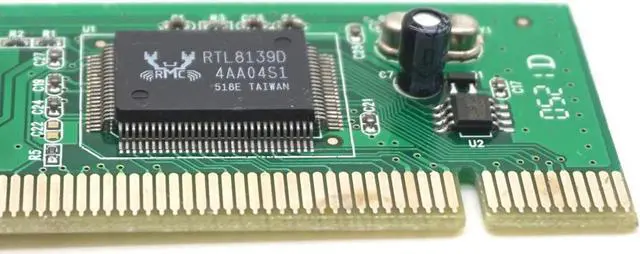

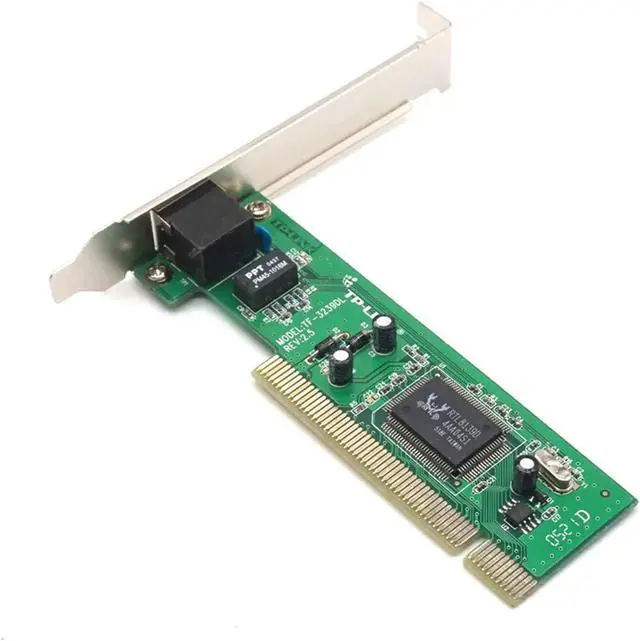

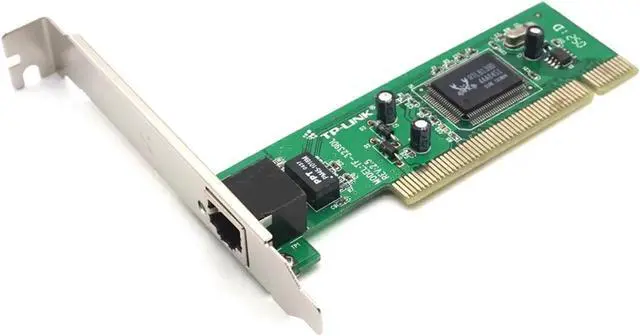

TF-3239DL PCI Realtek RTL8139D 10/100M 10/100Mbps RJ45 Ethernet Network Lan Card Adapter High Quality Network PCI Card

Features:

PCI 32-bit Bus Master architecture.

Very easy Cuts back on CPU usage versus a 10/100Mbps card

Easy, Cost-feefecitve migration to Ethernet over existiong CAT-5 cabling,High Perfoming, auto-negotiating 10/100 connections.

Lower support costs through advanced management capabilities The Adapters support both 10Mbps and 100Mbps network speed Plug and Play installation,easy to operate and supports Auto-Negotiation function.

Complies with the IEEE802.3u Fast Ethernet, 100Base-TX standard and IEEE802.3 CSMA/CD 10Base-T standard.

LED indicators for installation verification and diagnostic purpose, link and active.

IEEE 802.3/802.3u Auto-Negotiation for automatic selection of 10Mbps or 100Mbps data transmission speed.

Characteristics;

Standard; IEEE802.3, 802.3u, 802.3ab, 802.2, 802.3x, 802.1p/Q, 10Base-T, 100Base-TX

Data Transfer Rates; 10/100Mbps

Connectors; RJ-45

Bus: 32-bit PCI 2.3

On-board Memory; 64KB

Support; Windows 2000/XP/NT 4.0/98 SE/ Me, DOS/DOSODI, Linux 2.2.5 or Later

Special Features; WfM Baseline v2.0 Enabled for Servers, DMI 2.0 Support, WMI and SNMP-manageable, Offline Diagnostics, Wake on LAN, Intel Boot Agent

Package Included:

1 x Network PCI card
