PoE Ethernet/USB HUB HAT for Raspberry Pi Zero/Zero W/Zero WH, 3X USB 2.0 Ports, 10M / 100M RJ45 Port, 802.3af-Compliant
- Designed for Raspberry Pi Zero, compatible with Zero series boards
- Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port
- PoE (Power over Ethernet) feature, 802.3af-compliant
- Fully isolated SMPS (Switch Mode Power Supply); 3x extended USB ports, compatible with USB 2.0 / 1.1
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features

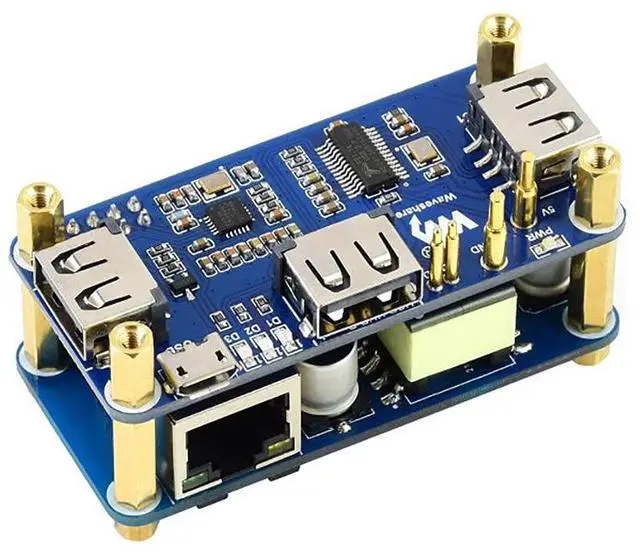

The PoE/ETH/USB HUB HAT is a PoE (Power over Ethernet) USB HUB HAT designed for Raspberry Pi Zero. By using this small HAT and some proper
802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Pi in only one
Ethernet cable, along with 3x extended USB ports.
Designed for Raspberry Pi Zero, compatible with Zero series boards
Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port
PoE (Power over Ethernet) feature, 802.3af-compliant
Fully isolated SMPS (Switch Mode Power Supply)

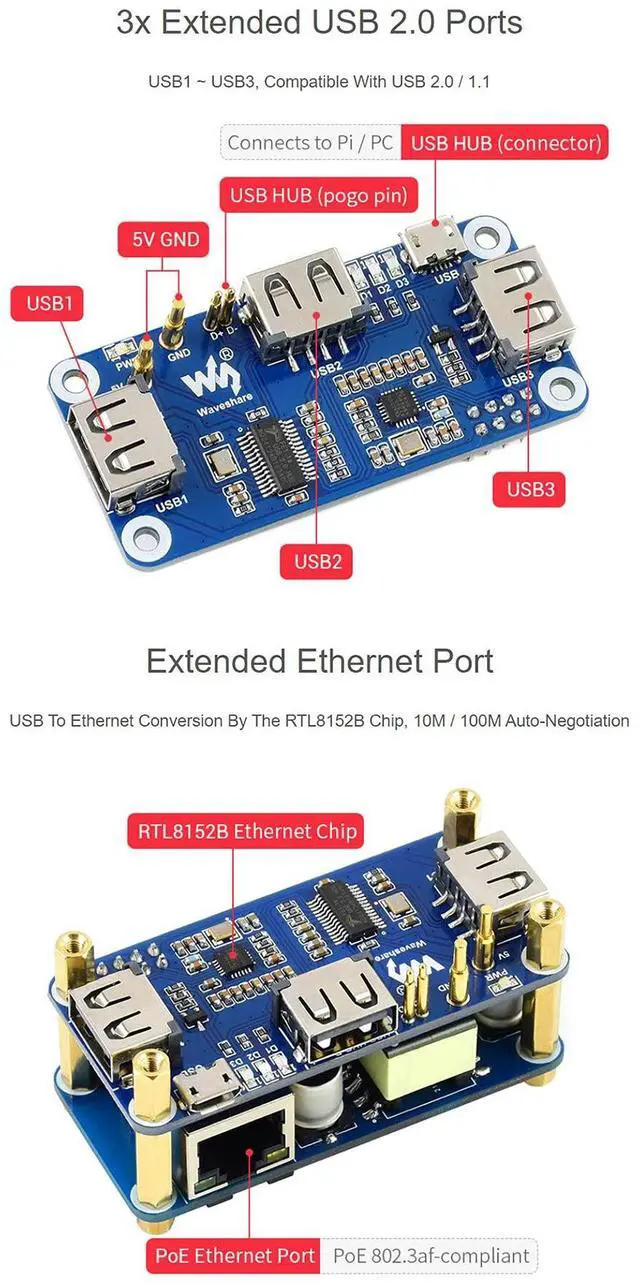

3x extended USB ports, compatible with USB 2.0 / 1.1
Package List
1. PoE/ETH/USB HUB HAT x1
2. USB HUB Board x1
3. Screws pack x1
4. Screwdriver x1
Resources download: //www.waveshare.com/wiki/PoE/ETH/USB_HUB_HAT
