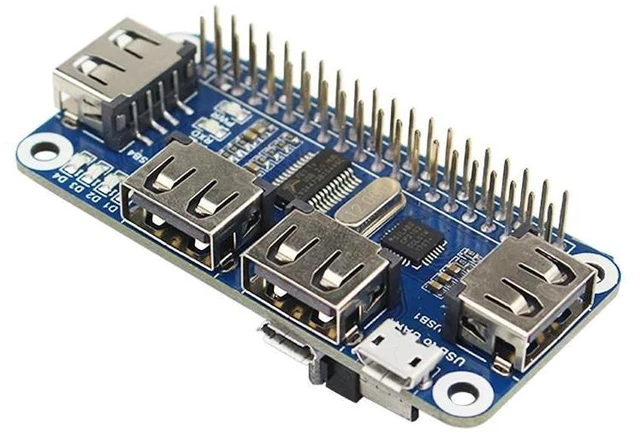

4-Port USB Hub HAT Expansion Board USB 2.0/1.1 GPIO Interface USB to UART Serial Debugging Adapter 5V CP2102 Converter with USB Port Indicators Micro USB Cable and Adapter 65mm by 30mm
- Four USB expansion ports provide USB1 through USB4 connectivity and support USB 2.0 and USB 1.1 transmission.
- Integrated USB-to-UART function supports serial debugging and control through a serial terminal connection.
- Dedicated D1 through D4 indicators correspond to USB1 through USB4, allowing status visibility for each USB port.
- Separate power and USB-to-UART indicators provide visual access to board power and serial interface status.

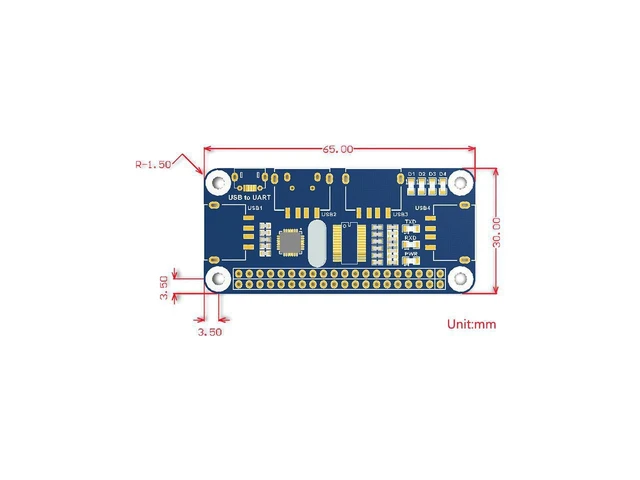

- Operates at 5V and measures 65 mm × 30 mm for a compact USB expansion board format.
- Built with 3.0 mm fixed mounting holes to support secure board installation.
- GPIO interface is provided for connection to a compatible single-board computer.

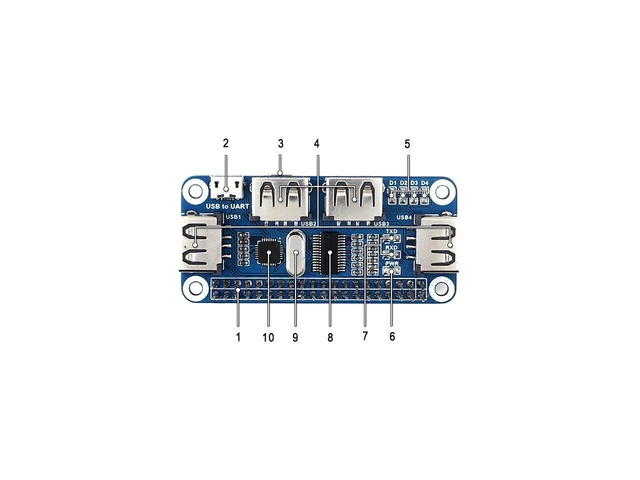

- Bottom USB hub interface connects the hub board to the host USB port; USB extended ports are arranged as USB1 to USB4.
- Uses an FE 1.1S USB hub chip, CP2102 USB-to-UART converter, and 12 MHz crystal.

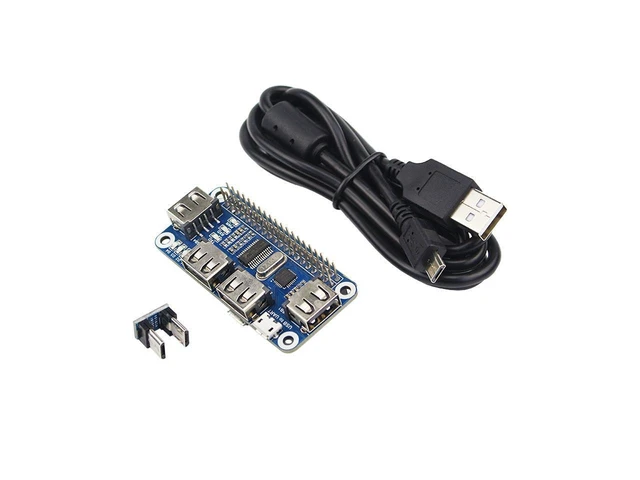

- Package includes a USB Hub Extension Board, Micro USB cable, and Micro USB adapter.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Description:
USB hub extension board with four USB expansion ports and an integrated USB-to-UART function for serial debugging. It helps expand available USB connectivity while providing serial terminal control.
Core Selling Points:
Four USB expansion ports support USB 2.0 and USB 1.1 transmission. Dedicated D1-D4 indicators correspond to USB1-USB4, with additional power and USB-to-UART status indicators for connection monitoring. The board integrates an FE1.1S USB hub chip, CP2102 USB-to-UART converter, and 12 MHz crystal.
Technical Specifications:
Operating voltage: 5V. Product size: 65 mm × 30 mm. Fixed-hole diameter: 3.0 mm. Interfaces include a GPIO connector, USB-to-UART port, bottom USB hub interface, and USB1-USB4 expansion ports. USB-to-UART is designed for serial terminal control. USB hub interface connection supports a Micro USB connector or Micro USB cable depending on the connected device.
Package Contents:
USB Hub Extension Board; Micro USB Cable; Micro USB Adapter.
Before Purchase:
Check the required 5V operating voltage, 65 mm × 30 mm board size, 3.0 mm mounting-hole diameter, and available GPIO, USB, and Micro USB connection method before purchase. The board is not intended for WH versions.
