USB3.2 GEN1 5Gbps Type C & 2 x USB-A Hub 3.5 Front Panel USB 3.0 SD/Micro SD/TF 3.5" Internal Card Reader with 4-Pole 3.5mm HD-Audio for 3.5 inch Floppy Disk Bay

Features

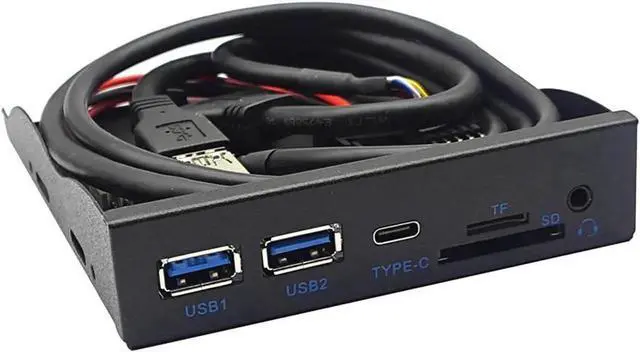

3.5 inch USB Hub Front Panel & Internal Card Reader - Convert your 3.5 inch floppy disk drive space into 1x Type-C & 2 USB-A ports, 1 SD slot, 1 Micro SD slot. Increase the scalability of desktop computers to meet various needs.

Super Speed Data Transfer - The USB 3.2 Gen1 front panel uses the latest USB 3.2 Gen1 high quality chip with a maximum transmission speed of 5Gbps. It is backward compatible with USB 3.1 /USB 3.0 / 2.0 / 1.1 / 1.0 devices. Support fast charging and high speed transmission simultaneously.

USB 3.0 Card Reader - Fast data/ files access and transfer rate up to super-speed (5GPS) through SD/Micro SD/TF slots

4-Pole 3.5 mm HD-Audio jack is equipped. HD Audio & Microphone is Compatible with HD Audio standards with autosensing

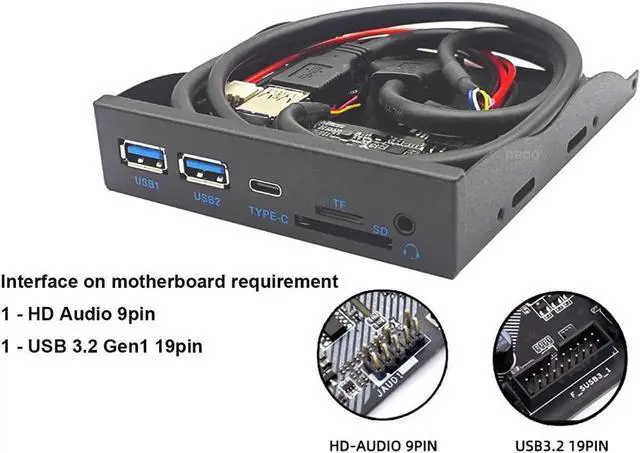

USB 20pin Motherboard Header - 1 x USB motherboard 20pin headers on motherboard is needed for the hub connection

HD Audio Motherboard Header - 1 x HD Audio 9pin headers on motherboard is needed for the hub connection

Easy Installation - Installation is quick and easy, and the unit is plug and play.

Great compatibility and easy to use - Compatible with Windows 10/8/8. 1/7/ Vista/ XP and Mac OS X, Linux and chrome OS.

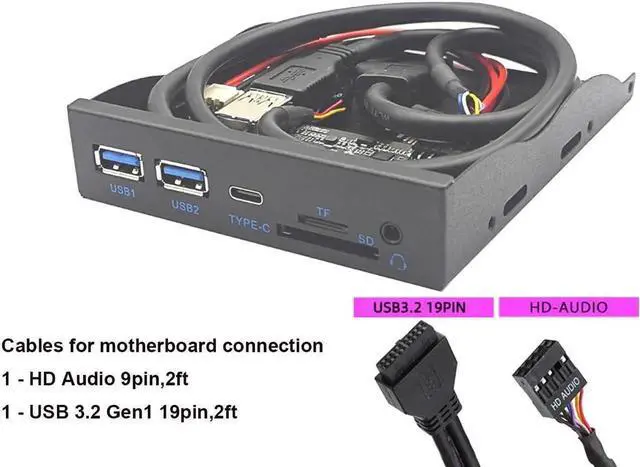

2ft lngth of USB and audio cable, long enough for most all PC case

Metal Case - Stable performance and durable

Note

Not all USB 20pin motherboard header on motherboard is driven as default. If the front panel install, but can not be recognized correct. Please try to drive motherboard USB 20pin header first.

USB 3.0 19Pin Header on Motherboard is Required

AC97 HD Audio 10pin header in motherboard is Required

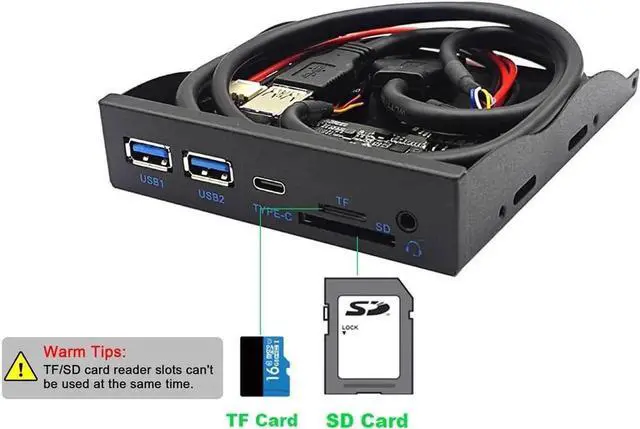

SD/TF Card slot can not be used at the same time
