Waveshare 2-Ch RS485 to RJ45 Ethernet Serial Server, Dual Channels RS485 Independent Operation, Rail-Mount Industrial Isolated Serial Module, Common Network Port
- Common network port. This is a 2-ch RS485 device data acquisitor / IoT gateway designed for the industrial environment.
- Dual RS485 can work simultaneously without interfering with each other.

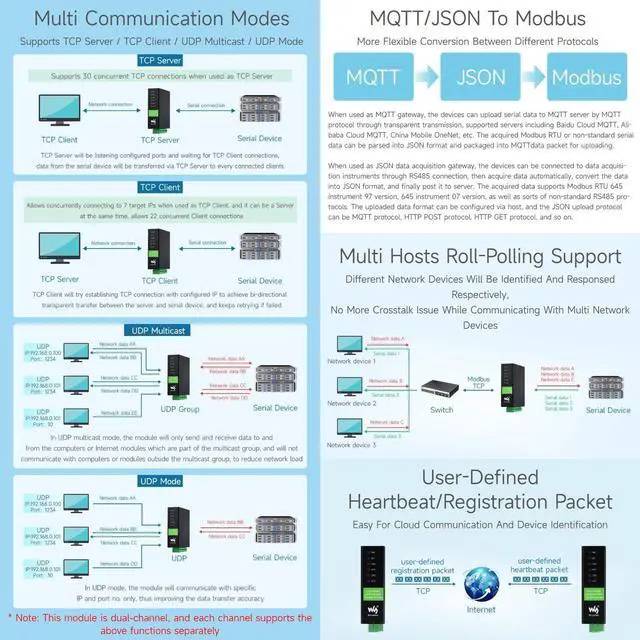

- It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, and network switch.
- The module features dual RS485 and dual Ethernet ports (PoE function optional), uses a DC port (outer diameter: 5.5mm, inner diameter: 2.1mm) and screw terminal for power input.
- The case with rail-mount support, is small in size, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...
+
+
Overview

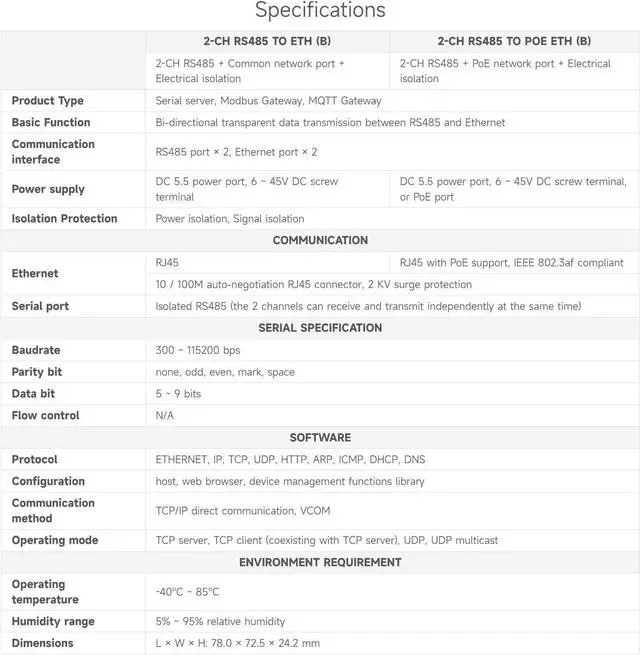

Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

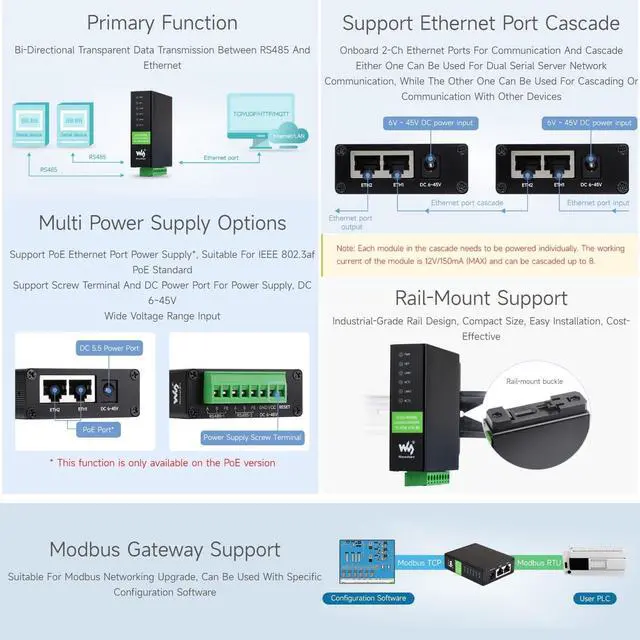

This is a 2-ch RS485 device data acquisitor / IoT gateway designed for the industrial environment. Dual RS485 can work simultaneously without interfering with each other. It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, and network switch. The module features dual RS485 and dual Ethernet ports (PoE function optional), uses a DC port (outer diameter: 5.5mm, inner diameter: 2.1mm) and screw terminal for power input. The case with rail-mount support, is small in size, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring.

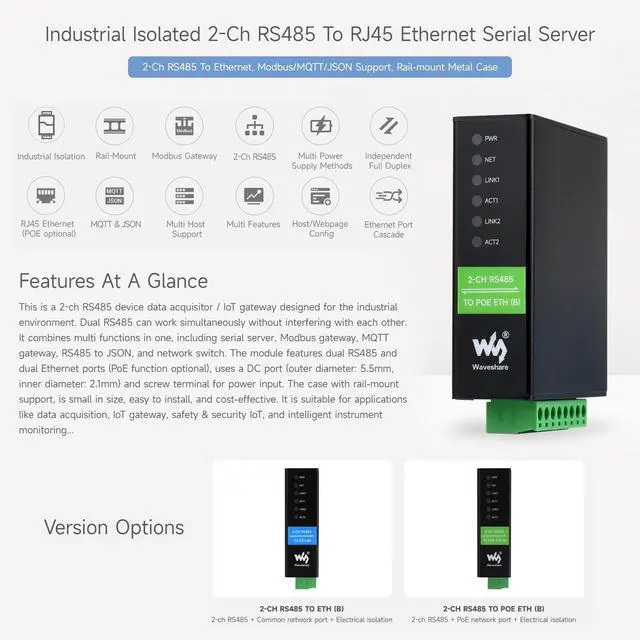

2-Ch RS485 To RJ45 Ethernet Serial Server, Dual Channels RS485 Independent Operation, Dual Ethernet Ports,Rail-Mount Industrial Isolated Serial Module Features At A Glance
2-Ch RS485 To RJ45 Ethernet Serial Server, Dual Channels RS485 Independent Operation, Dual Ethernet Ports,Rail-Mount Industrial Isolated Serial Module Features At A Glance
