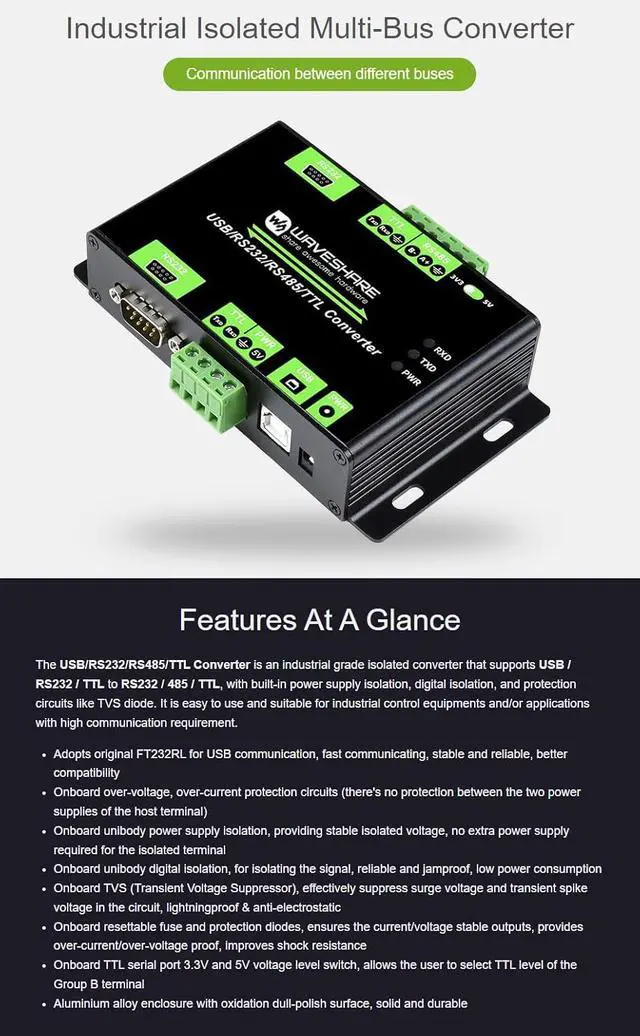

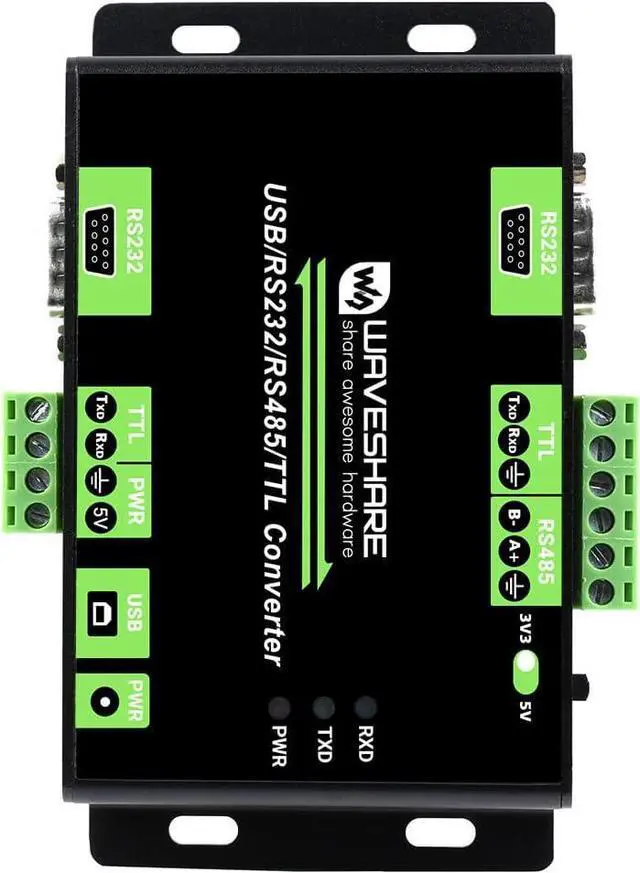

Waveshare Industrial Isolated Multi-Bus Converter USB / RS232 / RS485 / TTL Communication Between Different Buses
- Adopts original FT232RL for USB communication, fast communicating, stable and reliable, better compatibility. Onboard over-voltage, over-current protection circuits (there's no protection between the two power supplies of the host terminal)
- Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal. Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
- Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
- Onboard TTL serial port 3.3V and 5V voltage level switch, allows the user to select TTL level of the Group B terminal. Aluminium alloy enclosure with oxidation dull-polish surface, solid and durabl
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Adopts original FT232RL for USB communication, fast communicating, stable and reliable, better compatibility. Onboard over-voltage, over-current protection circuits (there's no protection between the two power supplies of the host terminal)
Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal. Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
Onboard TTL serial port 3.3V and 5V voltage level switch, allows the user to select TTL level of the Group B terminal. Aluminium alloy enclosure with oxidation dull-polish surface, solid and durable
Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal. Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
Onboard TTL serial port 3.3V and 5V voltage level switch, allows the user to select TTL level of the Group B terminal. Aluminium alloy enclosure with oxidation dull-polish surface, solid and durable
