waveshare Industrial Isolated Multi-Bus Converter, USB / RS232 / TTL to RS232 / 485 / TTL Adapter Converter with FT232RL Chip, Support Win7/8/8.1/10, Linux, Android, Wince, and so on

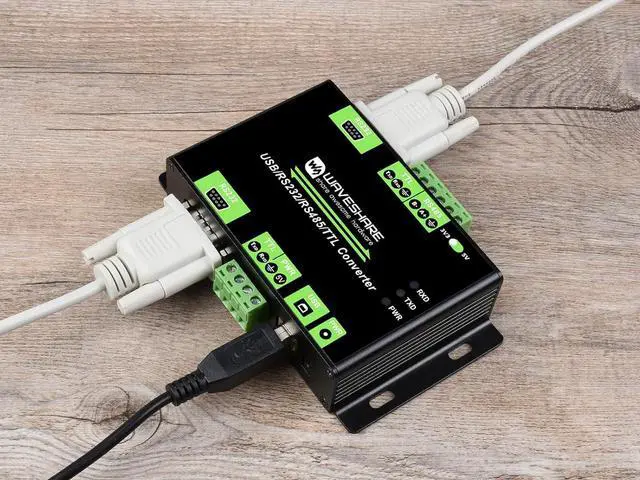

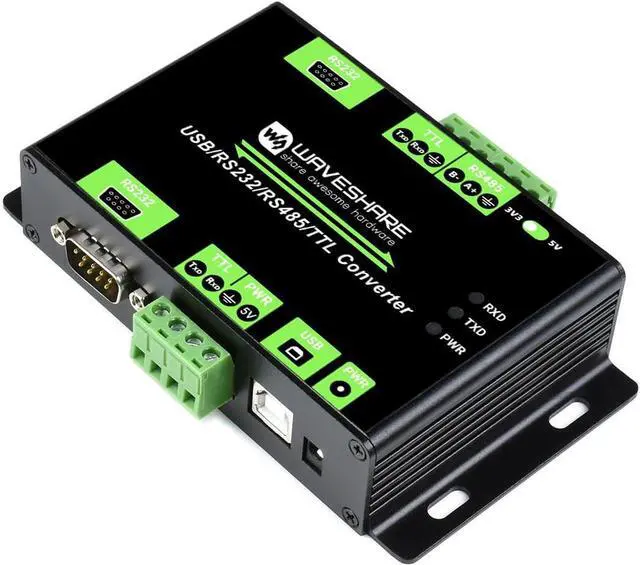

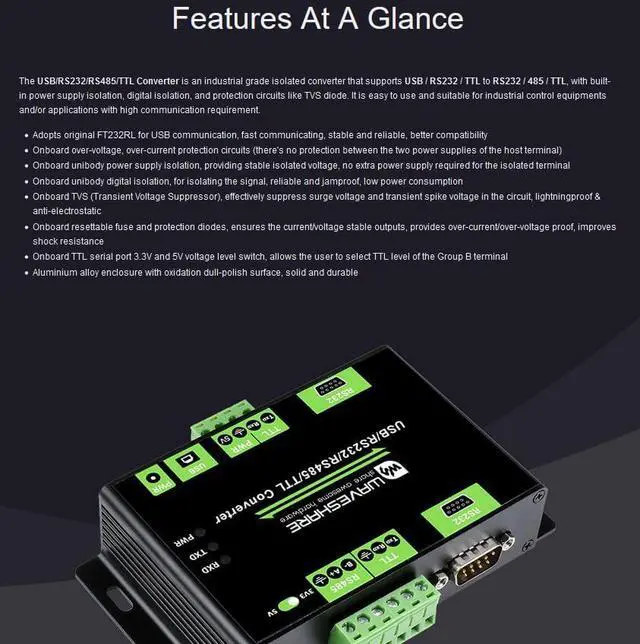

The USB/RS232/RS485/TTL Converter is an industrial grade isolated converter that supports USB / RS232 / TTL to RS232 / 485 / TTL, with built-in power supply isolation, digital isolation, and protection circuits like TVS diode. It is easy to use and suitable for industrial control equipments and/or applications with high communication requirement.
Adopts original FT232RL for USB communication, fast communicating, stable and reliable, better compatibility. Onboard over-voltage, over-current protection circuits (there's no protection between the two power supplies of the host terminal). Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal. Onboard unibody digital isolation, for isolating the signal, reliable and jamproof, low power consumption.
Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic. Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance. Onboard TTL serial port 3.3V and 5V voltage level switch, allows the user to select TTL level of the Group B terminal.
It supports Win7/8/8.1/10, Mac, Linux, Android, WinCE, and so on. Data Rate : 300 ~ 921600bps, 300 ~ 600000bps (RS232 to RS232).

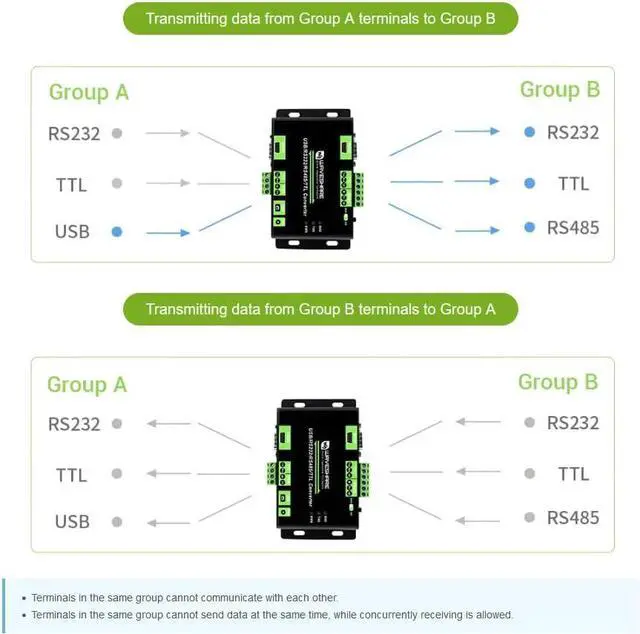

Note: Only one pair of devices will be matched for a complete communication between the Group A and Group B terminals at the same time. Note: Group A can only communicate with Group B, Group B can only communicate with Group A.
