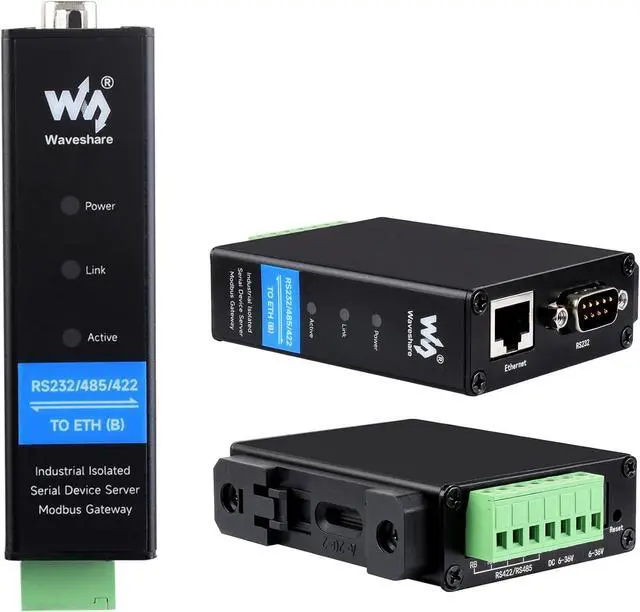

RS232/485/422 to RJ45 Ethernet Converter Industrial Isolated Rail-Mount RS232/485/422 Serial Server TCP/IP to Serial, Modbus Gateway, MQTT Gateway, RS485 to JSON, etc.
- RS232 / 485 / 422 To RJ45 Ethernet Module, Bi-directional transparent data transmission between RS232/485/422 and Ethernet

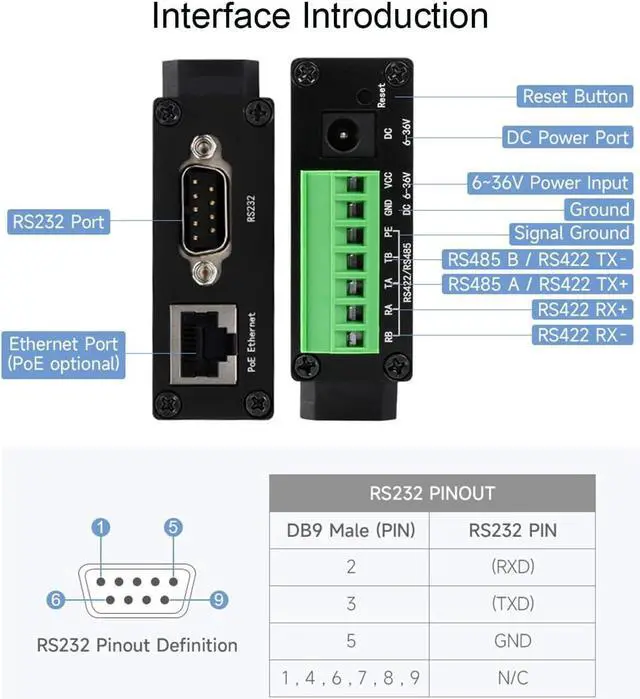

- Three Different Interfaces: Onboard RS232 / 485 / 422 interfaces, suitable for more application scenarios. 1) Ethernet Port To RS232/485/422: the ethernet port can send data to three serial ports at the same time. 2) RS232 / 485 / 422 To Ethernet Port: Only one of the RS232, RS485, and RS422 can send data to the Ethernet port at the same time.

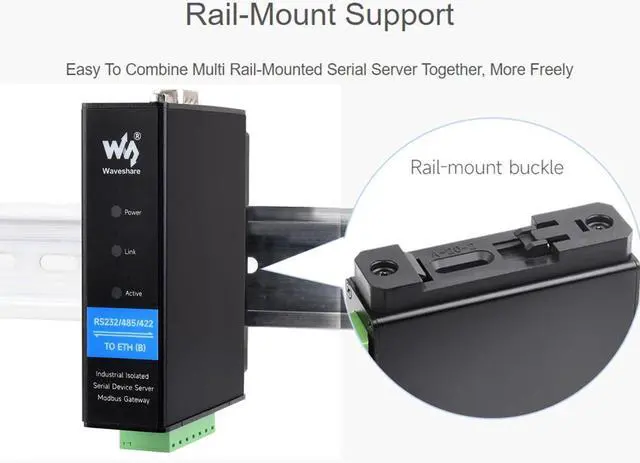

- Rail-mount support, easy to combine multi rail-mounted serial server together, more freely.
- Modbus gateway support, suitable for Modbus networking upgrade, Can Be Used With specific Configuration Software. Multi hosts roll-polling support, different network devices will be identified and responsed respectively,no more crosstalk issue while communicating with multi network devices.
- Multi communication modes, supports TCP server / TCP client / UDP mode / UDP multicast. MQTT/JSON to Modbus, more flexible conversion between
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

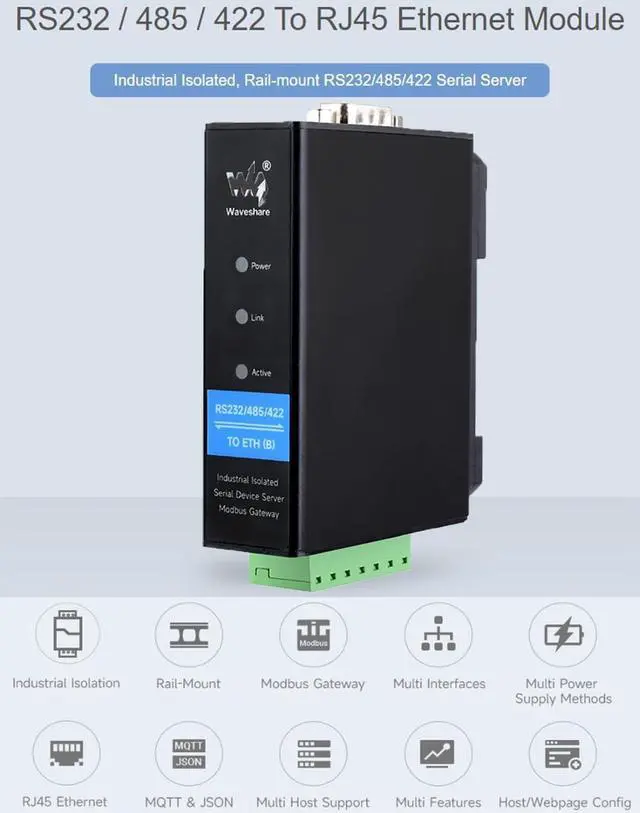

RS232 / 485 / 422 To RJ45 Ethernet Module, Bi-directional transparent data transmission between RS232/485/422 and Ethernet
Three Different Interfaces: Onboard RS232 / 485 / 422 interfaces, suitable for more application scenarios. 1) Ethernet Port To RS232/485/422: the ethernet port can send data to three serial ports at the same time. 2) RS232 / 485 / 422 To Ethernet Port: Only one of the RS232, RS485, and RS422 can send data to the Ethernet port at the same time.
Rail-mount support, easy to combine multi rail-mounted serial server together, more freely.
Modbus gateway support, suitable for Modbus networking upgrade, Can Be Used With specific Configuration Software. Multi hosts roll-polling support, different network devices will be identified and responsed respectively,no more crosstalk issue while communicating with multi network devices.
Multi communication modes, supports TCP server / TCP client / UDP mode / UDP multicast. MQTT/JSON to Modbus, more flexible conversion between different protocols. Multi configuration methods,supports Web browser configuration, obtaining dynamic IP via DHCP,DNS protocol connected domain server address.
Three Different Interfaces: Onboard RS232 / 485 / 422 interfaces, suitable for more application scenarios. 1) Ethernet Port To RS232/485/422: the ethernet port can send data to three serial ports at the same time. 2) RS232 / 485 / 422 To Ethernet Port: Only one of the RS232, RS485, and RS422 can send data to the Ethernet port at the same time.
Rail-mount support, easy to combine multi rail-mounted serial server together, more freely.
Modbus gateway support, suitable for Modbus networking upgrade, Can Be Used With specific Configuration Software. Multi hosts roll-polling support, different network devices will be identified and responsed respectively,no more crosstalk issue while communicating with multi network devices.
Multi communication modes, supports TCP server / TCP client / UDP mode / UDP multicast. MQTT/JSON to Modbus, more flexible conversion between different protocols. Multi configuration methods,supports Web browser configuration, obtaining dynamic IP via DHCP,DNS protocol connected domain server address.
