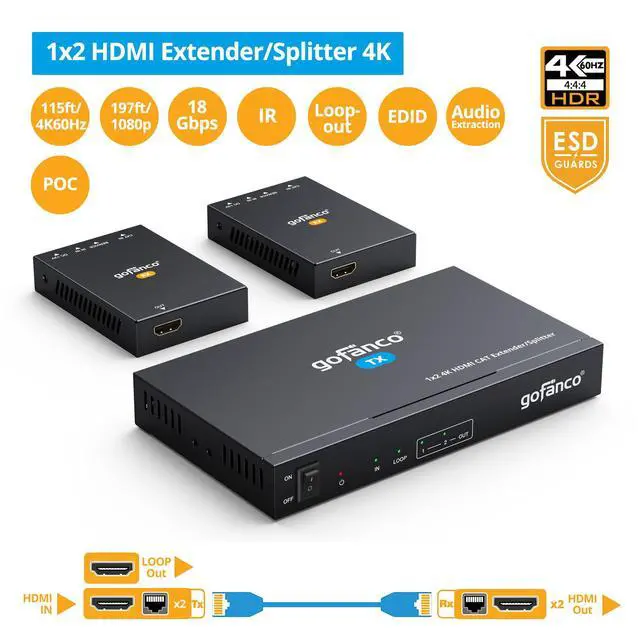

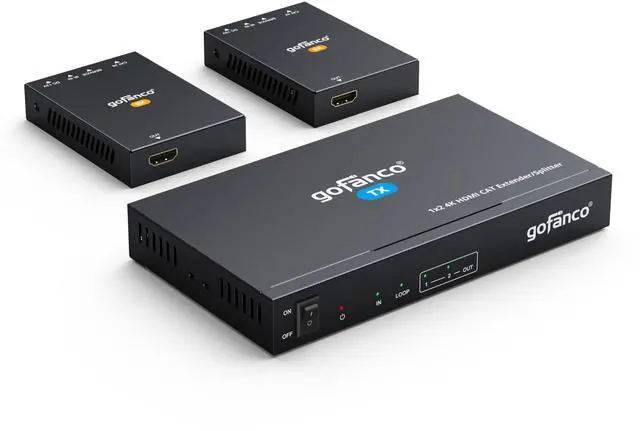

1x2 HDMI Extender/Splitter over CAT6/7 1080p up to 197ft(60m), 4K60Hz up to 115ft(35m), HDR, HDCP 2.2,IR,EDID,PoC,Loopout,5.1-ch Digital Audio, Coaxial/Analog Audio Extraction (HD20Ext-2Pv2)

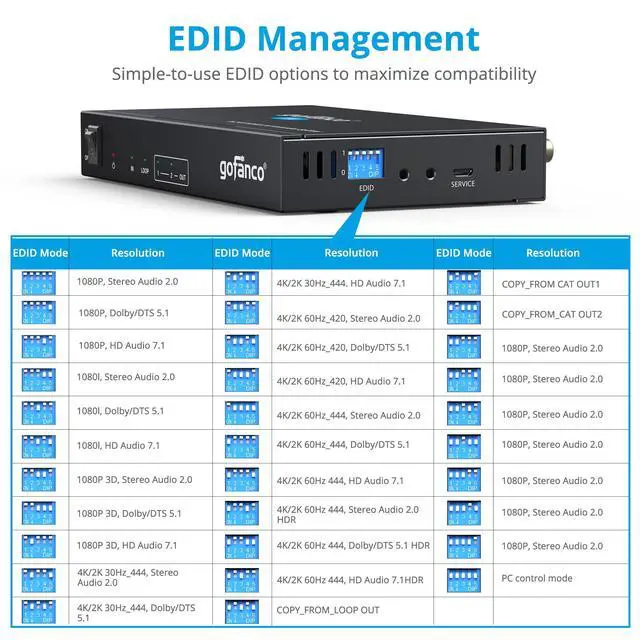

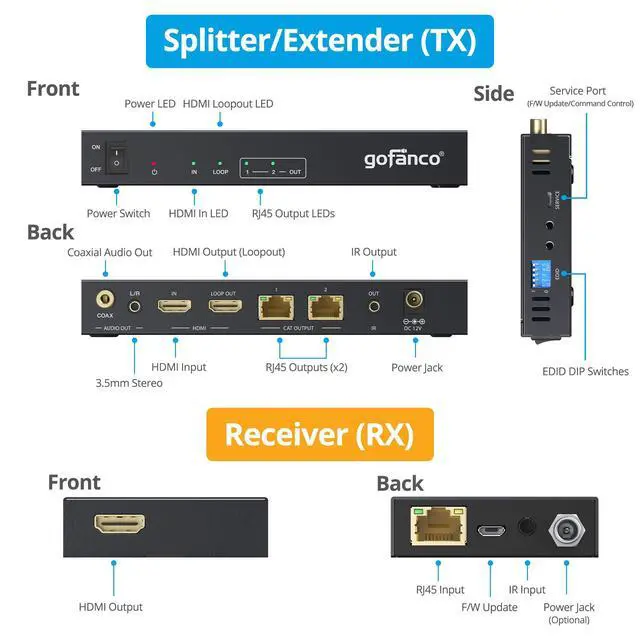

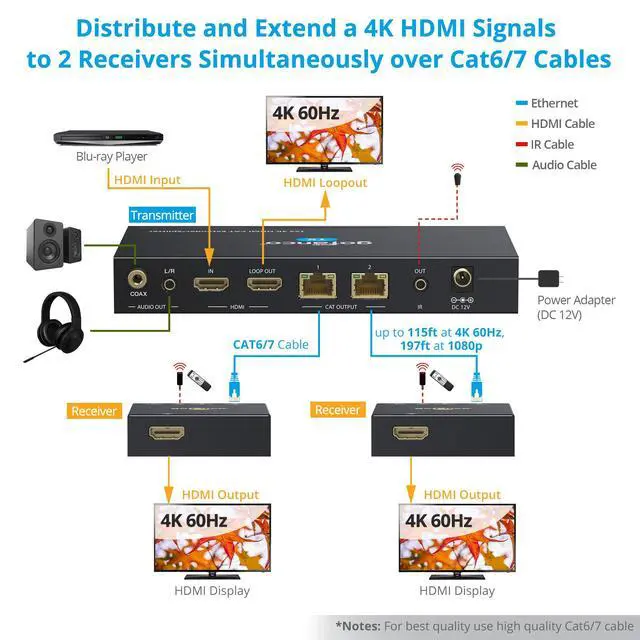

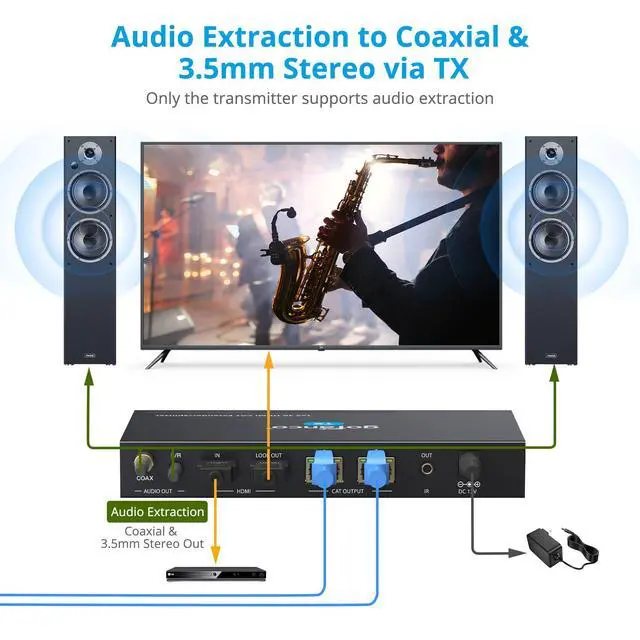

- This 1x2 HDMI extender/splitter allows you to extend and duplicate one HDMI source to two CAT6/7 outputs and one local HDMI output simultaneously with near-zero latency. It supports resolutions up to 4K @60Hz YUV 4:4:4, HDR10, HDCP 2.2, and an 18Gbps bandwidth. Transmission distances are up to 197ft (60m) for 1080p, 164ft (50m) for 4K 30Hz, and 115ft (35m) for 4K 60Hz over CAT6/7 cable. Audio support includes 7.1ch HD audio pass-through for both TX and RX HDMI outputs. It also extracts LPCM 2.0, LPCM 5.1, and Dolby Digital 2/5.1ch audio to the Coaxial output, and PCM 2.0ch audio to the 3.5mm analog audio port from the TX unit. Advanced features comprise an HDMI loopout for a local display, IR control signal pass-through, EDID management, a Micro USB service update port, and PoC function (enabling the TX to power the RX via a CAT cable). Installation is simple with no drivers required. The device features a surface-mountable metal housing and is compliant with FCC, CE, and RoHS standards.
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Detailed Specifications
| First Listed on Newegg | June 10, 2026 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by PurePick Return Policy
