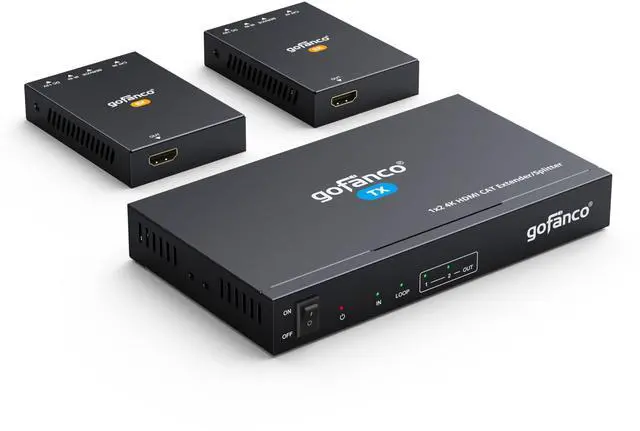

1x2 HDMI Extender/Splitter Over Cat6/7 (HD20Ext-2P) | 1080p up to 197ft/60m, 4K60Hz up to 115ft/35m, HDR, HDCP 2.2, IR, EDID, PoC, Loopout, 5.1-ch Digital Audio
- 1x2 HDMI EXTENDER/SPLITTER Extend and duplicate one HDMI source to two CAT6/7 and one HDMI outputs at the same time with near zero latency. RESOLUTION & TRANSMISSION Supports up to 4K @60Hz YUV 4:4:4, HDR10, HDCP 2.2, 18Gbps. Extends 1080p up to 197ft (60m), 4K 30Hz up to 164ft (50m) and 4K 60Hz up to 115ft (35m) via a CAT6/7 cable. AUDIO FORMATS Supports 7.1ch HD audio pass-through for TX and RX HDMI output. Extracts LPCM 2.0, LPCM 5.1, Dolby Digital 2/5.1ch audio to Coaxial output and PCM 2.0ch audio to 3.5mm analog audio from TX. ADVANCED FEATURES HDMI loopout for a local display, IR control signal pass-through, EDID management, Micro USB service update port and PoC function (TX can power the RX through a CAT cable). SIMPLE INSTALLATION No driver needed; Surface-mountable metal housing. FCC, CE and RoHS compliant
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1x2 HDMI EXTENDER/SPLITTER Extend and duplicate one HDMI source to two CAT6/7 and one HDMI outputs at the same time with near zero latency. RESOLUTION & TRANSMISSION Supports up to 4K @60Hz YUV 4:4:4, HDR10, HDCP 2.2, 18Gbps. Extends 1080p up to 197ft (60m), 4K 30Hz up to 164ft (50m) and 4K 60Hz up to 115ft (35m) via a CAT6/7 cable. AUDIO FORMATS Supports 7.1ch HD audio pass-through for TX and RX HDMI output. Extracts LPCM 2.0, LPCM 5.1, Dolby Digital 2/5.1ch audio to Coaxial output and PCM 2.0ch audio to 3.5mm analog audio from TX. ADVANCED FEATURES HDMI loopout for a local display, IR control signal pass-through, EDID management, Micro USB service update port and PoC function (TX can power the RX through a CAT cable). SIMPLE INSTALLATION No driver needed; Surface-mountable metal housing. FCC, CE and RoHS compliant
