4 in 1 Hot Air Rework Soldering Iron and Desoldering Suction Tin Gun Station with Suction Pick Up Pen °F /°C

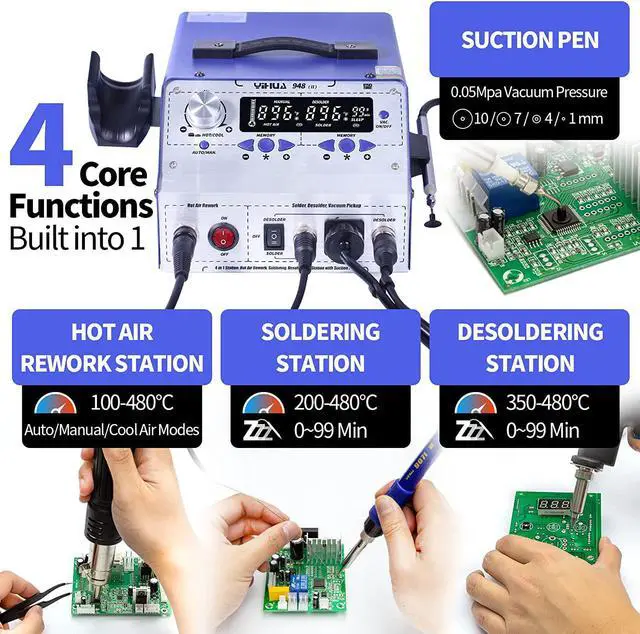

- One Unit, Four Tools - This unit integrates a 75-Watt De-soldering Station, a powerful 650-Watt Hot Air Rework Station, a 60-Watt Soldering Station and a Suction Pen into one unit for more choices.
- Intelligent Heat Control - PID program implanted to give temperature control at super high speed to deliver accuracy.
- Customizable Functions & Many Extra Accessories - °C / °F Display, Sleep Function, Hot Air Gun Auto / Manual Mode, Cool / Hot Air Switchable, Digital Temperature Calibration.
- Supreme Guide to its Detection Mechanism - With CPU within, it can detect changes of the parts and send the information to you. Besides the safety assurance, error message like S-E or F-1/F-2 and available replacement parts allow for timely resolution.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Desoldering Station Tem.
Range: 662-896°F Temp.
Stabilization: PID
Program Solder Extraction: Vacuum

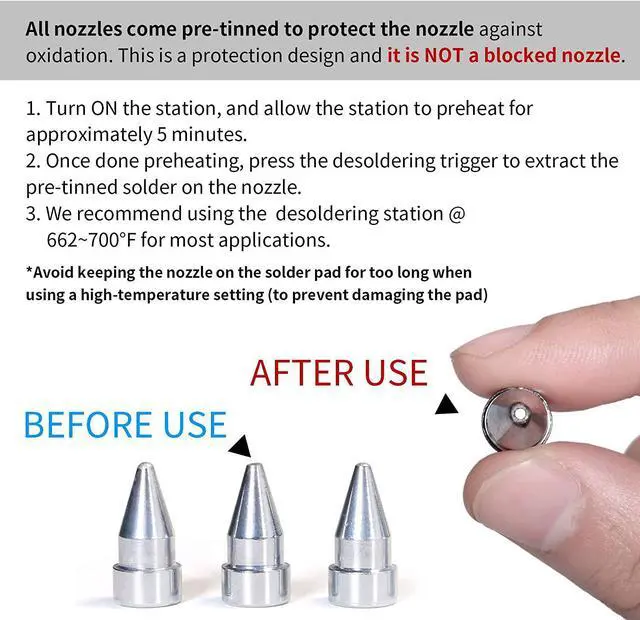

Pump Nozzle Sizes: Ø 0.8 / 1.0 / 1.2 / 2.0 mm
Suction Pressure: 0.05M pa

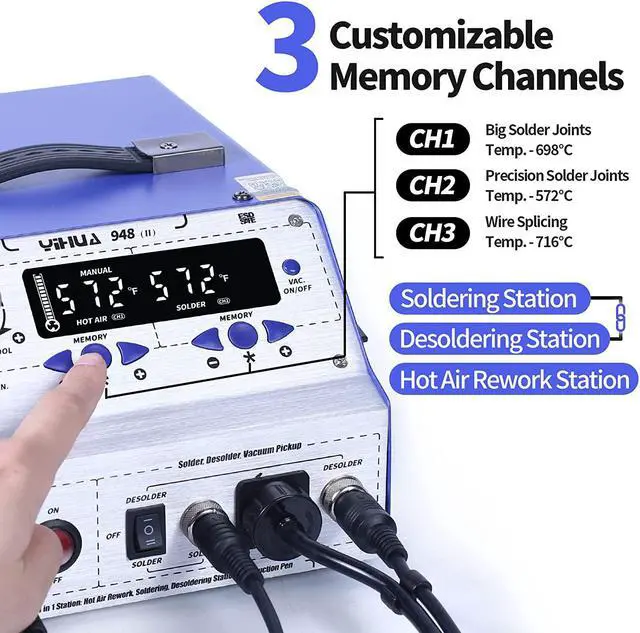

Preset Channel: 3 Available Channels Soldering Station Temp.
Range: 392-896°F Temp.
Stabilization: PID
Program In-Holder Sleep Mode: Yes
Adjustable Sleep Mode Timer: Yes
Preset Channel: 3 Available Channels Hot Air Rework Station Temp.
Range: 212-896°F Temp.
Stabilization: PID Program Temp.
Stability: ± 1.8 °F
Air Volume: 120L Max.
Automatic/Manual Hot Air Modes: Yes
Preset Channel: 3 Available Channels Suction Pen (Extraction)
Suction Pressure: 0.05M pa
Independent ON/OFF: Yes Suction
Pad Size: Ø 3.0 / 6.5 /10mm
Compatible IC Types: BGA, PLCC, SOIC, QFP, and more
Range: 662-896°F Temp.
Stabilization: PID
Program Solder Extraction: Vacuum
Pump Nozzle Sizes: Ø 0.8 / 1.0 / 1.2 / 2.0 mm
Suction Pressure: 0.05M pa
Preset Channel: 3 Available Channels Soldering Station Temp.
Range: 392-896°F Temp.
Stabilization: PID
Program In-Holder Sleep Mode: Yes
Adjustable Sleep Mode Timer: Yes
Preset Channel: 3 Available Channels Hot Air Rework Station Temp.
Range: 212-896°F Temp.
Stabilization: PID Program Temp.
Stability: ± 1.8 °F
Air Volume: 120L Max.
Automatic/Manual Hot Air Modes: Yes
Preset Channel: 3 Available Channels Suction Pen (Extraction)
Suction Pressure: 0.05M pa
Independent ON/OFF: Yes Suction
Pad Size: Ø 3.0 / 6.5 /10mm
Compatible IC Types: BGA, PLCC, SOIC, QFP, and more
