$199.95
Meet Your Seller
Large 48x24 Inch Anti Static Mat, Soldering Rubber Mat for PC Building, ESD Sensitive Device Repair, Assembly Work, with ESD Grounding Plug,Cord,Wrist Strap Bracelets Wristband,Heat Resistant

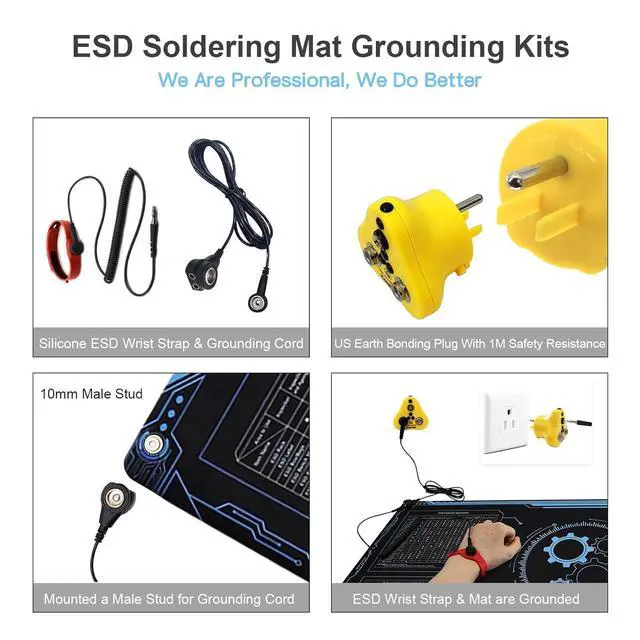

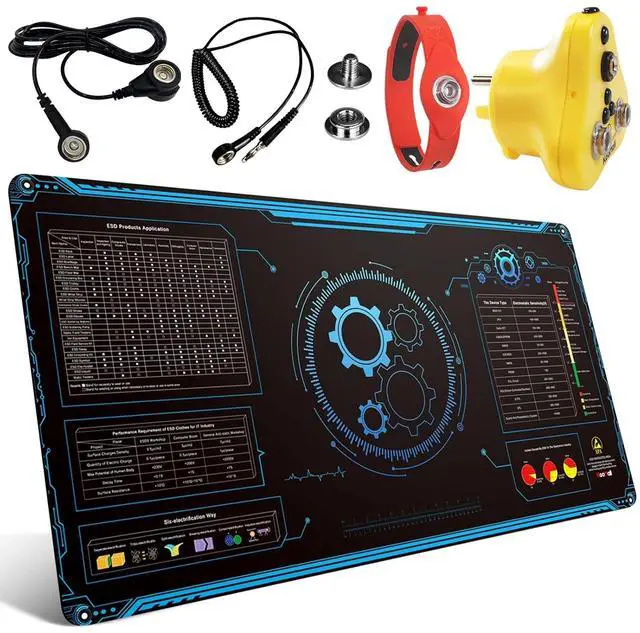

- WHY CHOOSE US- Comes with a US Grounding Plug, a ESD Wrist Strap and Grounding Cord with 2 Holes. The anti static Mat is mounted 2pcs 10mm Male Studs as the Grounding Point which is easy for Grounding Cord to connect the mat stably.

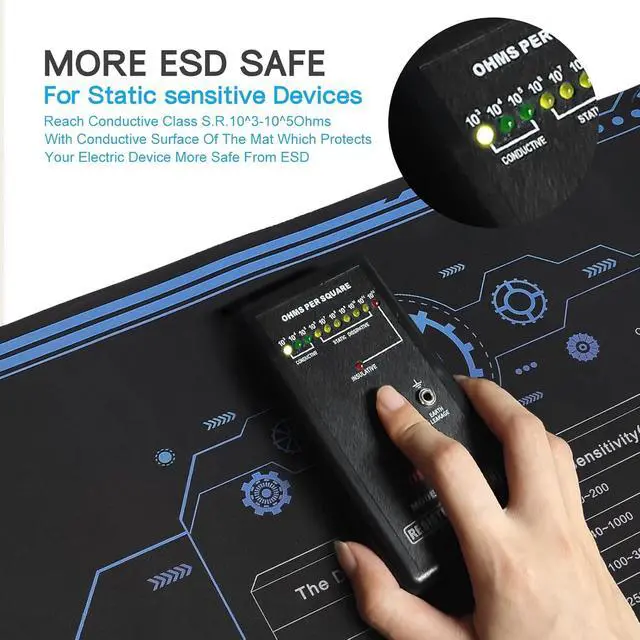

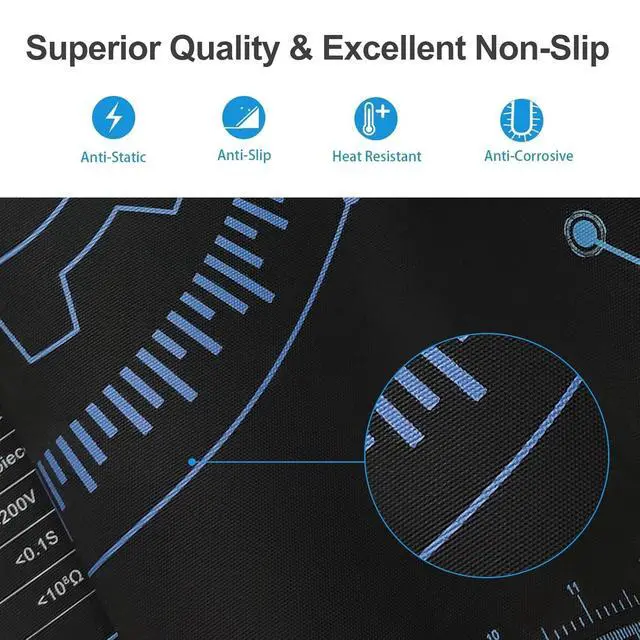

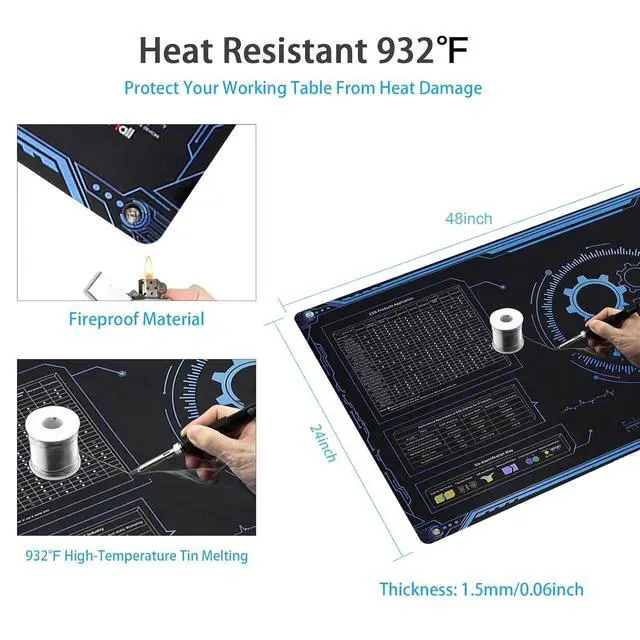

- Conductive and LargeOur ESD Bench Mat Size is Large 48 x 24 Inch, Which keeps your bench more tidy and help you working more efficient. Both side are conductive with Surface Resistance of 10^3 - 10^5 ohms. The front side is with anti-slip dotted texture.

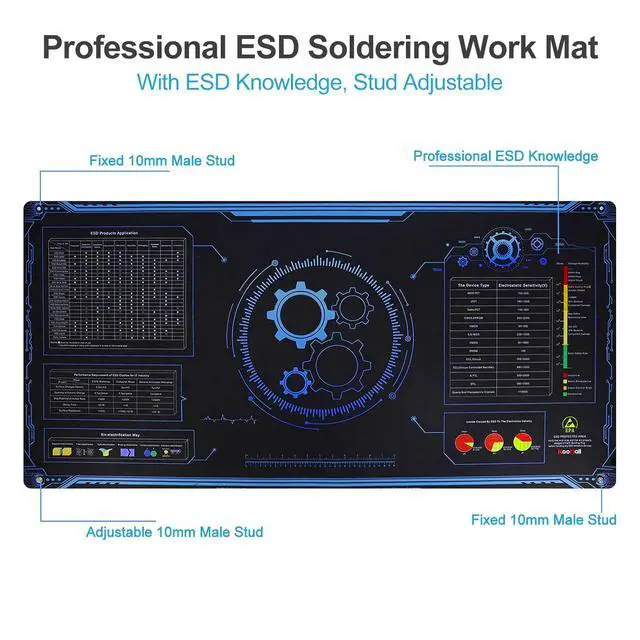

- WITH ESD KNOWLEDGEThe Professional ESD Knowledge Printing on the surface makes people Feel High-tech and Pleasant. It can let us know more about ESD.Clearly Printed ESD Knowledge of resistance range,Max Bear Resistance for different Static Sensitive Devices and others ESD Knowledge. It helps you to know more about ESD and more safety protect your Products.
- NON-TOXIC AND EASY TO CLEANOur ESD Bench mat is made of high quality brand new rubber.non-toxic, no harmful to human body. And the mat is very flexible and durable and easy to clean with water.
- WIDELY USEDIt is an ideal repair tools for soldering electronics assembly or circuit board and electronics repair, specially suitable for smart phone, computer, tablet, sport watches, smart toy, IC circuit boards and other electronic devices repair.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
INSTRUCTION
The plug fits directly in to the mains supply socket, connecting with only the earth conductor. Live and Neutral pins have been molded in insulating plastic, fitting into the supply socket but completely dormant.
The 1M Ohm resistor to each connector offer protection in the event the workstation becomes live. That protection would limit the current to less than 0.3mA at 240 volts. Should the fault current continue the resistor will open circuit.
IInsert the plug into the supply socket making sure it is fully home, then connect the various elements of the EPA...such as ESD wrist strap,ESD Mat, Grounding Cord,Equipment and so on. This ensures that the EPA is at the same earth potential. As generally the workstation has more than one plug socket it is possible to use more than one EBP if more connections are required
The EBP is sealed and cannot be opened for repair. To test each connection use a multi-meter from the connector to the earth pin. The reading should be between 0.9 and 1.1M Ohms. As each connection point has its own 1M Ohm resistor, the resistance between two connectors should be approximately 2M Ohms. All EBP's are tested and then packed.
ESD kit system resistant is 1-3M Ohms. There is 1M Ohms Safety Resistor in each grounding part. That is, there is 1M ohms in ESD Plug, ESD Wrist Strap Coiled Cord and Grounding Cord. So, when you test any part of conductivity by multimeter. You need to choose the right channel which resistance is more than 2M Ohms. Otherwise, there is not any value in multimeter.
