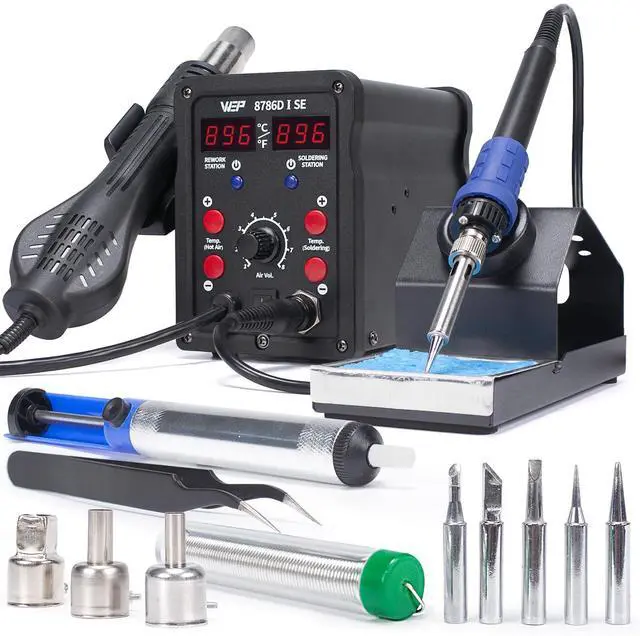

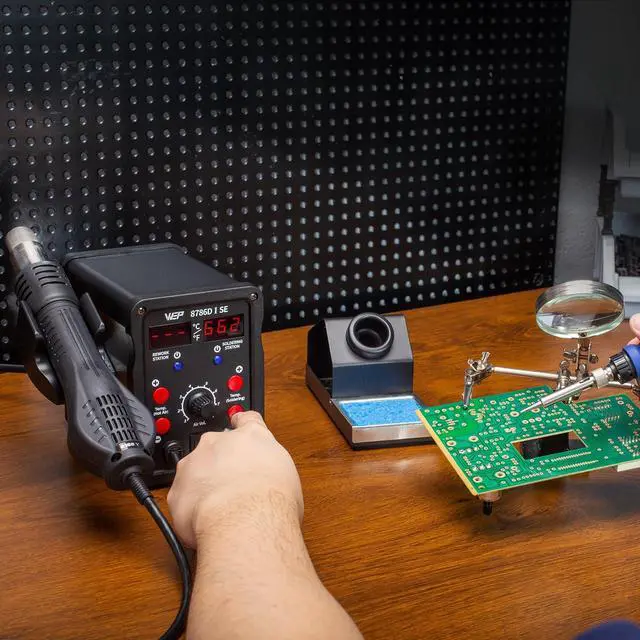

You can enjoy the functionalities of both a soldering station, and a hot air station, at the size of one. Both stations come with individual temperature controls, digital temperature read-outs, and other functions.
Soldering station
392-896°F Adjustable with PID stabilized temperature output, you can solder a variety kinds of through-hole components smoothly.
Hot Air Station
212-896°F Adjustable with variable air volume, you can cover SMD component rework to your soldering job scopes.
Specifications
 WEP #1200 |  WEP 917GD |  WEP #2300 |  WEP S200 Red |  WEP 948D III |  WEP 982-V (C245) | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Category | Soldering Iron Tips Set | Soldering Iron Handpiece | Hot Air Gun Nozzles set | Silicone Soldering Wire Holder | 2-IN-1 Multi Station | Soldering Station |
| Functions | ONLY compatible with WEP 926LED V3, WEP 8786D-I SE, WEP 882D, WEP 948DQ-II | Compatible with WEP 948DQ-II, WEP 882D, WEP 8786D-I SE | Compatible with all WEP hot air rework stations EXCEPT WEP 959D | Compatible Diameter: 32AWG - 7AWG | Soldering & Desoldering | Soldering |
| Temp.Range | no data | no data | no data | no data | 392~896? | 194?~842? |
| Other Parameters | no data | no data | no data | no data | Desoldering Temp.Range: 716~896? | no data |
| PID Temperature Stabilization | no data | no data | no data | no data | ? | ? |
| Temperature Calibration | no data | no data | no data | no data | ? | ? |
| Standby/Sleep Mode | no data | no data | no data | no data | ? | ? |
You can enjoy the functionalities of both a soldering station, and a hot air station, at the size of one. Both stations come with individual temperature controls, digital temperature read-outs, and other functions.
Soldering station
392-896°F Adjustable with PID stabilized temperature output, you can solder a variety kinds of through-hole components smoothly.
Hot Air Station
212-896°F Adjustable with variable air volume, you can cover SMD component rework to your soldering job scopes.

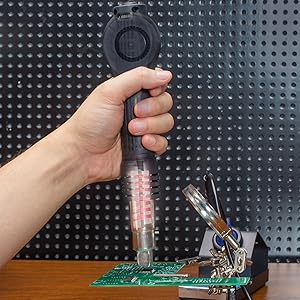

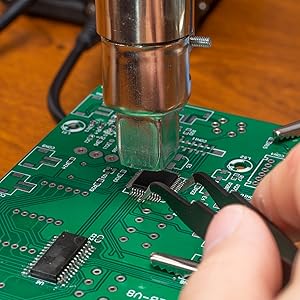

Hot Air Gun
Built with patented cylindrical ceramic heating element design, providing superior temperature control and safety as compared to traditional coiled heating element. Built with spiraling outlet design to provide concentrated air flow during SMD rework.

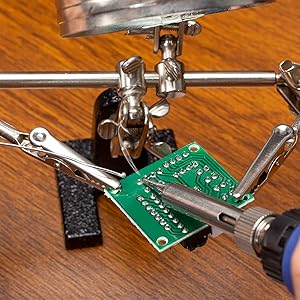

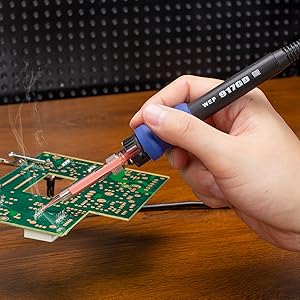

Soldering Iron
Powered by 60W ceramic heating element with temperature measurement function. The station measures the actual temperature in milliseconds, and sends temperature compensation commands to the heating element to ensure stable temperature. So you don’t have to wait for heating between soldering joints.

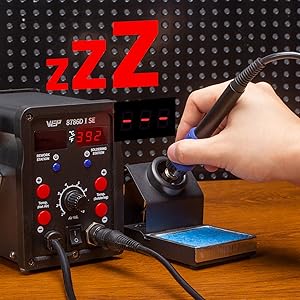

Sleep Mode
Activates when non-use for longer than 10 minutes is detected, cooling the soldering iron’s temperature to 392°F. This mode protects the soldering tip’s plating from oxidizing when left unused for 10 minutes, and extends the ceramic heating element’s lifespan.

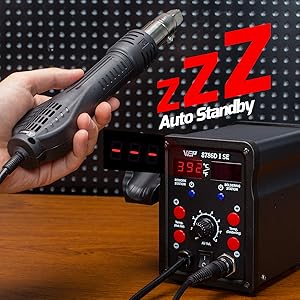

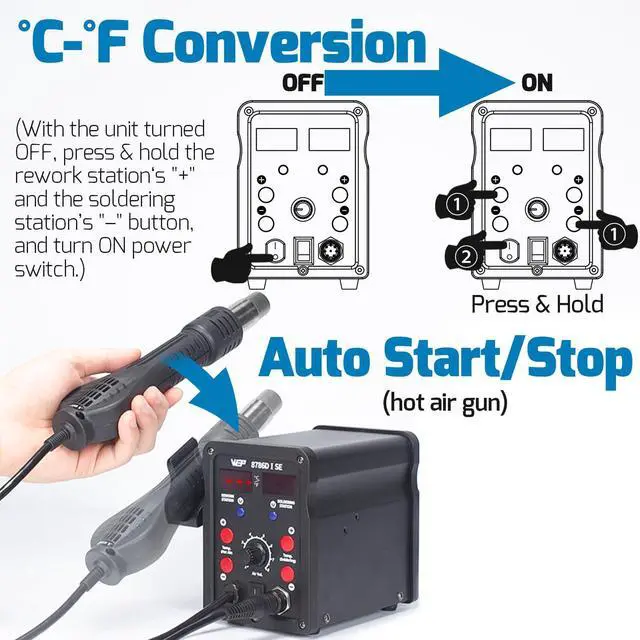

Standby Mode
When the hot air gun is placed into the holder, regardless the temperature setting, the hot air gun will automatically stop heating, and cool to 212°F. Once the hot air gun is cooled, the blower will also stop operating to enter the standby mode. This function extends the hot air gun’s heating element lifespan.
Specifications
| Model number | WEP 8786D-I SE |
| Rated voltage range | 110V-127V/AC, 60Hz |
| Rated power | 750W |

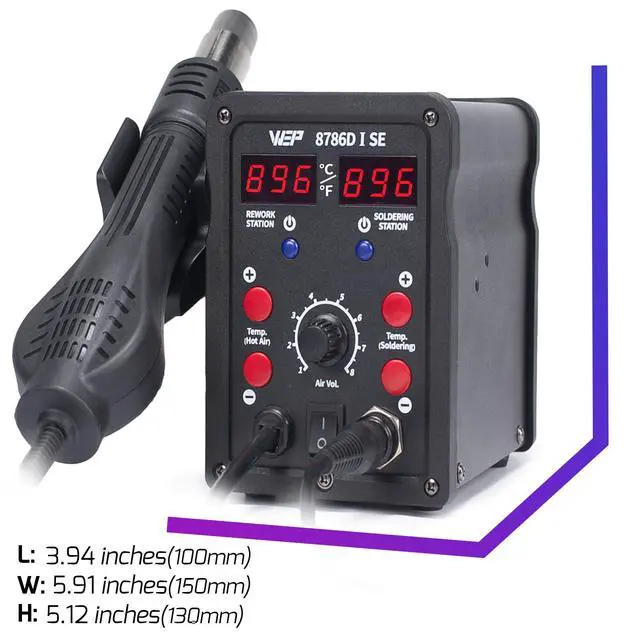

| Main unit dimensions | L5.91*W3.94*H5.12in ±0.2in |
| Operating ambient temperature | 0~40°C/32°F~104°F |
| Air delivery | Brushless blower with smooth air delivery |
| Temp. range(Rework station) | 100°C~480°C/212°F~896°F |
| Air volume | =120L/min |
| Temp. range(Soldering station) | 200°C~480°C/392°F~896°F |
| Tip to ground resistance | <2ohms |
| Display | LED Nixie Tube |
