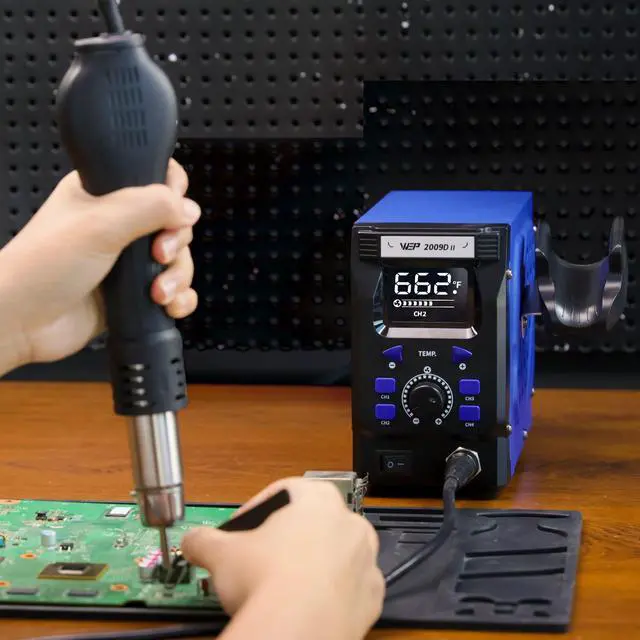

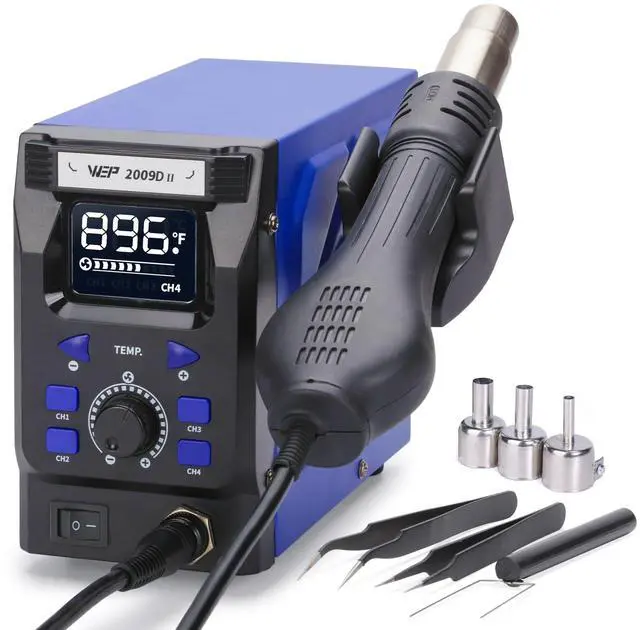

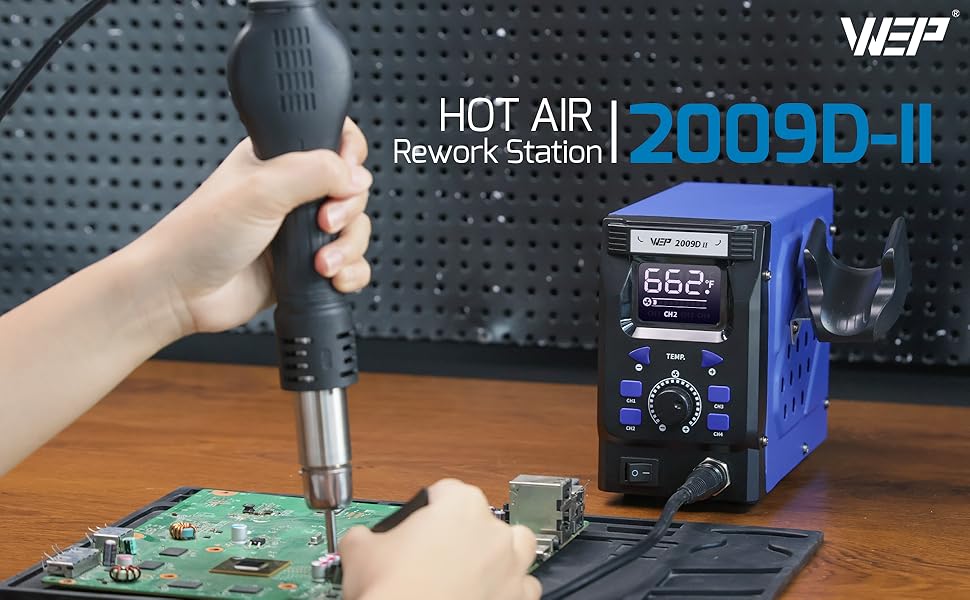

WEP 2009D-II hot air rework station is a versatile hot air rework station with a detachable hot air gun, adjustable temperature and air volume, and user-friendly features for efficient SMD soldering and desoldering tasks.

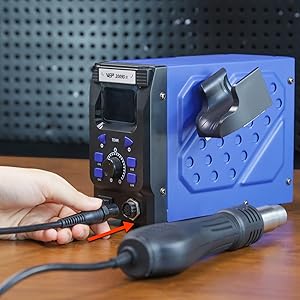

Detachable Hot Air Gun Handpiece
- Detachable design for easy replacement
- No need to replace the whole station
- Saves on replacement costs

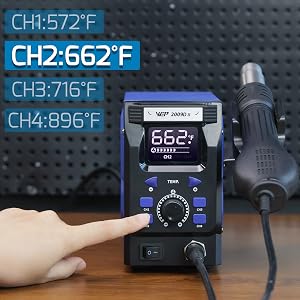

4 Pre-set Channels
The 4 preset channels on this hot air soldering station allow users to quickly switch between different temperature settings without manually adjusting each time.

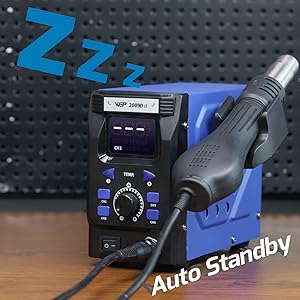

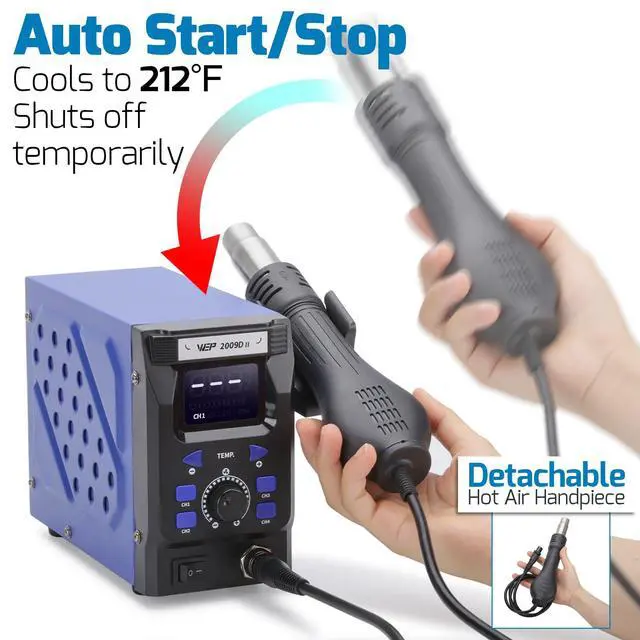

Auto Standby
Significantly reduce unnecessary wear when the hot air gun is unused, and improve user safety for the hot air gun. When you put the hot air gun in the holder, the hot air gun automatically cools to 212°F and turns OFF temporarily until it is picked up again.

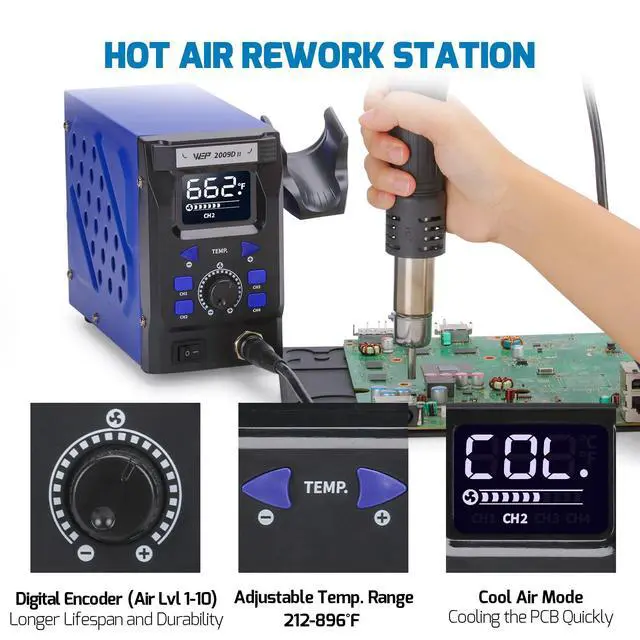

Adjustable Temperature Setting
You can adjust the temperature setting from 212 to 896°F. The button-style temperature adjustment allows you to adjust value precisely, each press provides an increase/decrease of 1 unit.
Adjustable Air Volume
You can adjust the air volume based on your component’s size, use lower settings for small and light components, or use higher settings when you need to deliver heat to an area quickly.

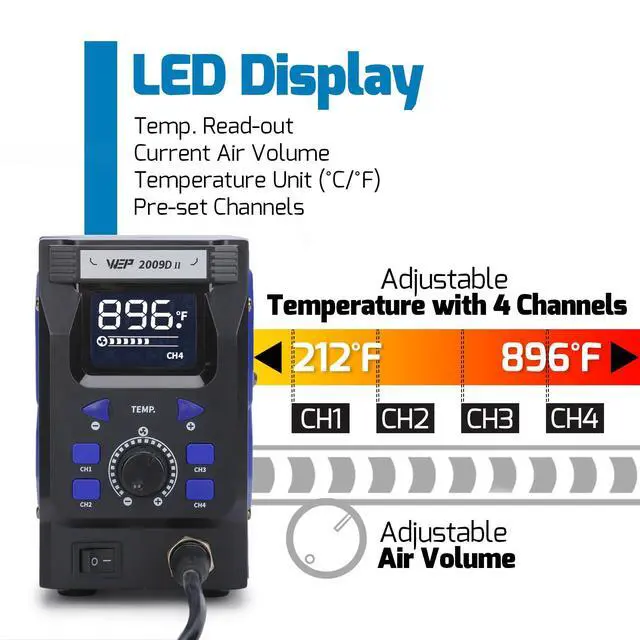

Digital LED Display
- Shows temp, air volume, pre-set channels in real time
- Heating and temp. stabilization indicator for better monitoring
- Clear display for quick adjustments
3 Hot Air Nozzles
The hot air nozzles are made in 0.4in /0.32in / 0.2in diameters, and you can use these nozzles on a broad range of rework applications.
Specifications
 WEP #2300 |  WEP R118B |  WEP S200 Red |  WEP 858D |  WEP 959D |  WEP 8786D-I SE | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — no data | — | — | — | — |
| Category | Hot Air Gun Nozzles | Hot Air Handpiece | Silicone Soldering Wire Holder | Hot Air Rework Station | Hot Air Rework Station | 2-IN-1 Multi Station |
| Functions | Compatible with all WEP hot air rework stations EXCEPT WEP 959D | ONLY Compatible with WEP 938BD-I, WEP 2009D-II Soldering Hot Air Rework Station | Compatible Diameter: 32AWG - 7AWG | Hot Air Rework | Hot Air Rework | Hot Air Rework & Soldering |
| Temp.Range | no data | no data | no data | 212?~896? | 212?~896? | 392~896? |
| Temperature Calibration | no data | no data | no data | ? | ? | ? |
| Standby/Sleep Mode | no data | no data | no data | ? | ? | ? |
WEP 2009D-II hot air rework station is a versatile hot air rework station with a detachable hot air gun, adjustable temperature and air volume, and user-friendly features for efficient SMD soldering and desoldering tasks.
Detachable Hot Air Gun Handpiece
- Detachable design for easy replacement
- No need to replace the whole station
- Saves on replacement costs
4 Pre-set Channels
The 4 preset channels on this hot air soldering station allow users to quickly switch between different temperature settings without manually adjusting each time.
Auto Standby
Significantly reduce unnecessary wear when the hot air gun is unused, and improve user safety for the hot air gun. When you put the hot air gun in the holder, the hot air gun automatically cools to 212°F and turns OFF temporarily until it is picked up again.
Adjustable Temperature Setting
You can adjust the temperature setting from 212 to 896°F. The button-style temperature adjustment allows you to adjust value precisely, each press provides an increase/decrease of 1 unit.
Adjustable Air Volume
You can adjust the air volume based on your component’s size, use lower settings for small and light components, or use higher settings when you need to deliver heat to an area quickly.
Digital LED Display
- Shows temp, air volume, pre-set channels in real time
- Heating and temp. stabilization indicator for better monitoring
- Clear display for quick adjustments
3 Hot Air Nozzles
The hot air nozzles are made in 0.4in /0.32in / 0.2in diameters, and you can use these nozzles on a broad range of rework applications.
Specifications
| Model number | WEP 2009D-II |
| Rated voltage range | 110V-127V/AC, 60Hz |
| Rated power | 700W |

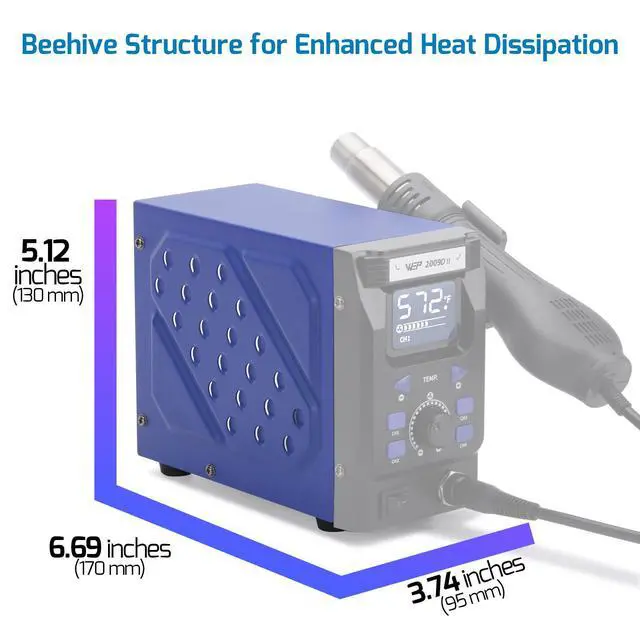

| Main unit dimensions | L6.69*W3.74*H5.12in ±0.2in |
| Operating ambient temperature | 0?-40?(32?-104?) |
| Temperature range | 100?-480?(212?-896?) |
| Display | LED Nixie Tube |
| Airflow type | Brushless fan with smooth air delivery |
| Air volume | =30L/min |
