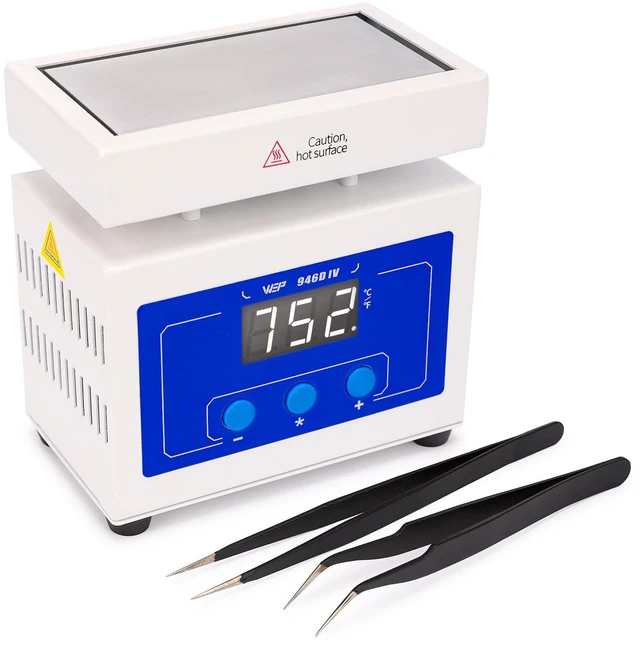

WEP 946D IV 100x50mm Small LED Soldering Hot Plate for SMD BGA Smartphone Microcomputer Rework Reflow, 210W Preheater Station with / Digital Temperature Control

This compact soldering hot plate comes with built-in temperature control (PID Program/Cycles in milliseconds), with adjustable temperature range from 122°F~752°F; Supports soldering or rework applications on SMD components such as LED diodes, BGA chips, and more without concern on overheating
The reflow hotplate is made from quality aluminum with 3.94x1.97inches (100x50mm) effective heating area, the heating plate is protected with metallic guards
Can be used in conjunction with hot air rework station or soldering station to remove BGA chips by applying heat from the top and bottom
Features °C - °F conversion function, and a digital read-out for easy real-time temperature reference
Commonly used for SMD components soldering, phone screen preheat, glue removal, and other heating applications
Exclusive Technical Support: This soldering hot plate is covered by our exclusive 1-year USA technical support, with 24-hour assistance from our dedicated team; WEP offers affordable range of compatible replacements; Note: This product is rated for 110-127V USA specifications; Do not connect this iron to a 220V power socket

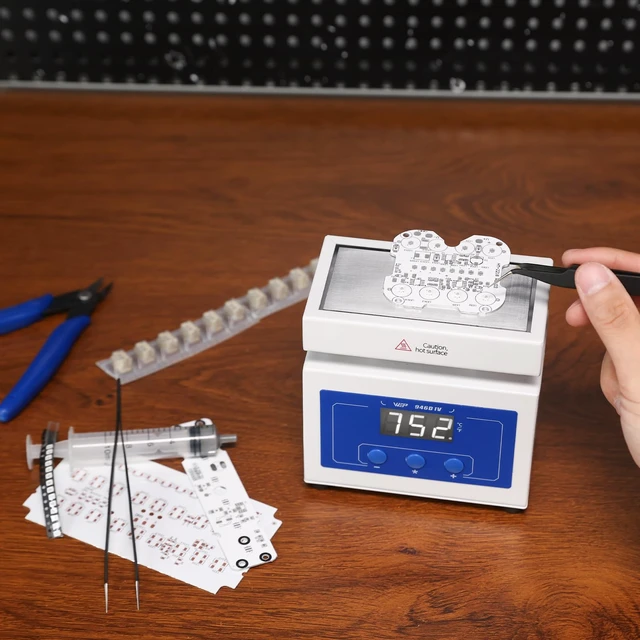

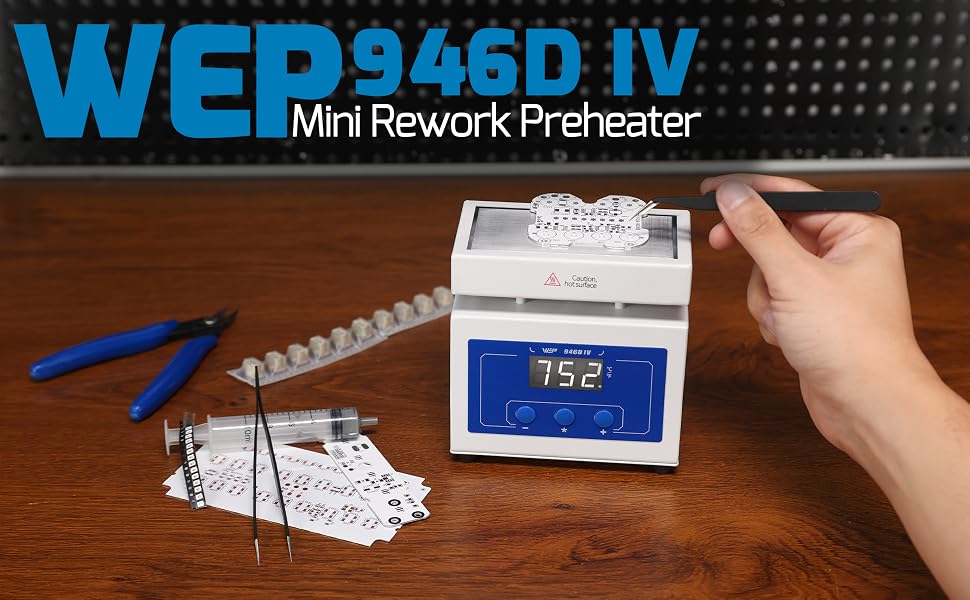

A man is using the WEP 946D-IV rework preheater to rework electronic components.

The WEP 946D IV brings you the capability to solder or rework SMD components (including BGA chips, resistors, diodes and more) without taking significant desk space.

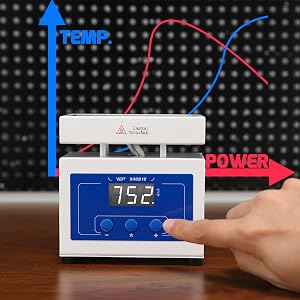

A man is adjusting the temperature of the WEP 946D-IV mini rework preheater.

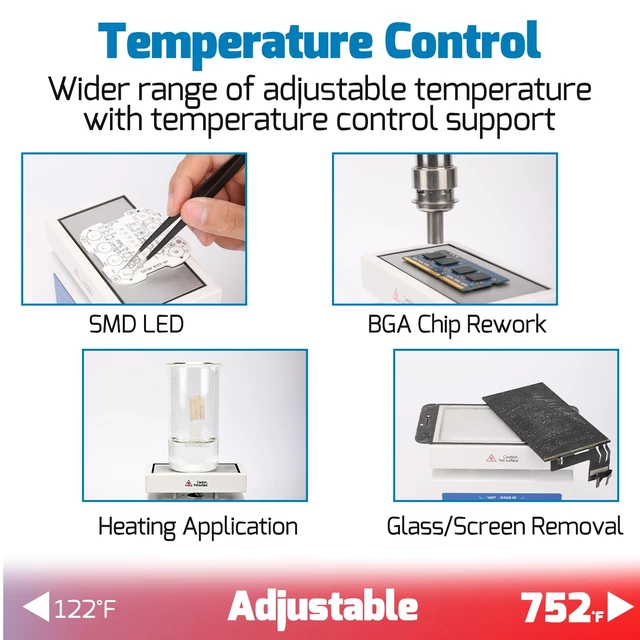

Temperature Control

122?~752°F Adjustable Temperature
PID Temperature-Controlled
3.94x1.97inches(100x50mm)Heating Area

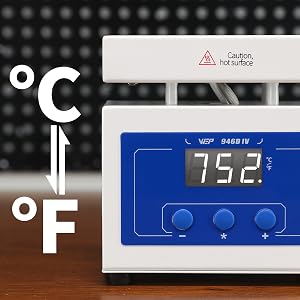

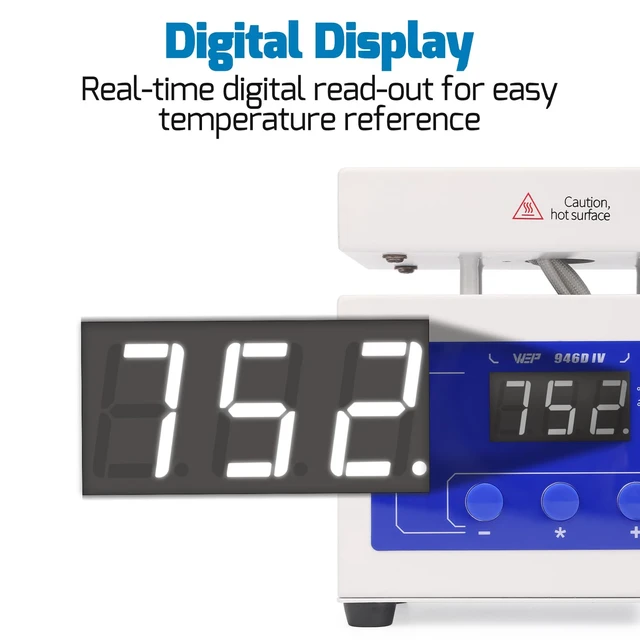

The WEP 946D-IV’s screen shows the real-time temperature and supports °C/°F conversion.

Digital Read-Out

Accurate Temp. Adjustment
Real-time Temperature Reference
Supports °C / °F Conversion

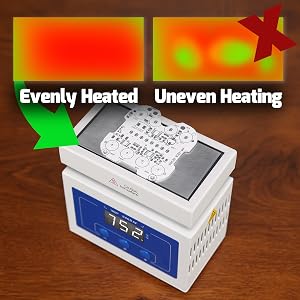

The preheating station’s heating plate shows even heating in the thermal image.

No Overshoot

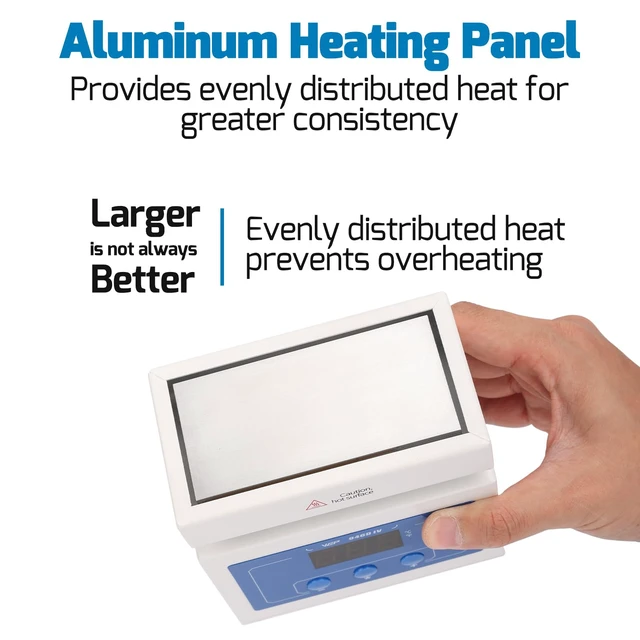

Full Aluminum Heating Panel
Evenly Distributed Heat
Prevents overshoot

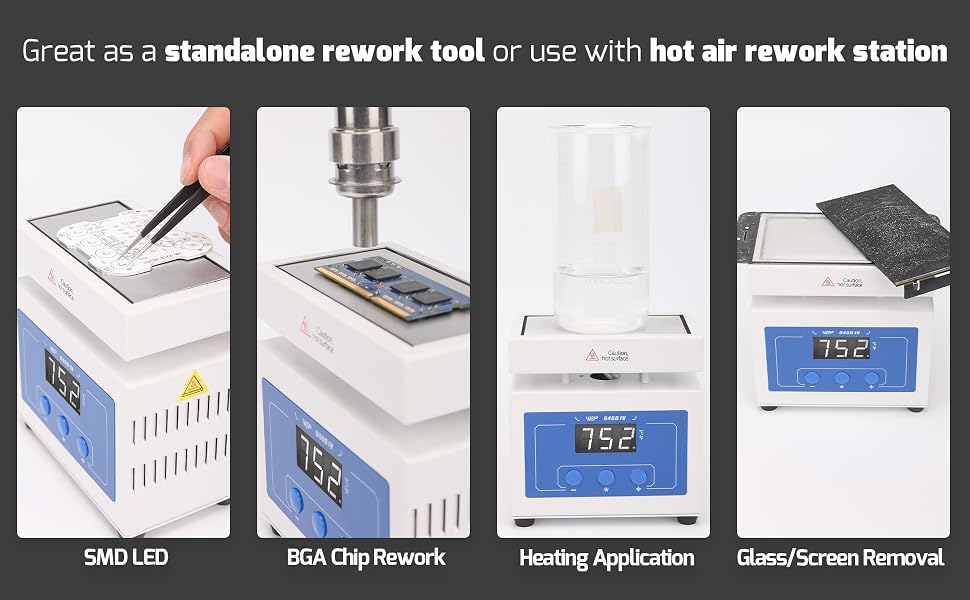

The 946D-IV rework preheater is used to remove SMD LED diode, BGA chip components, etc.

Specifications

Model number	WEP 946D IV
Rated Voltage	110V-127V~, 60Hz
Rated Power	210W

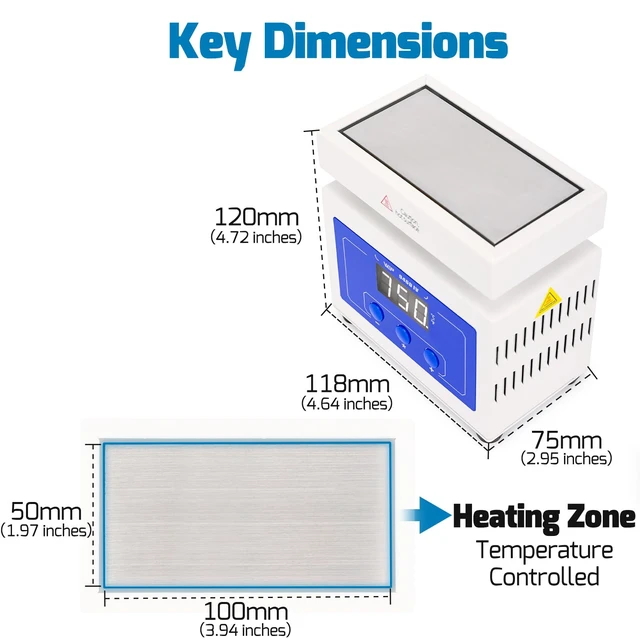

Main Unit Dimensions	L4.64×W2.95×H4.72in ±0.2in
Operating Ambient Temperature	0°C~40°C/32°F~104°F

Dimensions (Aluminum Panel)	L3.94×W1.97in ±0.1in
Temperature Range	50°C~400°C/122°F~752°F
Display	LED Nixie Tube
Panel to Ground Resistance	<2 Ohms
Temperature Control	PID Temperature Control & Stabilization Program
