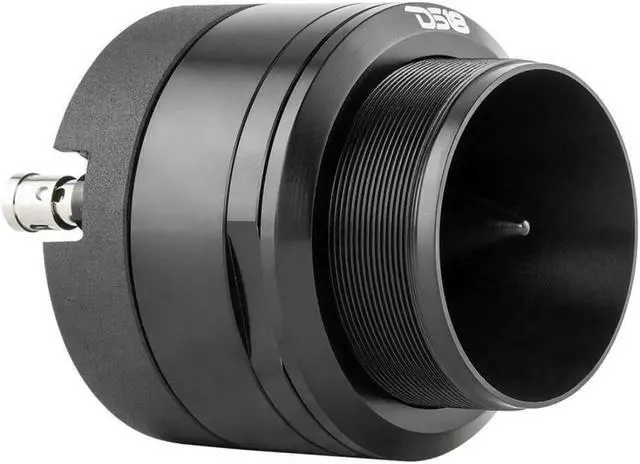

DS18 PRO-TW920 1.4" 320W Peak 4-Ohm Neodymium Super Bullet Car Tweeter (Single)

BRAND NEW

DS18 PRO-TW920

1.4" 320W Peak 4-Ohm Neodymium Super Bullet Car Tweeter (Single)

Key Features:

• 2.7" High Compression Super Bullet Tweeter
• RMS Power: 160 Watts(320 Watts Peak)
• Impedance: 4 Ohm ~ 106db
• Neodymium Magnet
• Adjustable Surface Mount
• Single

General Specs:

• SKU: PRO-TW920
• Nominal Diameter: 2.7"-3.5"
• Nominal Impedance: 4 Ohm
• AES Power Handling: 80W
• Program Power Handling: 160W
• Peak Power Handling: 320W
• Sensitivity (1w/1m): 106dB
• Frequency Response: 700Hz-20kHz
• Recommended Hi Pass Crossover: 2KHz
• Sold In Pair or Single: Single

Body/Features:

• Filter (Bass Blocker): 4.7uf/50v (included)
• Body Material: Aluminum
• Body Color / Finish: Anodized Black
• Bullet Material: CNC Aluminum

Motor Features:

• Voice Coil Diameter: 1.4" / 35.5mm
• Voice Coil Former Material: KSV
• Winding Material: CCAR
• Diaphragm Material: Titanium
• Magnet Material: Neodymium
• Magnet Size: 1.38" x 0.27"

Measurements:

• Overall Diameter: 2.72" / 69.2mm
• Overall Depth: 3.01" / 76.6mm
• Front Mount Baffle Cutout: 2" / 51.8mm
• Mounting Depth: 2~2.7" / 52~70mm
• Gross Single Unit Weight (lb): 2
• Single Unit Box Dimensions W x L x H (Inches): 3.5 x 3 x 3.25
