STEP 1
Connect 800W Alternator Charger to battery to enjoy a carefree power experience during journey

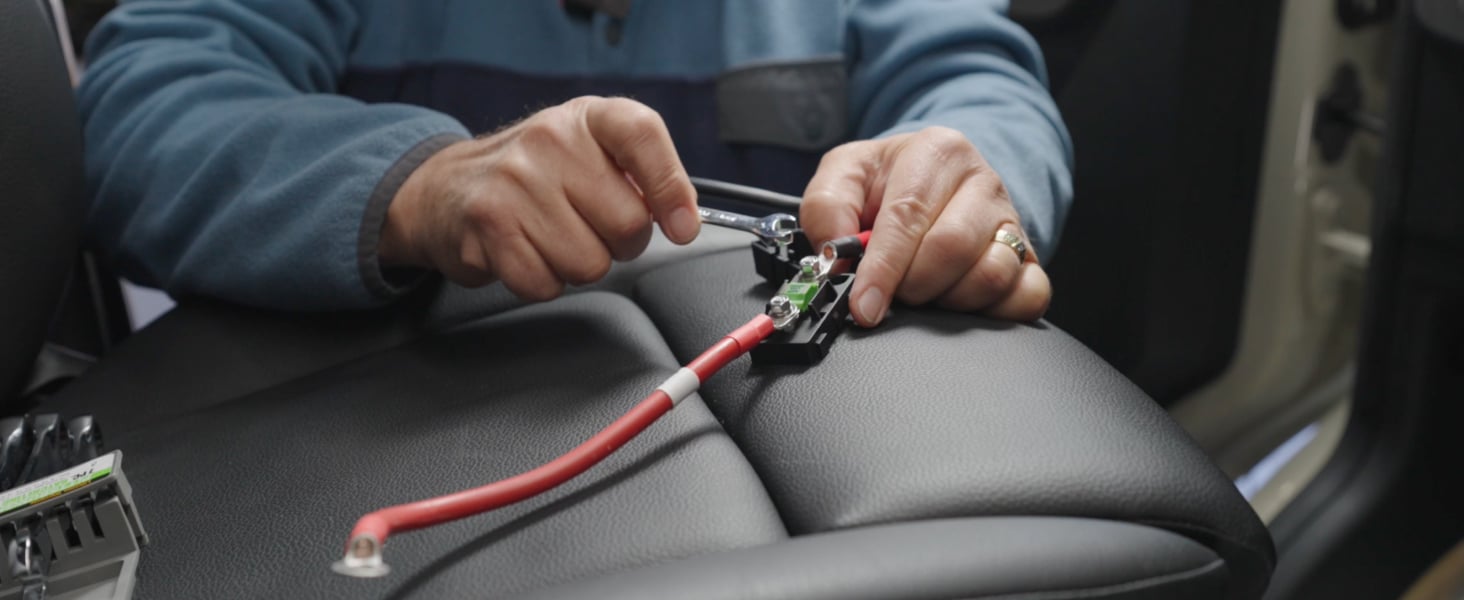

STEP 2

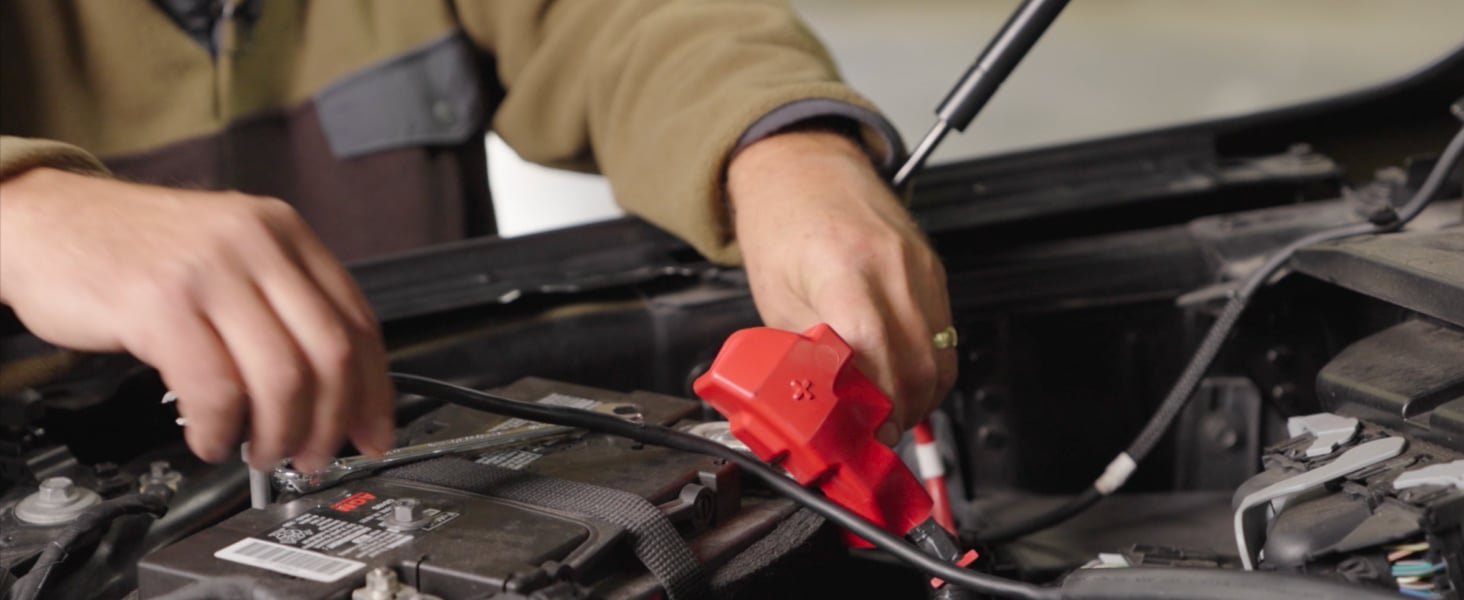

Connect the fuse cable to the vehicle battery on the other end.
STEP 3

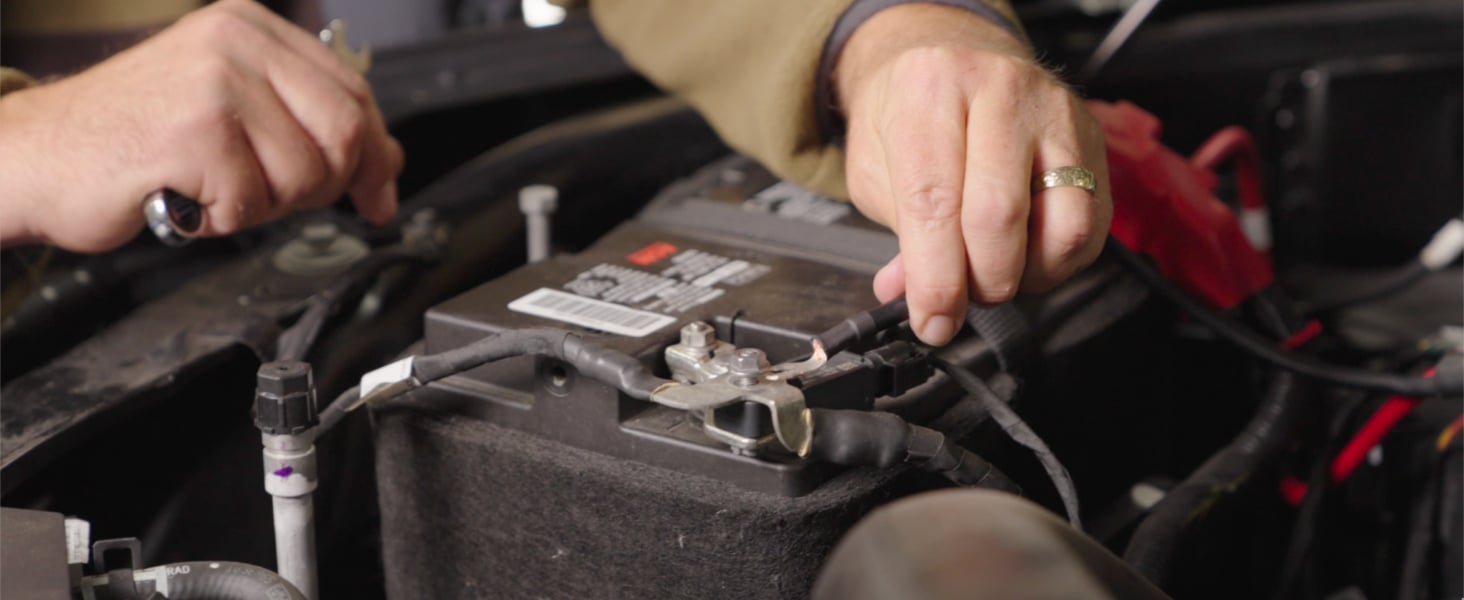

Connect the black cable to the chassis terminal.

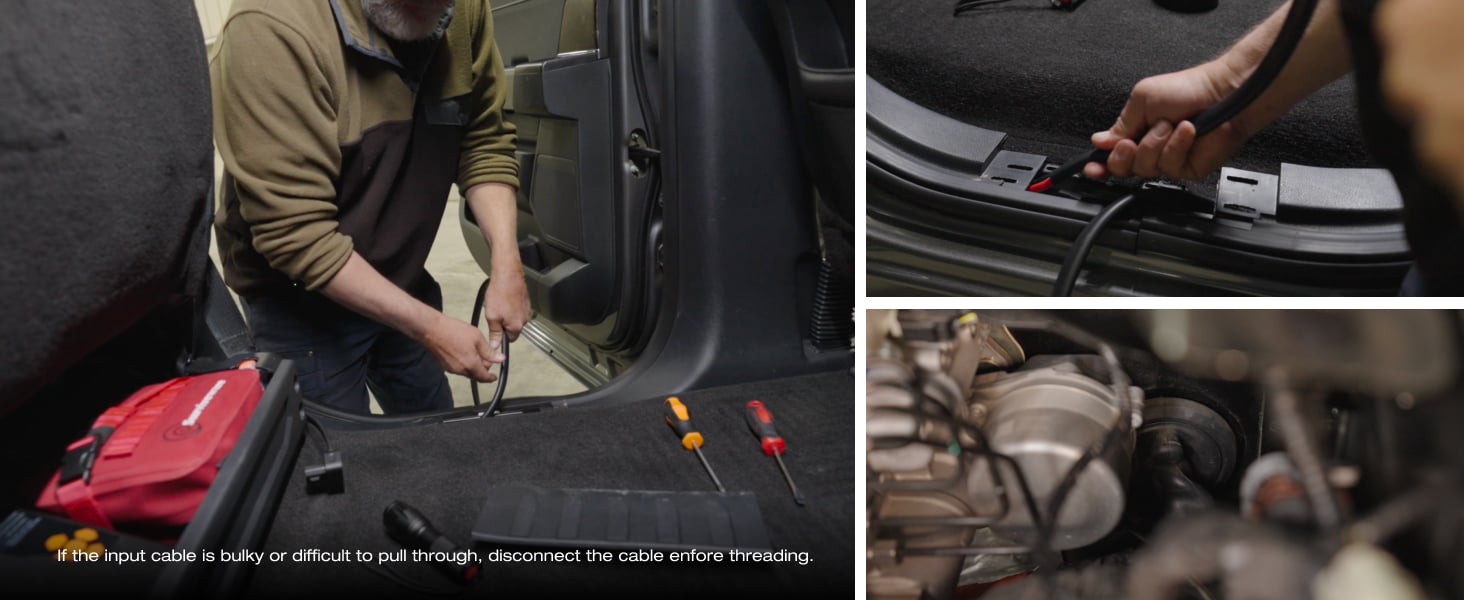

STEP 4
Thread the other end of the input cable through the car body towards the charger.

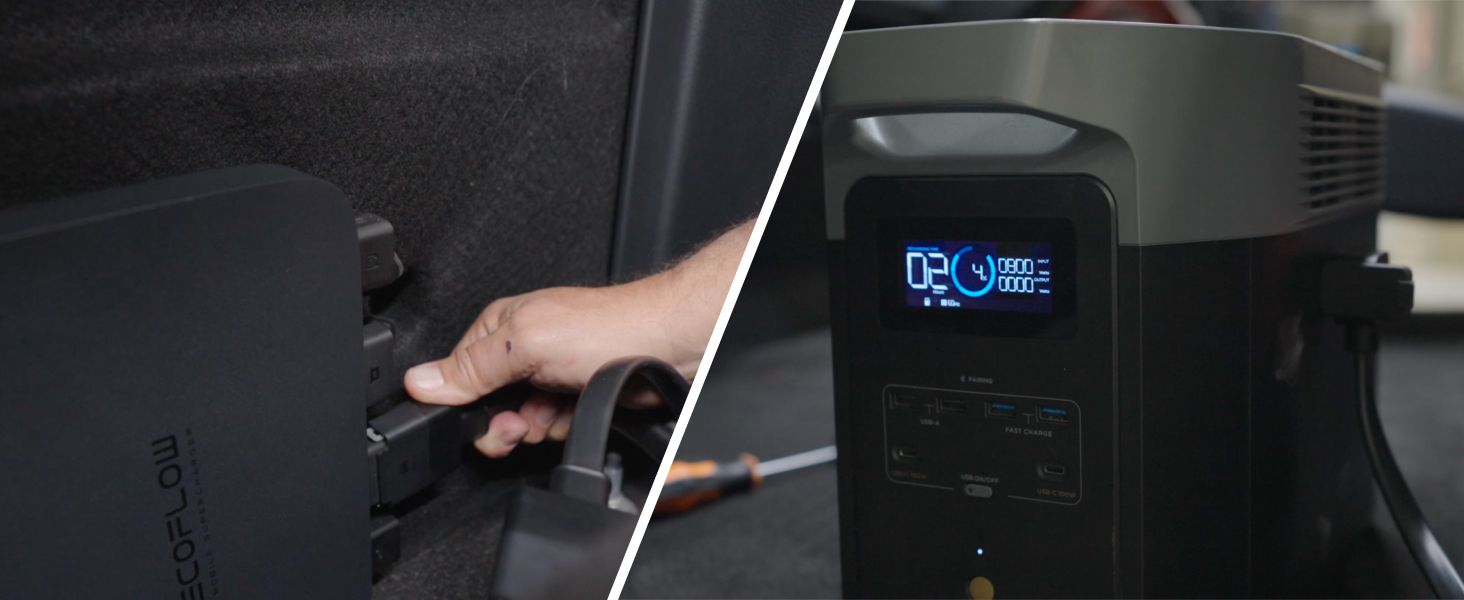

STEP 5&6
Plug the other side of the input cable into charger and the output cable of the charger to the PPS.
| Net Weight | 5.1 lb (2.3 kg) |
|---|---|
| Wi-Fi | Frequency: 2412MHz-2472MHz Maximum output power: <20dBm |
| Bluetooth | Frequency: 2402MHz-2480MHz Maximum output power: <10dBm |
| Reverse Charging Mode | Input: 40V-60V, 21A Max. Output: 13.8V/27.6V, 800W Max. |
| Operating Temperature | -4°F to 140°F(-20°C to 60°C) |
| Operating Humidity | <=95% |
| Protection Type | Reverse polarity protection Overcurrent protection Short circuit protection Overvoltage protection Undervoltage protection |
| Dimensions (W × D × H) | 9.5×7.6×1.4 in(242×194×35 mm) |
|---|---|
| Charging Mode | Input: 11V-31V, 76A Max. Output: 40V-60V, 800W Max. |
| Battery Maintenance Mode | Input: 40V-60V, 3A Max. Output: 13.8V/27.6V, 100W Max. |
| Fuse's Rated Current | 125A |
| Storage Temperature | -22°F to 158°F(-30°C to 70°C) |
| Storage Humidity | <=95% |
