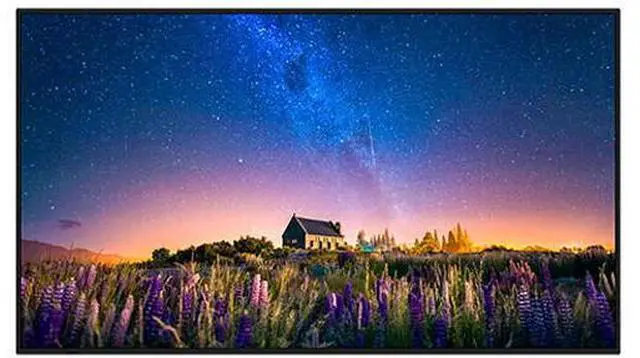

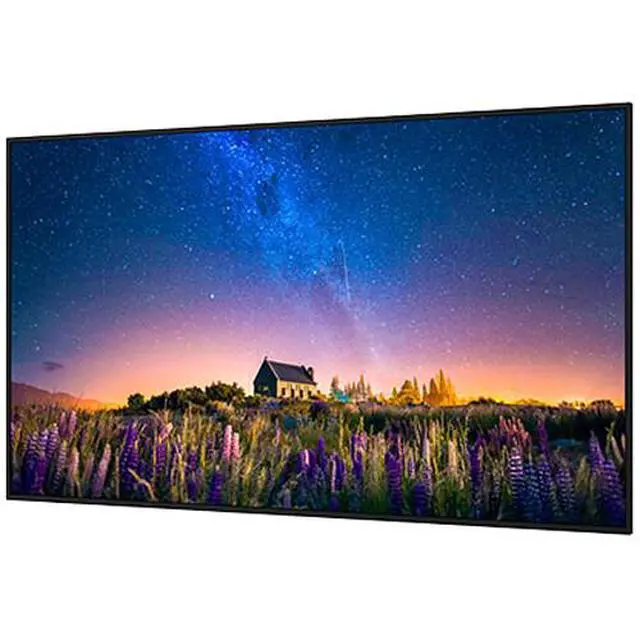

Sharp 65" UHD 4K Commercial Monitor Model PN-M652

Create reliable digital signage with the Sharp PN-M652 65" UHD 4K Commercial Monitor. Boasting a 550-nit bright, factory-calibrated, anti-glare panel for eye-catching indoor displays, along with full external control support, the PN-M652 is well suited to applications in corporate, higher education, restaurant, retail, and grocery store environments.

This UHD 4K monitor features a media player with USB playback, portrait and landscape orientation, and 24/7 operability built into a rugged full-metal chassis. Robust connectivity and daisy-chain functionality allow for easy single and multi-display content distribution. Sources can be connected via HDMI 2.0, DisplayPort 1.4, and USB-C inputs. Control is possible via RS-232 protocol, or through LAN connectivity with free Sharp NaViSet Administrator 2 software and support for third-party systems like Crestron and AMX.

Consistent Color with SpectraView Engine

Pre-calibrated for luminance, white point, gamma, and uniformity, every PN-M display features SpectraView Engine Technology and is ready to go, right out of the box. Want deeper control? Through the SpectraView Engine, dial in white point with adjustments of 100k, select brightness based on luminance level, or even input your own CIE color coordinates, giving users capabilities like never before. Additionally, backlight stabilization keeps your visuals looking fresh longer.

Smarter Daisy Chaining & Multi-Display Sync

Connect up to four independent displays from one source thanks to DisplayPort 1.4 connectivity and HBR3 capabilities with Multi-Stream Transport (MST). MST capabilities can drive up to four independent displays from a single DisplayPort source by multiplexing several video streams into a single stream and sending it to the display that then acts as a branch device to demultiplex the signals into the original streams. This is ideal for menu boards, video walls, and synchronized signage. Additionally, the display can daisy chain the LAN connection, which allows for the pass-through of RS-232C, TCP/IP, and IR communications. This gives you the ability to control full arrays of displays remotely or via the IR remote control, streamlining the ease of use.

Power, Connect, ControlSimplified

Each PN-M product features an integrated USB hub, with a USB-C input that supports both DP-Alt mode and upstream data transfer. It includes two downstream USB ports (one USB-A and one USB-C) for connecting and managing peripherals. This built-in hub reduces the need for additional equipment, lowering overall setup costs. Additionally, the USB-C input provides 65W of Power Delivery, enabling devices like laptops to charge directly from the display, making this well suited for huddle spaces and presentation environments.

Commercial Toughness You Can Trust

A full-metal chassis, carrying handles, and an active cooling system mean it's ready for harsh environments without compromising the sleek design. Integrated temperature sensors keep your brightness consistent without thermal dimming, so your content stays front and center, even in the harsher conditions found in commercial environments.

Built for Flexibility

The MultiSync PN-M Series is modular by design, ready to integrate Intel Smart Display Modules (SDM-L/SDM-S) and Raspberry Pi Compute Module 4 for embedded intelligence without external gear or messy cabling. Through clever mechanical and electrical design, the PN-M Series allows for sleek all-in-one intelligence and interoperability in a small form factor setting, giving you everything you need for digital signage applications while also offering the ability to enhance your screen through multiple integrated professional technologies.

Smart Input Prioritization

Auto-switch between up to three prioritized inputs or power on with a live signal. If a primary source goes down, the display will automatically switch to whatever is prioritized next. The first detection option also allows the display to automatically switch to any source that plugs into it, allowing the display to wake on any synced signal.

NaViSet Administrator 2

Remotely manage all your Sharp or NEC displays from a single, centralized dashboard using NaViSet Administrator 2. Perfect for multi-display setups, this free tool lets you monitor status, automate tasks, generate reports, and make on-demand changes from anywhere. Want even more power? Upgrade to the Server Edition for enhanced features and full remote access across your ecosystem.
