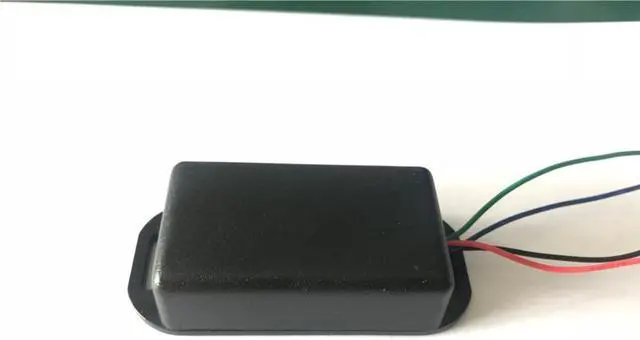

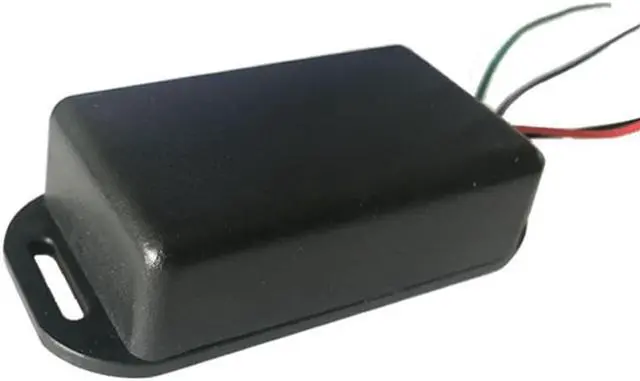

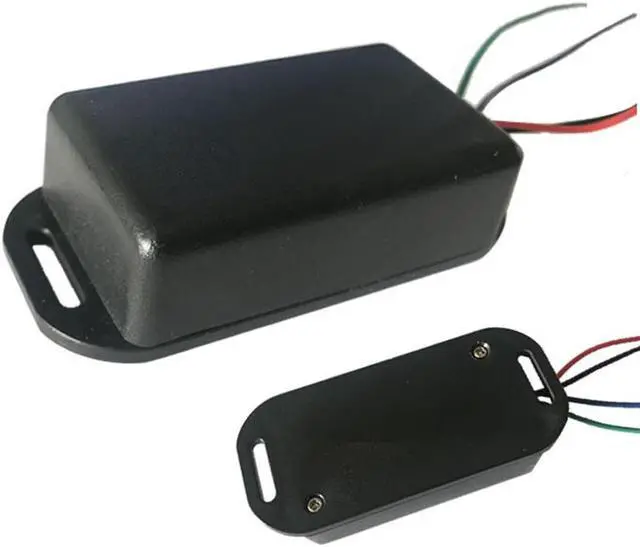

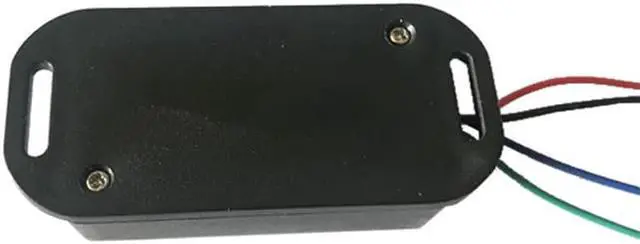

Acaigel Car Fuel Gauge Interface Module Ohm Converter Connect Any Sender To Fuel Gauges
Limited time offer, ends 02/05 By youer_supermarket
- Top quality products: The quality of the products can be guaranteed to the greatest extent, because we have our own production warehouse. Products can be tested for quality before they leave the factory.
- High-quality distribution logistics: Our delivery warehouse is in the United States. The logistics method used is a local first-level logistics service provider in the United States. From the moment you place the order, it will be collected within 24 hours. You can receive your package within 3-5 working days.
- Timely after-sales service: Whether you have any questions about the logistics provider or product quality, you can contact me at any time. As long as the product is unused, you can return it to our warehouse in New Jersey. We serve you wholeheartedly 24 hours a day.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Fuel Gauge Interface Module Ohm Range Converter for Any Fuel Gauges to Match Specific Ohm Range
Note:FM102input signal from fuel sensorVoltageoutput signal to fuel gaugeOhm Resistance
Fuel Gauges are designed to work with a specific ohm range. Different automobile and gauge
manufacturers use different ohm ranges to correctly operate their gauges. This can cause
problems for a person who is updating their vehicle with new gauges or a new gas tank and
fuel sender.
This module will allow you to use your stock sender with any fuel gauge and vice versa.
Features
1. Acts as Interface Between Fuel Senders & Gauges
2. Reads any fuel sender
3. Works with any fuel gauge
4. Accurately Corrects OHM Mismatch & Erratic Movement from Fuel Slosh
5. Custom Calibration for empty, half level and full
6. Mini Size 20(w) x 16(H) x35(L) mm
Instructions
1. Instructions
1/Mount module in a clean dry cool position.

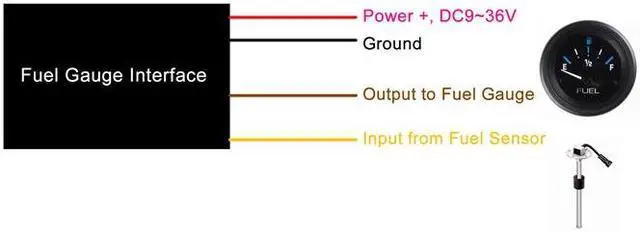

2/Connect wires as guide photo above
3/Using store mode,program and store Full,Half,Empty and Power on positions.
4/Using power on mode,program how you want the gauge to operate when car is started.
5/Operated in run mode and check.
IMPORTANT NOTICE
When adjusting the screw, move gauge from Full to Empty to avoid hysteresis error.
Some gauges are very slow to move. Please allow time to stabilize.
The tank sender must have the same Ground as FM102 , otherwise erratic readings will result.
FM102 will convert input voltage signal to a target resistance signal,It can directly connect to our ultrasonic oil sense and send the oil level information to the oil level gauge
The Full,Half,and Empty position can be programmed.
Thein-between positions between F,1/2,and E are calculated by the microprocessor and are linear.
Thepower on gauge start position is selected from either the sender position or the programed position.
The output is a npn pulse width modulated signal which may causebuzzingin undamped gauges.
Note
Model
Input Signal from Sensor
Output to Fuel Gauge
FM101
Ohm Resistance
Programmable Ohm Resistance
FM102
Voltage 0~10V
Note:FM102input signal from fuel sensorVoltageoutput signal to fuel gaugeOhm Resistance
Fuel Gauges are designed to work with a specific ohm range. Different automobile and gauge
manufacturers use different ohm ranges to correctly operate their gauges. This can cause
problems for a person who is updating their vehicle with new gauges or a new gas tank and
fuel sender.
This module will allow you to use your stock sender with any fuel gauge and vice versa.
Features
1. Acts as Interface Between Fuel Senders & Gauges
2. Reads any fuel sender
3. Works with any fuel gauge
4. Accurately Corrects OHM Mismatch & Erratic Movement from Fuel Slosh
5. Custom Calibration for empty, half level and full
6. Mini Size 20(w) x 16(H) x35(L) mm
Instructions
1. Instructions
1/Mount module in a clean dry cool position.
2/Connect wires as guide photo above
3/Using store mode,program and store Full,Half,Empty and Power on positions.
4/Using power on mode,program how you want the gauge to operate when car is started.
5/Operated in run mode and check.
IMPORTANT NOTICE
When adjusting the screw, move gauge from Full to Empty to avoid hysteresis error.
Some gauges are very slow to move. Please allow time to stabilize.
The tank sender must have the same Ground as FM102 , otherwise erratic readings will result.
FM102 will convert input voltage signal to a target resistance signal,It can directly connect to our ultrasonic oil sense and send the oil level information to the oil level gauge
The Full,Half,and Empty position can be programmed.
Thein-between positions between F,1/2,and E are calculated by the microprocessor and are linear.
Thepower on gauge start position is selected from either the sender position or the programed position.
The output is a npn pulse width modulated signal which may causebuzzingin undamped gauges.
Note
Model
Input Signal from Sensor
Output to Fuel Gauge
FM101
Ohm Resistance
Programmable Ohm Resistance
FM102
Voltage 0~10V
