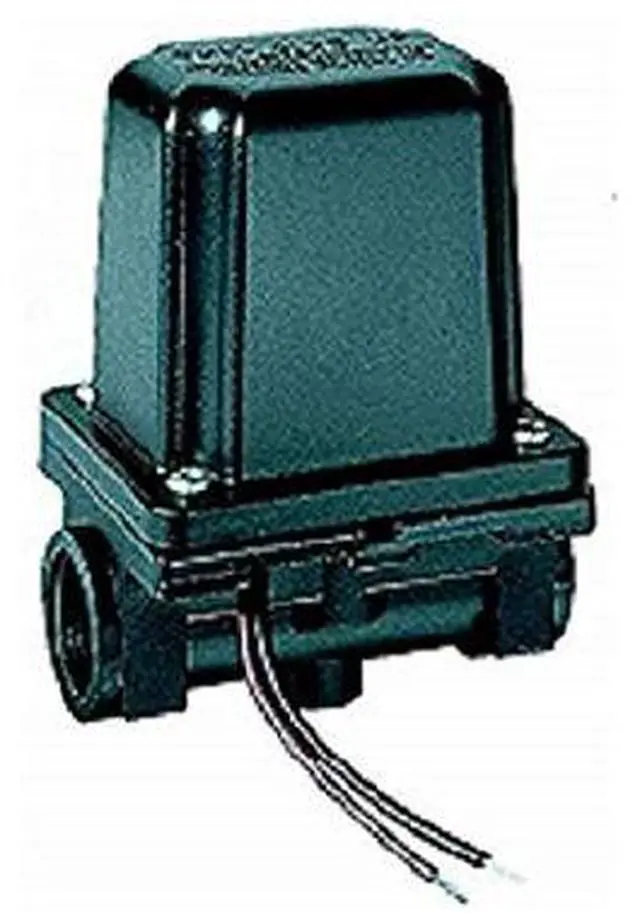

TeeJet Electric Regulating Butterfly Valve w/ 3/4" Ports Max 100 PSI 12 Volt DC
- Unrestricted flow when fully open, with a 5 PSI (0.34 bar) pressure drop for a 28.4 GPM (107 l/min) flow. Bypass flow rate: 2 GPM (7.5 l/min) at 10 PSI (0.7 bar). Operates in a 12 VDC system and can be controlled by a double-pull double-throw spring-centered switch. Equipped with a two-wire lead for use in a 12 VDC system. 3/4 inch (F) NPT or BSPT connections. Simple installation (flows in either direction). Offers good corrosion resistance. Low current draw (0.10 AMP). 20-second response time. Electric Regulating Butterfly Valve. Color: Black. Part numbers: 244C, 878-AA244C-3/4, 878AA244C34, 2334878-AA244C-3/4, AA244C-3/4, 35-50049
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Unrestricted flow when fully open, with a 5 PSI (0.34 bar) pressure drop for a 28.4 GPM (107 l/min) flow. Bypass flow rate: 2 GPM (7.5 l/min) at 10 PSI (0.7 bar). Operates in a 12 VDC system and can be controlled by a double-pull double-throw spring-centered switch. Equipped with a two-wire lead for use in a 12 VDC system. 3/4 inch (F) NPT or BSPT connections. Simple installation (flows in either direction). Offers good corrosion resistance. Low current draw (0.10 AMP). 20-second response time. Electric Regulating Butterfly Valve. Color: Black. Part numbers: 244C, 878-AA244C-3/4, 878AA244C34, 2334878-AA244C-3/4, AA244C-3/4, 35-50049
