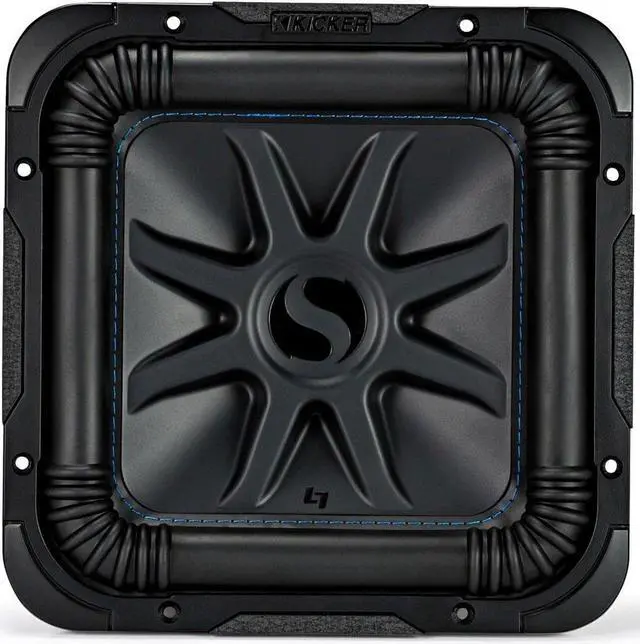

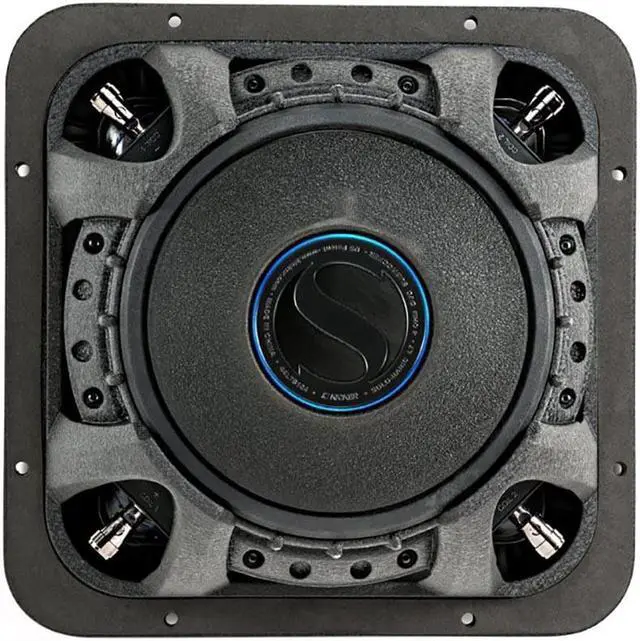

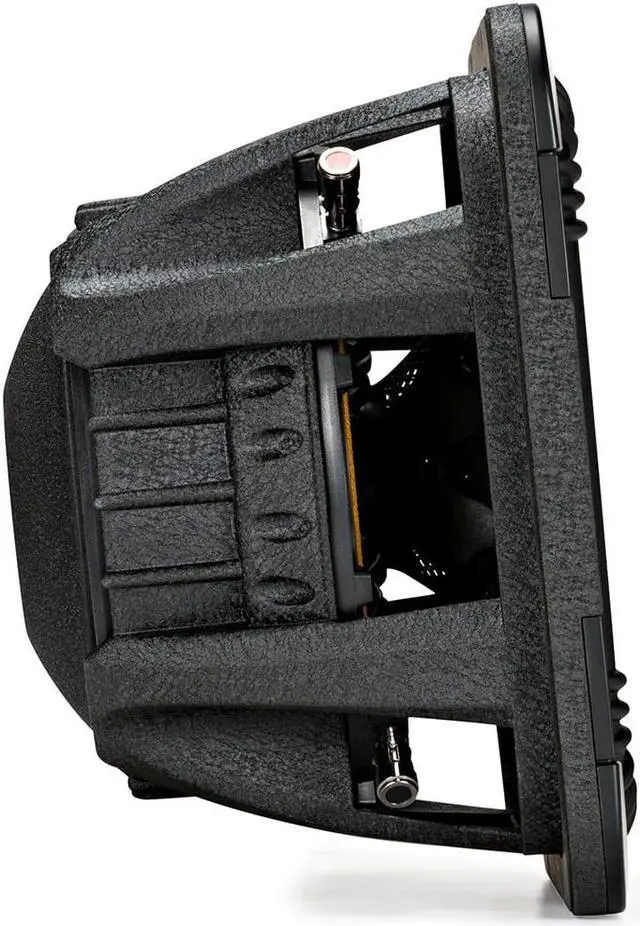

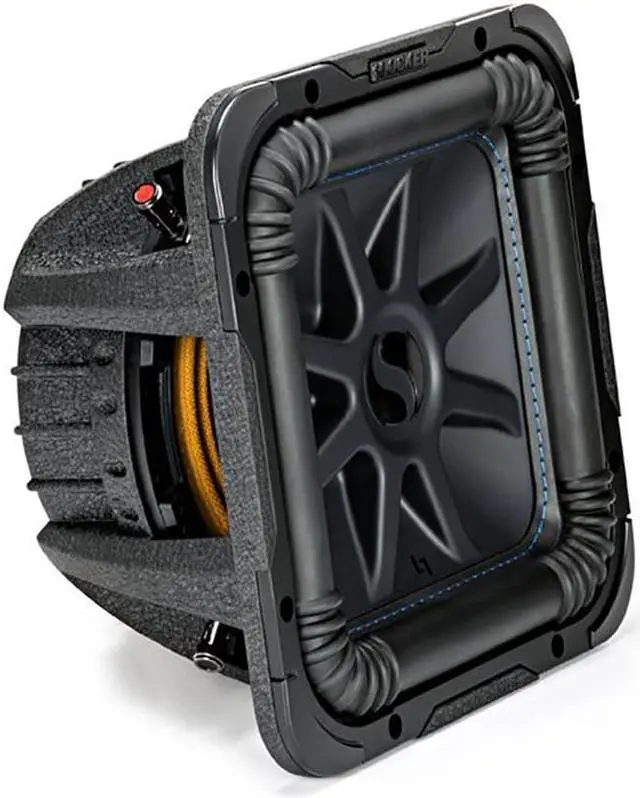

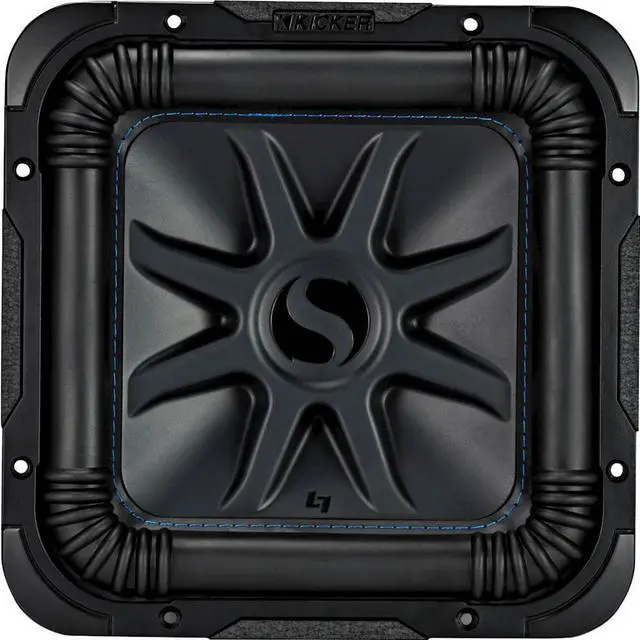

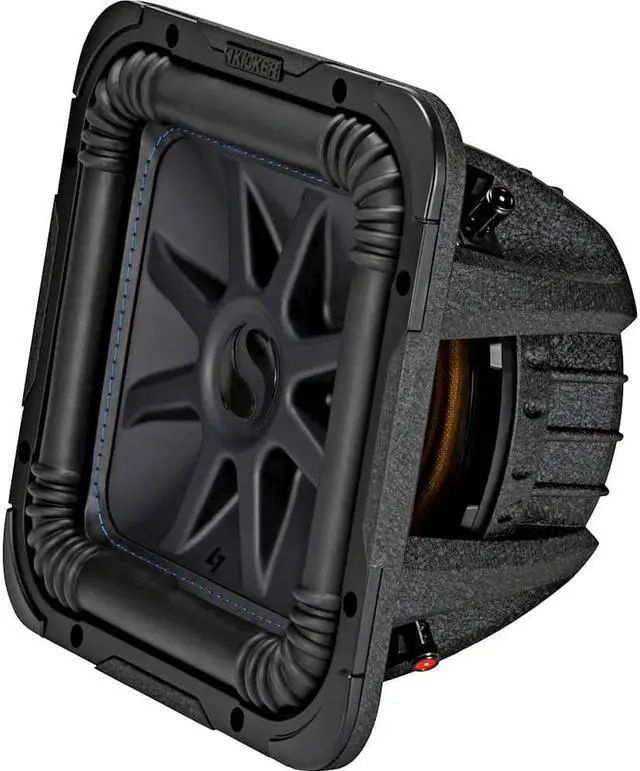

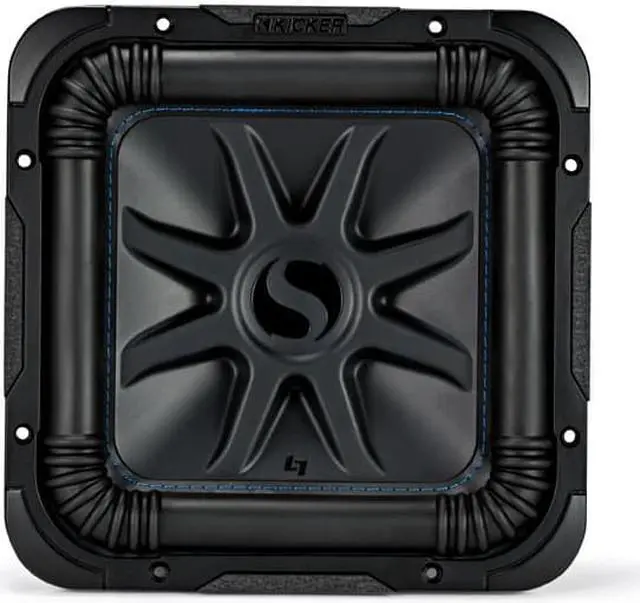

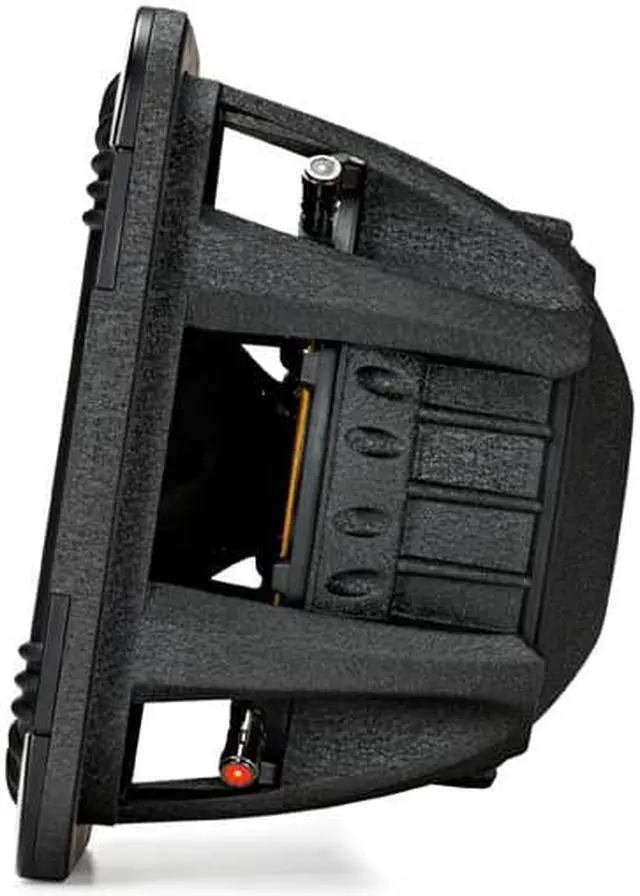

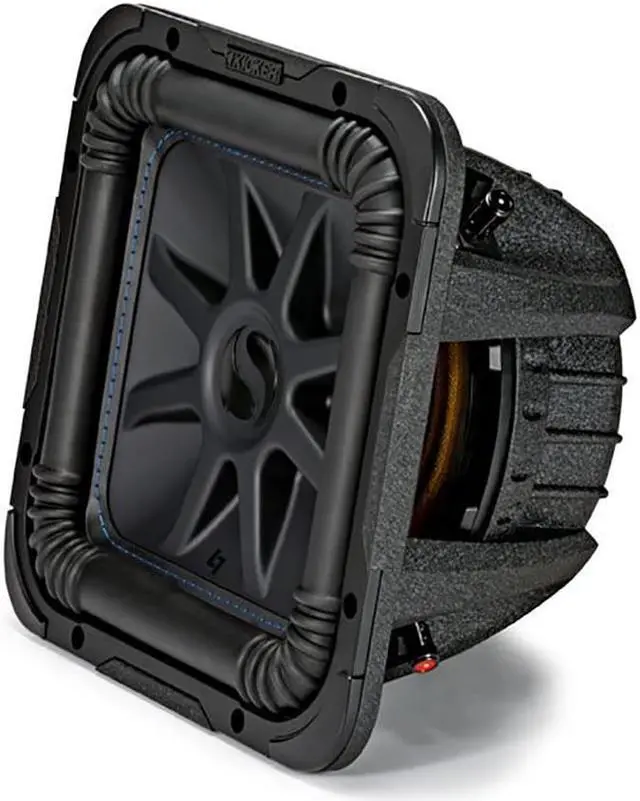

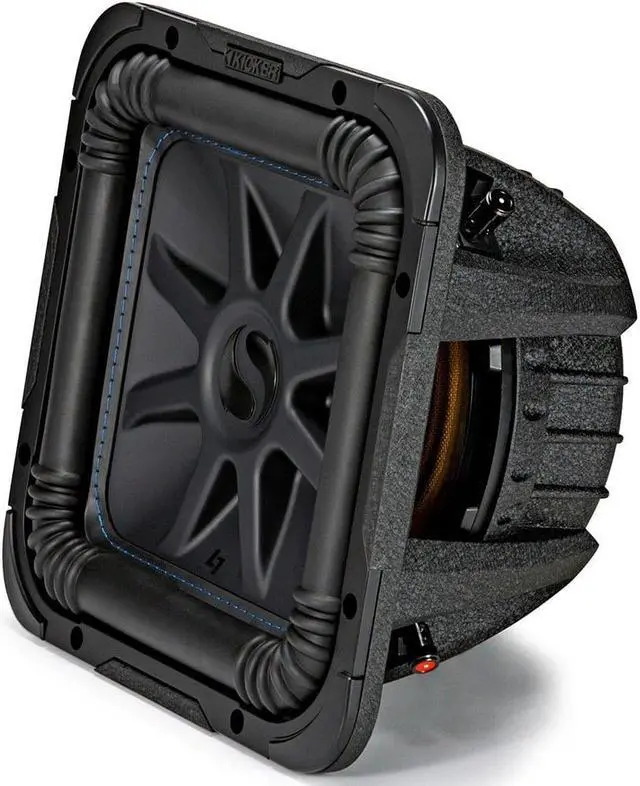

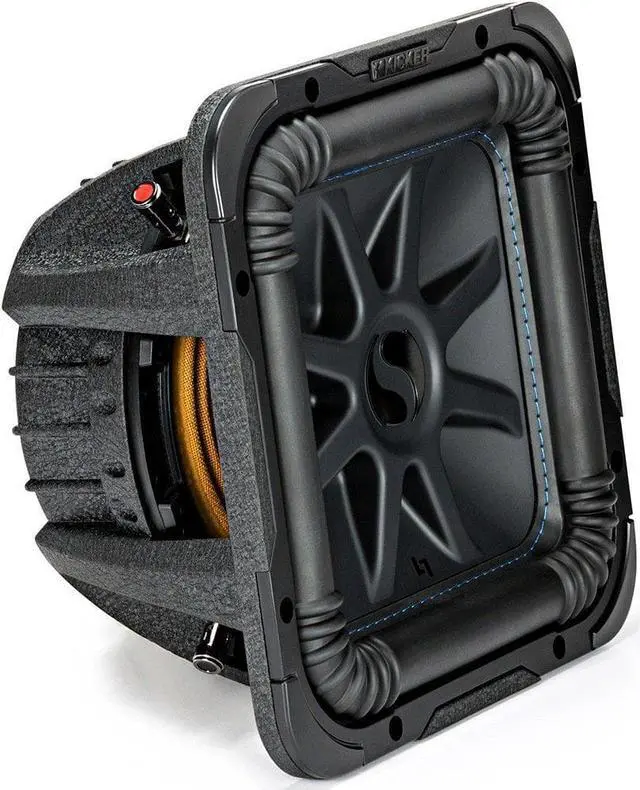

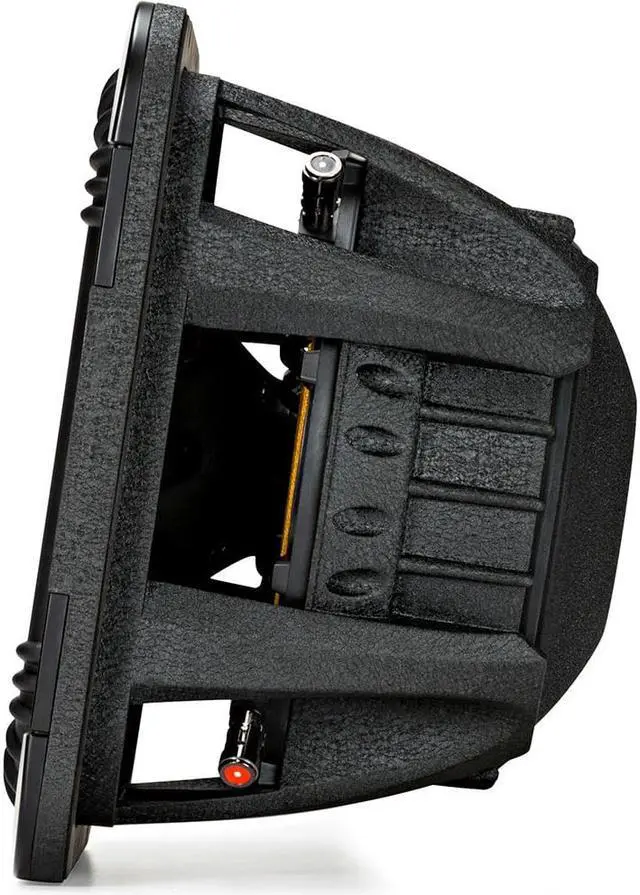

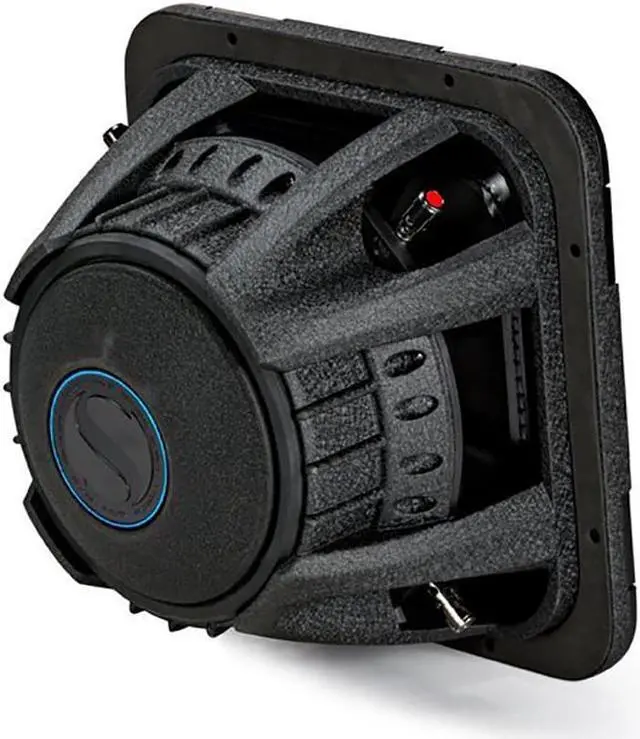

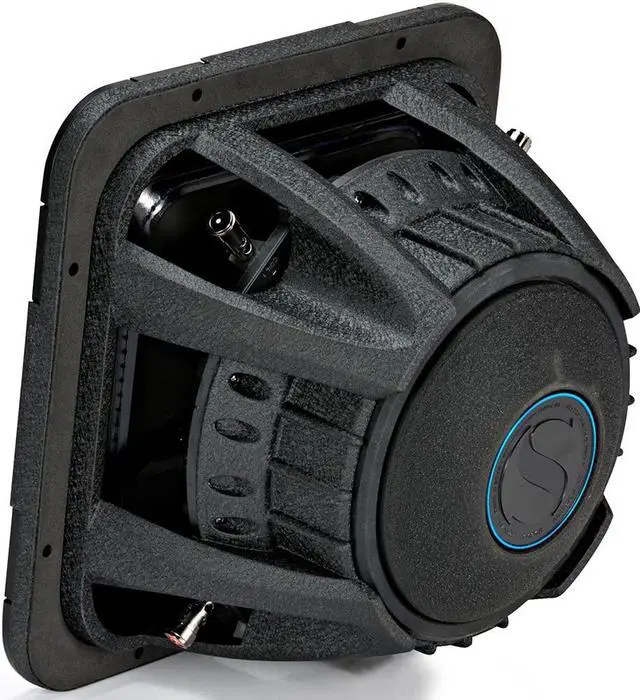

Kicker L7S104 L7S 10" Subwoofer Dual Voice Coil 4-Ohm 600W

Square Matters The Solo-Baric's cutting-edge, square-sub design means more cone area, more air displacement and more volume than a round woofer.

Features:

Dual Four-Ohm Voice Coils
Injection-Molded Polypropylene Cone
Patented Corner Ribs Minimize Distortion
Solo
Kon™ 360-Degree Back Bracing
Ribbed Santoprene Surround With Blue Surround Stitching
Uni
Plate&trde; Black Plate And Pole Piece, Plus Perimeter Venting For Excellent Thermal Management
Thick Tinsel Leads
Large Ceramic Magnet
Cast Aluminum Basket
Satin-Nickel Plated, Spring-Loaded Speaker Terminals


*The Solo-Baric L7S 10-Inch Subwoofer works best with a sealed or ported enclosure and 600 watts of recommended power. See below for m
ore details.
Specifications
Size (IN., CM)
10, 25.4
Impedance (OHMS)
4 DVC
Max Rec Amplifier Power (WATTS PEAK/RMS)*
1200/600
Sensitivity (dB 1w/1m)
86.8
Frequency Response (Hz)
24-100
Mounting Depth (IN., CM)
6-1/4, 15.9
Mounting Cutout, Square (IN., CM)
9-5/16, 23.7
Min Rec Sealed Box Volume (CU. FT., Liters)
. 66, 18.7
Max Rec Sealed Box Volume (CU. FT., Liters)
1.0, 28.3
Min Rec Vented Box Volume (CU. Ft., Liters)**
1.25, 35.4
Max Rec Vented Box Volume (CU. Ft., Liters)**
2.25, 63.8
